4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter

4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter

  • High Light

    4000mm paper roll rewinding machine

    ,

    50gsm paper roll rewinding machine

    ,

    30mm thermal paper slitter

  • Type
    Automatic
  • Condition
    New
  • Size
    4000*1700*1600mm
  • Weight
    1500 Kg
  • Application
    ATM Roll, Receipt Roll, Cash Roll
  • Warranty
    1 Year
  • Packing
    Wooden Box
  • Voltage
    380V, 220V
  • Certification
    CE, ISO9001, BV, ISO
  • Speed
    150times/min
  • Function
    Slitting Rewinding JUMBO Paper Roll
  • Rewind Diameter
    160MM
  • Unwind Diameter
    1000mm
  • Power
    2200 W
  • After-sales Service
    Engineers Available To Service Machinery Overseas
  • Product Name
    Paper Cutting Machine
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS
  • Model Number
    900mm
  • Minimum Order Quantity
    1 set
  • Price
    16000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    20-30 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 sets per month

4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter

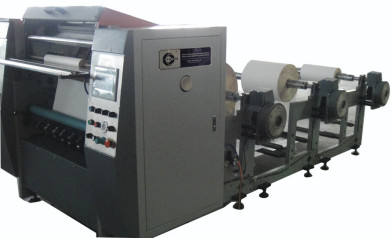

900mm Fully Automatic THERMAL PAPER Slitting Machine in China







DESCRIPTION



FOCUS brand Thermal paper slitting machine and printing machine is one of the advanced equipment used for slitting and printing thermal paper, cash register paper, ATM Paper and other paper less than 250gsm. It is flexo printing and slitting, automatic paper-cutting, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency conversion speed regulation and full pneumatic operation, accurate cutting, good printing effect and reliable performance.





Technical Data



Items

Parameters

Max. Parent Web Width

900mm

Max. Parent Web Diameter

1000mm

Max. Rewinding Diameter

180mm

Min. Slitting Width

30mm

Jumbo Roll Core Diameter

76mm

Core Shaft Diameter

ф8-ф50mm

Thickness Range

50-250gsm

Max. Machine Speed

0-120m/min

Air Pressure

0.6Mpa

Frequency Inverter Motor

380V/50HZ/2.2KW

Overall dimension

2500*1600*1600mm

Weight

1500kg

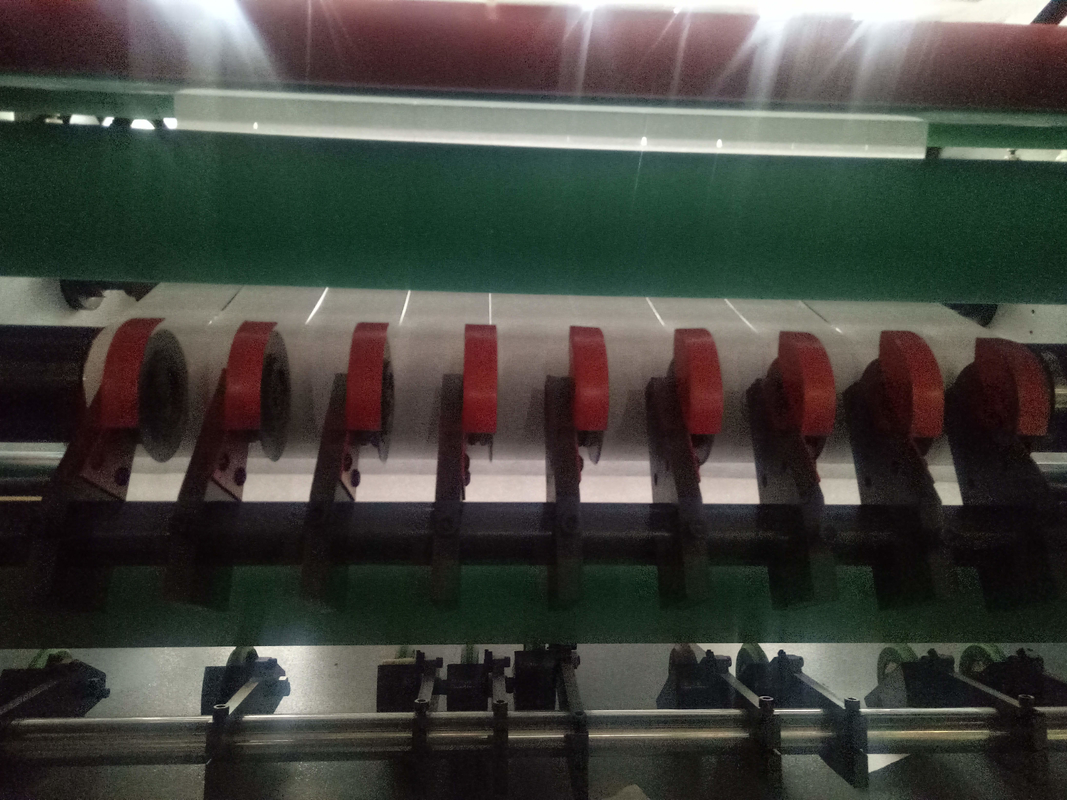

Adopting surface rewinding system and SIEMENS PLC and touch screen automatic control system. You only need to input the material roll meter, then PLC will give a proper parameters for machine running automatically. All the parameters are displayed on the monitor.



4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 04000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 14000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 2

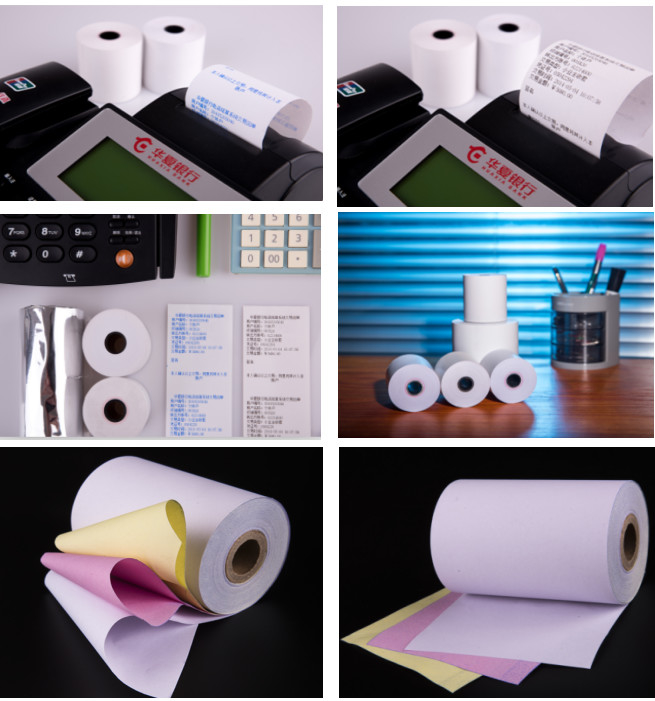

APPLICATION

Thermal Paper POS Roll

Thermal Paper ATM Roll

4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 3



4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 4


4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 5

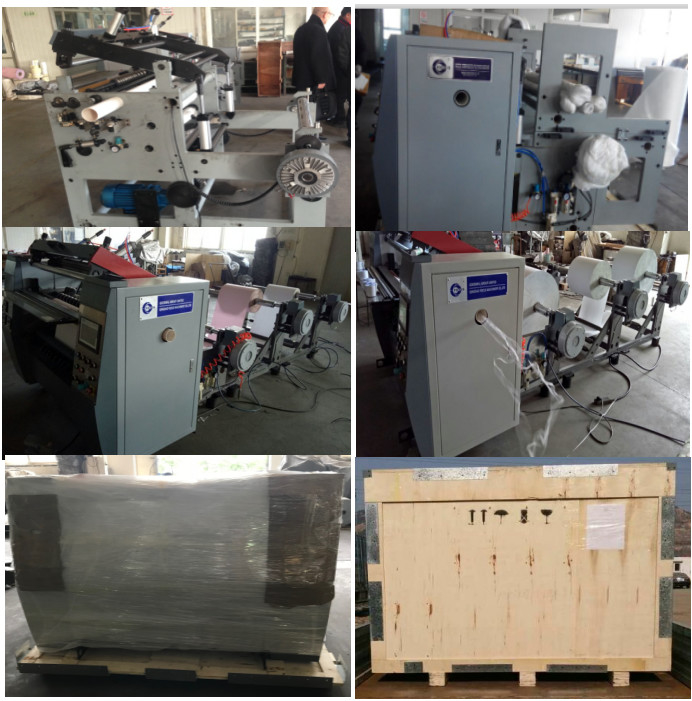

MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE



Packaging Details


The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request



4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 64000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 7





4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 8




WHY CHOOSE US



This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. Its sales around the world have been increasing year by year, and his popularity is getting stronger and stronger.



1. Professional Siemens quality control system

2. Simple operation

3. High degree of automation

4. Turn key projects

5. More than 20 years experience

6. Double working station

7. Super Calendar

8. High capacity, low consumption





4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 9


4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 10

COMPANY INFORMATION
4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 11

SUCCESSFUL MACHINE PROJECTS

4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 124000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 13



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 14



4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 15

CUSTOMER FEEDBACK

4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 16
CERTIFICATE
4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 17

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
4000mm 50gsm Paper Roll Rewinding Machine 30mm Thermal Paper Slitter 18


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
