250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting

250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting

  • High Light

    250gsm paper slitting and rewinding machine

    ,

    160MM paper slitting and rewinding machine

    ,

    ATM paper reel slitting machine

  • Certification
    CE, ISO9001, BV, ISO,slitting Rewinding Machine
  • Type
    Creasing Machine
  • Condition
    New
  • Overall Dimension
    2500*1600*1600mm
  • Weight
    1.9 Tons
  • Application
    ATM Roll, Receipt Roll, Cash Roll
  • Warranty
    1 Year
  • Packing
    Wooden Box
  • Voltage
    380V, 220V
  • Working Speed
    0-120m/min
  • Power
    2200 W
  • Max.rewind Diameter
    160MM
  • Max. Parent Web Width
    900mm
  • Max. Parent Web Diameter
    1000mm
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Model Number
    900mm
  • Minimum Order Quantity
    1 set
  • Price
    16000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    20-30 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 sets per month

250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting

PLC Control Automatic Thermal Paper Slitting Machine ATM Paper Making Mahine







DESCRIPTION



FOCUS brand Thermal paper slitting machine is mainly suitable for slitting all kinds of thermal paper, fax paper, cash register, computer bill, medical record paper, pos printing paper, ATM reel paper, film and self-adhesive paper, etc. It adopted the surface rewinding way, automatic replicate, insert reel. The electric part adopted the most advanced PLC controller. All of the programs are set by the touch screen(PLC). Unwinding is used to automatic loading system, the tension force is controlled by the Programmable Logic Controller, frequency conversion speed regulation and full pneumatic operation, accurate cutting, good printing effect and reliable performance.



Technical Data



Items Parameters
Max. Parent Web Width 900mm
Max. Parent Web Diameter 1000mm
Max. Rewinding Diameter 160mm
Frequency Inverter Motor 2.2Kw
Thickness Range 50-400gsm
Max. Machine Speed 120m/min
Overall dimension 4000*1700*1600mm
Weight 1900kg
Voltage 3 Phase 220V 60HZ or 380V 50HZ





Adopting surface rewinding system and SIEMENS PLC and touch screen automatic control system. You only need to input the material roll meter, then PLC will give a proper parameters for machine running automatically. All the parameters are displayed on the monitor.

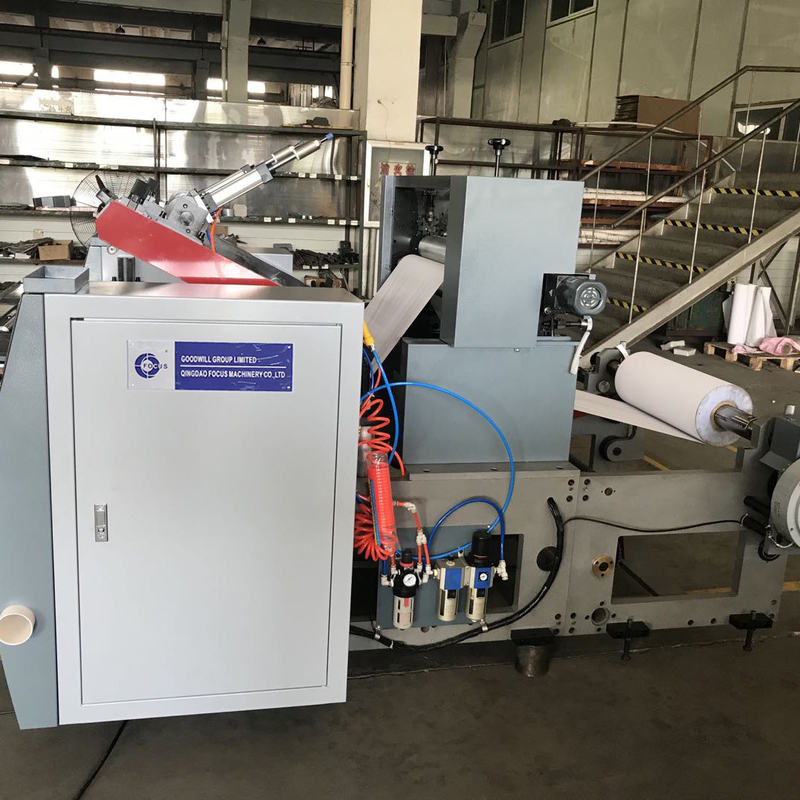

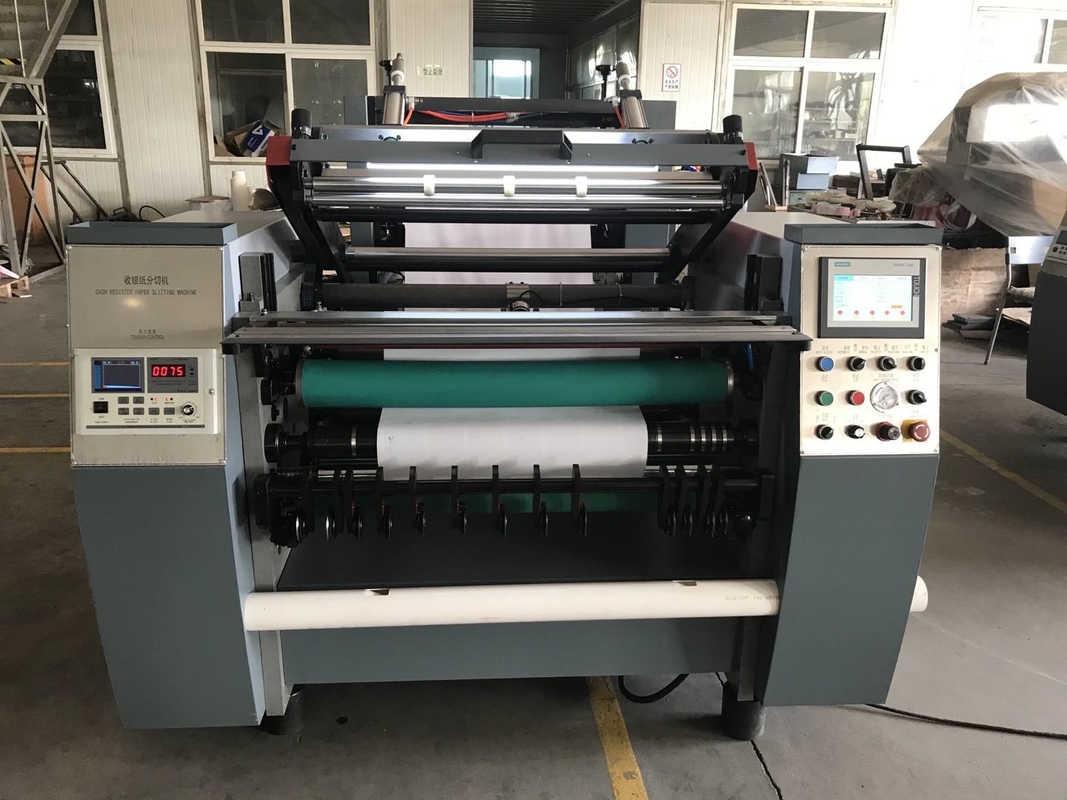

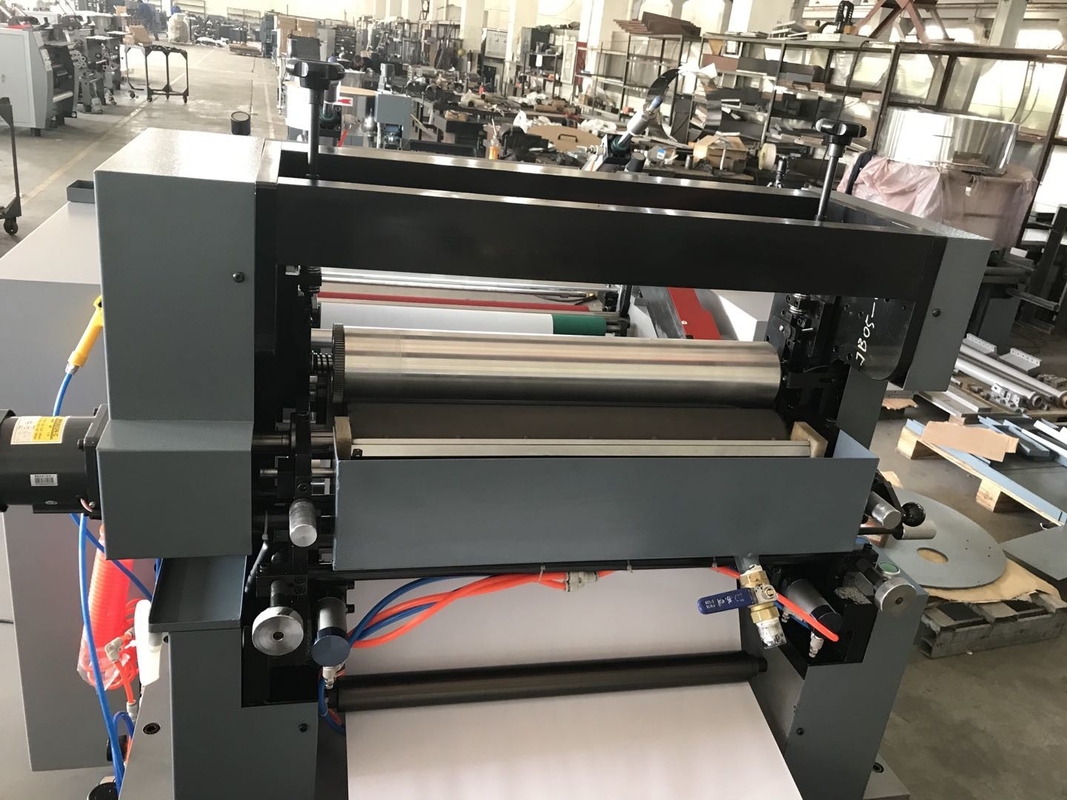

250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 0250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 1250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 2









APPLICATION

Thermal Paper POS Roll

Thermal Paper ATM Roll

250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 3



250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 4


250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 5



MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE



Packaging Details


The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request



250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 6250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 7





250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 8




WHY CHOOSE US



This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. This machine of our brand has been exported to more than 50 countries and has a good reputation all over the world.



1. Professional Siemens quality control system

2. Simple and easy to use operation

3. High degree of automation

4. Check key projects

5. More than 20 years experience

6. Double working station

7. Affordable price and good quality

8. High capacity, low consumption





250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 9


250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 10

COMPANY INFORMATION
250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 11

SUCCESSFUL MACHINE PROJECTS

250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 12250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 13



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 14



250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 15

CUSTOMER FEEDBACK

250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 16
CERTIFICATE
250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 17

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
250gsm 160MM Paper Slitting And Rewinding Machine ATM Paper Reel Slitting 18


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
