1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder

1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder

  • High Light

    1000mm Thermal Paper Slitting Machine

    ,

    2200W Thermal Paper Slitting Machine

    ,

    400gsm jumbo roll slitter rewinder

  • Certification
    CE, ISO9001, BV, ISO,slitting Rewinding Machine
  • Type
    Creasing Machine
  • Condition
    New
  • Overall Dimension
    2500*1600*1600mm
  • Weight
    1.9 Tons
  • Application
    ATM Roll, Receipt Roll, Cash Roll
  • Warranty
    1 Year
  • Packing
    Wooden Box
  • Voltage
    380V, 220V
  • Working Speed
    0-120m/min
  • Power
    2200 W
  • Max.rewind Diameter
    160mm
  • Max. Parent Web Width
    900mm
  • Max. Parent Web Diameter
    1000mm
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Model Number
    900mm
  • Minimum Order Quantity
    1 set
  • Price
    16000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    20-30 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 sets per month

1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder

900mm/ 1000mm Thermal Paper Roll Slitting and Rewinding Machine







DESCRIPTION

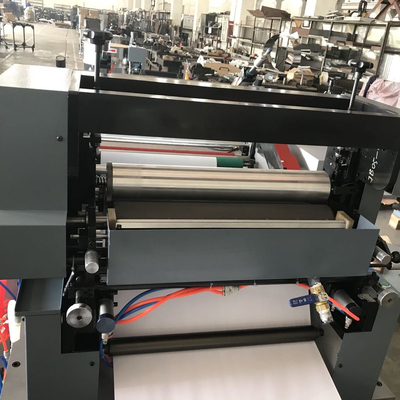

This machine is a kind of small diameter thermal sensitive paper slitting machine developed by our company. It mainly slits fax paper, cash register paper, ATM printing paper, carbonless paper, carbon tape, and other special paper below 250g. The machine is controlled by PLC touch screen, equipped with automatic edge correction device, and the unwinding adopts linear guide rail. Fully automatic constant tension control, equipped with pressure tension sensor. Simple operation and low defective rate (about 5‰). The products are widely used in catering, entertainment, hospitals, banks and other institutions. Bring unlimited business opportunities to customers all over the world.



Technical Data



Items Parameters
Max. Parent Web Width 900mm
Max. Parent Web Diameter 1000mm
Max. Rewinding Diameter 160mm
Frequency Inverter Motor 2.2Kw
Thickness Range 50-400gsm
Max. Machine Speed 120m/min
Overall dimension 4000*1700*1600mm
Weight 1900kg
Voltage 3 Phase 220V 60HZ or 380V 50HZ





Adopting surface rewinding system and SIEMENS PLC and touch screen automatic control system. You only need to input the material roll meter, then PLC will give a proper parameters for machine running automatically. All the parameters are displayed on the monitor.



1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 01000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 11000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 2









APPLICATION

Thermal Paper POS Roll

Thermal Paper ATM Roll

1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 3



1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 4


1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 5



MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE



Packaging Details


The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request



1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 61000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 7





1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 8




WHY CHOOSE US



This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. This machine of our brand has been exported to more than 50 countries and has a good reputation all over the world.



1. Professional Siemens quality control system

2. Simple and easy to use operation

3. High degree of automation

4. Check key projects

5. More than 20 years experience

6. Double working station

7. Affordable price and good quality

8. High capacity, low consumption





1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 9


1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 10

COMPANY INFORMATION
1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 11

SUCCESSFUL MACHINE PROJECTS

1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 121000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 13



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 14



1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 15

CUSTOMER FEEDBACK

1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 16
CERTIFICATE
1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 17

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
1000mm 2200W Thermal Paper Slitting Machine 400gsm Jumbo Roll Slitter Rewinder 18


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
