High Quality NCR Carbonless Paper Computer Continuous Printing Paper
INTRODUCTION
High Quality NCR Carbonless Paper Computer Continuous Printing Paper
Available size;37mmx50mm, 37mmx70mm, 44mmx50mm, 44x70mm, 44x76mm, 57mmx50mm, 57mmx57mm, 76mmx70mm, 76mmx76mm, 80mmx70mm, 80mmx80mm,etc. Any other specifications could been requested by clients.
Core pipe: cardboard core or plastic core. The core with the inner diameter size from 8mm to 25.4mm,the thickness for core wall is from 1mm to 6mm.Our standard core size is from 8mm*12mm,13mm*18mm,15mm*22mm,15mm*23mm,15mm*24mm,25.4mm*34mm.We also can provide colorful core if customer has special need.
Printing: Our thermal roll can be printed with logos and pictures according to customer's nee
TECHNICAL DATA
CARBONLESS PAPER TECHNOLOGY SPECIFICATION TEST REPORT
|
Grades |
Blue/Black Image |
|
Regular basis weight (gsm) |
CB white: 55 CFB colored: 50 CF colored: 55 |
|
Basis weight variation |
±5% |
|
Caliper Variation (CD) |
≤5μm for 50GSM or less GSM ≤7µm for 50GSM or greater GSM |
|
Paper Density |
0.70-0.85 g/cm3 |
|
Opacity |
≥65.5% |
|
Smoothness (CF side) |
≥85.5s |
|
Whiteness |
≥90% |
|
Thickness |
65μm CB 60μm CFB 65μm CF |
|
Chromatic deviation |
≤2.0% (coated side for tinted grades) |
|
Curls |
≤12 mm |
|
Imaging Sensitivity (6 ply prints) |
ΔE≥40% ΔD≥40% |
|
Surface strength (medium viscosity printing ink) |
≥0.55 m/s (printing side) |
|
Light resistance (residual ΔE after 144 hrs) |
≥50% |
|
Friction resistance (Δ E) |
≤5% |
|
TSI (MD) |
≥60 N.m/g |
|
Surface PH |
6.0-9.0 |
|
Moisture on delivery |
6.5% ± 2.0% |
HOW CARBONLESS PAPER WORKS?
When writing on the top of multiple ply NCR documents, the pressure from the writing instrument causes the microcapsules (on the back of CB & CFB) break, the contains will react with the developer (on the front of CFB & CF) and finally realize auto copy.
APPLICATION
Carbonless paper is widely used in multiple ply documents such as banking note, ways bills, commercial invoices, stock list, order list, courier way bill, air/ocean way bill, commercial book, pos roll etc.

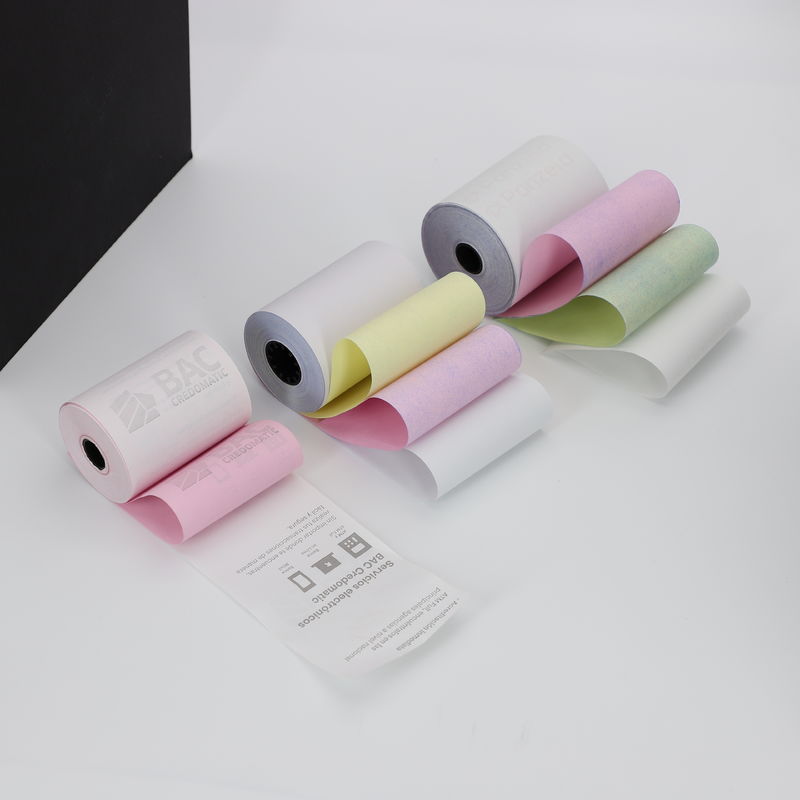

| Roll | |
| Base gsm | CB 55gsm, CFB 50gsm, CF 55gsm |
| Image | Black/Blue |
| Color | White/Pink/Yellow/Blue Green |
| Core Size | 76mm |
| Paper Width | Customized (241,305,482,457,600mm, etc) |
| Regular Length | 6000m/12000m |
| Sheet | |
| Base gsm | CB 55gsm, CFB 50gsm, CF 55gsm |
| Image | Black/Blue |
| Color | White/Pink/Yellow/Blue Green |
| Regular Size |
Customized (61x86,70x100,65x100cm,69x89cm,67x87cm,65x92cm,72x92cm, etc) |
| Commercial Bill | |
| Base gsm | CB 55gsm, CFB 50gsm, CF 55gsm |
| Image | Black/Blue |
| Color | White/Pink/Yellow/Blue Green |
| Regular Size |
Customized (9.5*11 inches, 8.5*11 inches, etc) |
WHY CHOOSE US
1.) High quality
01: 100% virgin wood pulp.
02: High smoothness up to 80s which is friendly to your printer heads.
03: Clear & Sharp Imaging - 5 copies by handwriting , 7 copies by machine printing
04: Good stiffness
05: 5-7 years image life will meet your various requirements.
2) Professional quality control system
3) Well-known brand with attractive packing
4) More than 10 years carbonless Paper manufacture experience
COMPANY INFORMATION
HOW IS CARBONLESS PAPER PRODUCED
PACKAGING AND LOADING OF OUR CARBONLESS PAPER
CUSTOMER FEEDBACK OF OUR CARBONLESS PAPER
CERTIFICATE OF OUR CARBONLESS PAPER
SGS, BV, FSC, ISO
FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper machine every year all over the world to meet and service clients face to face.
Our products are sold all over the world, you can rest assured.
