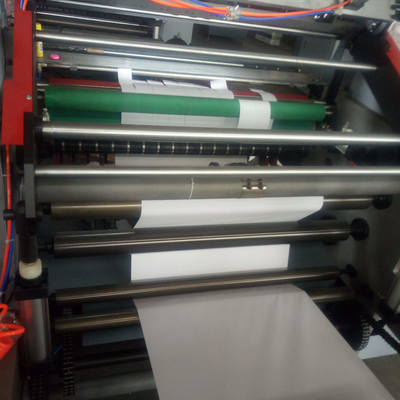

FOCUS Brand Cash Register Roll Slitting Machine
DESCRIPTION
FOCUS brand Thermal paper slitting machine and printing machine is one of the advanced equipment used for slitting and printing thermal paper, cash register paper, ATM Paper and other paper less than 250gsm. It is flexo printing and slitting, automatic paper-cutting, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency conversion speed regulation and full pneumatic operation, accurate cutting, good printing effect and reliable performance.
The automatic slitting machine realizes total unmanned operation. Fully automatic slitting, automatic breaking, automatic flattening, and packaging(option) are integrated. The automatic slitting machine features: automatic paper loading, non-stop, automatic tube feeding, transmission, loading (different from rotating upper shaft and shaftless rewinding, which makes the rewinding face more tidy and stable), automatic paper cutting, gluing, pushing, bonding, suction waste edge, marking, ink filling, and transmission realize full automation.
Technical Data
| Items | Parameters |
| Max. Parent Web Width | 540mm |
| Max. Parent Web Diameter | 1000mm |
| Jumbo Roll Core Diameter | 76mm |
| Max. Printing Width | 530mm |
| Thickness Range | 40-120gsm |
| Printing Speed | 35-100m/min |
| Max. Rewinding Diameter | 180mm |
| Printing Roller (equipped 12” printing roller) | 12”-22” |
It adopts Siemens frequency inverter for speed adjusting, the speed can be displayed on the operation panel. Frequency inverter motor: 2.2Kw. Automatic lift-up loading system is controlled by a motor from Taiwan (only for one ply slitting machine). All transmission rollers have been dynamic/static balance treated. Equipped with Auto length counter. The machine will stop when the length achieves the input data.
APPLICATION
Thermal Paper POS Roll
Thermal Paper ATM Roll
MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE
Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request
WHY CHOOSE US
This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. This machine of our brand has been exported to more than 50 countries and has a good reputation all over the world.
1. Professional Siemens quality control system
2. Simple and easy to use operation
3. High degree of automation
4. Check key projects
5. More than 20 years experience
6. Double working station
7. Affordable price and good quality
8. High capacity, low consumption
COMPANY INFORMATION
SUCCESSFUL MACHINE PROJECTS
THERMAL PAPER COATING MACHINE PRODUCTION PROCESS
CUSTOMER FEEDBACK
CERTIFICATE
FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our products are sold all over the world, you can rest assured.
