FOCUS Brand Cash Register Roll Slitting And Printing Machine

FOCUS Brand Cash Register Roll Slitting And Printing Machine

Products - Jumbo Thermal Paper Roll
  • Highlight

    PLC Cash Register Roll Printing Machine

    ,

    PLC Cash Register Roll Slitting Machine

    ,

    Thermal Paper Slitting Printing Machine

  • Place of Origin
    CHINA
  • Brand Name
    FOCUS
  • Minimum Order Quantity
    1 set
  • Price
    $ 25000, set
  • Delivery Time
    30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    100 Sets per Month

FOCUS Brand Cash Register Roll Slitting And Printing Machine

  • FOCUS Brand Cash Register Roll Slitting And Printing Machine
  • FOCUS Brand Cash Register Roll Slitting And Printing Machine
  • FOCUS Brand Cash Register Roll Slitting And Printing Machine
  • FOCUS Brand Cash Register Roll Slitting And Printing Machine
  • FOCUS Brand Cash Register Roll Slitting And Printing Machine
  • FOCUS Brand Cash Register Roll Slitting And Printing Machine
Get Price Contact Now

FOCUS Brand Cash Register Roll Slitting And Printing Machine

  Brief Introduction

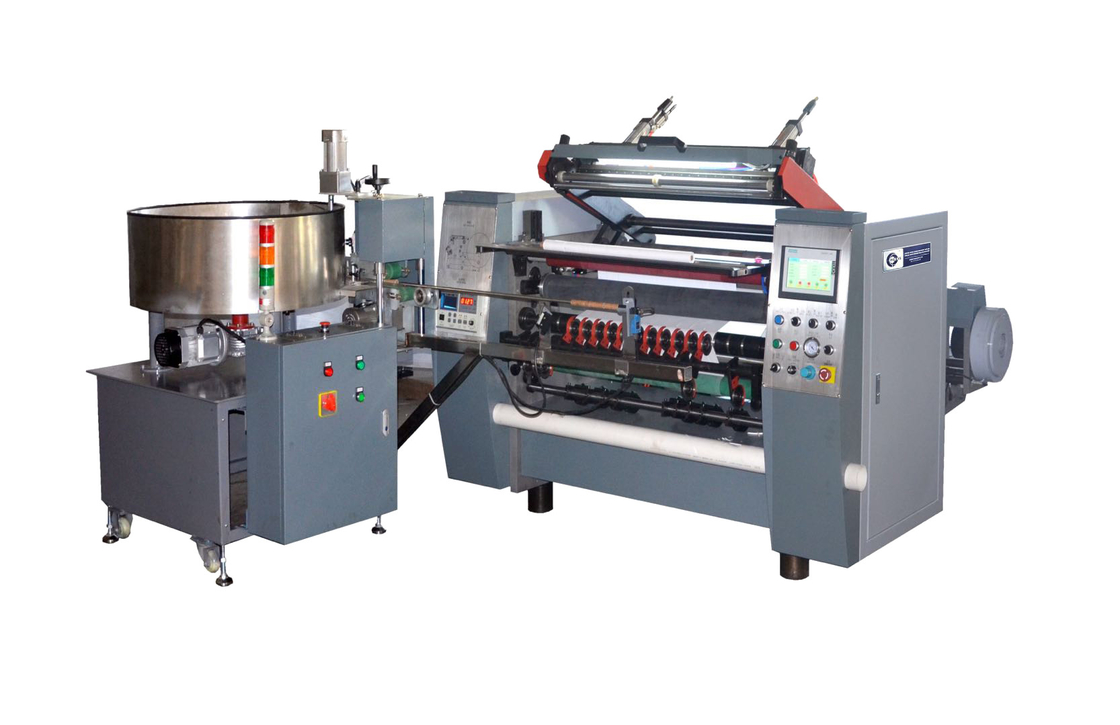

FOCUS Brand Cash Register Roll Slitting And Printing Machine 0

FOCUS brand Thermal paper slitting and printing machine is one of the advanced equipment used for slitting and printing thermal paper, cash register paper, ATM Paper and other paper less than 250gsm. It’s flexo printing and slitting, automatic paper-cutting, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency conversion speed regulation and full pneumatic operation, accurate cutting, good printing effect and reliable performance.



This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. It becomes more and more popular all over the world.





  Technical Parameters



                                   One ply slitting

Items Parameters
Max. Parent Web Width 800mm
Max. Parent Web Diameter 1000mm
Max. Rewinding Diameter 180mm
Min. Slitting Width 30mm
Jumbo Roll Core Diameter 76mm
Core Shaft Diameter φ8-φ50mm
Thickness Range 50-250gsm
Max. Machine Speed 0-120m/min
Air Pressure 0.6Mpa
Frequency Inverter Motor 380V/50HZ/2.2KW
Overall dimension 2500*1600*1600mm
Weight 1500kg



                                                           One Color Flexo Printing

Items Parameters
Max. Parent Web Width 540mm
Max. Parent Web Diameter 1000mm
Jumbo Roll Core Diameter 76mm
Max. Printing Width 530mm
Thickness Range 40-120gsm
Printing Speed 35-100m/min
Max. Rewinding Diameter 180mm
Printing Roller (equipped 12” printing roller) 12”-22”







  Main Configuration

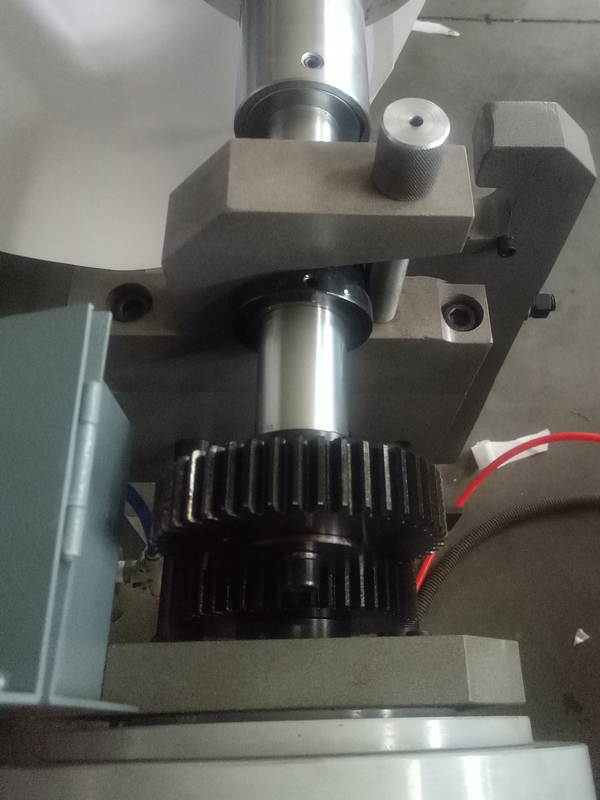

FOCUS Brand Cash Register Roll Slitting And Printing Machine 1



  Packaging & Shipping



FOCUS Brand Cash Register Roll Slitting And Printing Machine 2FOCUS Brand Cash Register Roll Slitting And Printing Machine 3



  Final Products



FOCUS Brand Cash Register Roll Slitting And Printing Machine 4

FOCUS Brand Cash Register Roll Slitting And Printing Machine 5FOCUS Brand Cash Register Roll Slitting And Printing Machine 6



FOCUS Brand Cash Register Roll Slitting And Printing Machine 7
