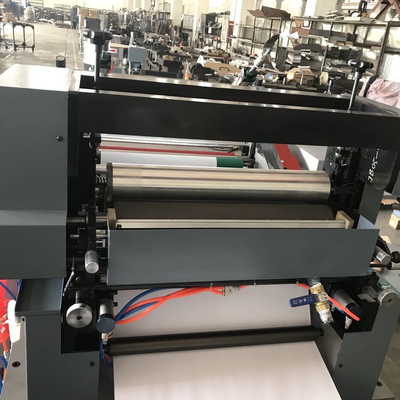

FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min

FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min

  • Type
    Paper Slitting Machine
  • Condition
    New
  • Overall Dimension
    2500*1600*1600mm
  • Weight
    1.9 Tons
  • Application
    ATM Roll, Receipt Roll, Cash Roll
  • Warranty
    1 Year
  • Packing
    Wooden Box
  • Voltage
    380V, 220V
  • Certification
    CE, ISO9001, BV, ISO,slitting Rewinding Machine
  • Working Speed
    35-100m/min
  • Power
    2.2 KW
  • Precision
    ±0.1mm
  • Max.rewind Diameter
    180MM
  • Max Unwinding Diameter
    1100-1400mm
  • Max. Parent Web Width
    540mm
  • Max. Parent Web Diameter
    1000mm
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS
  • Model Number
    900mm
  • Minimum Order Quantity
    1 set
  • Price
    16000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    20-30 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 sets per month

FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min

FOCUS Brand Cash Register Roll Slitting Machine​







DESCRIPTION



FOCUS brand Thermal paper slitting machine and printing machine is one of the advanced equipment used for slitting and printing thermal paper, cash register paper, ATM Paper and other paper less than 250gsm. It is flexo printing and slitting, automatic paper-cutting, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency conversion speed regulation and full pneumatic operation, accurate cutting, good printing effect and reliable performance.



The automatic slitting machine realizes total unmanned operation. Fully automatic slitting, automatic breaking, automatic flattening, and packaging(option) are integrated. The automatic slitting machine features: automatic paper loading, non-stop, automatic tube feeding, transmission, loading (different from rotating upper shaft and shaftless rewinding, which makes the rewinding face more tidy and stable), automatic paper cutting, gluing, pushing, bonding, suction waste edge, marking, ink filling, and transmission realize full automation.





Technical Data



Items Parameters
Max. Parent Web Width 540mm
Max. Parent Web Diameter 1000mm
Jumbo Roll Core Diameter 76mm
Max. Printing Width 530mm
Thickness Range 40-120gsm
Printing Speed 35-100m/min
Max. Rewinding Diameter 180mm
Printing Roller (equipped 12” printing roller) 12”-22”





It adopts Siemens frequency inverter for speed adjusting, the speed can be displayed on the operation panel. Frequency inverter motor: 2.2Kw. Automatic lift-up loading system is controlled by a motor from Taiwan (only for one ply slitting machine). All transmission rollers have been dynamic/static balance treated. Equipped with Auto length counter. The machine will stop when the length achieves the input data.



FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 0FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 1FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 2









APPLICATION

Thermal Paper POS Roll

Thermal Paper ATM Roll

FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 3



FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 4


FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 5



MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE



Packaging Details


The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request



FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 6FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 7





FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 8




WHY CHOOSE US



This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. This machine of our brand has been exported to more than 50 countries and has a good reputation all over the world.



1. Professional Siemens quality control system

2. Simple and easy to use operation

3. High degree of automation

4. Check key projects

5. More than 20 years experience

6. Double working station

7. Affordable price and good quality

8. High capacity, low consumption





FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 9


FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 10

COMPANY INFORMATION
FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 11

SUCCESSFUL MACHINE PROJECTS

FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 12FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 13



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 14



FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 15

CUSTOMER FEEDBACK

FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 16
CERTIFICATE
FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 17

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
FOCUS Brand Cash Register Roll Slitting Machine 35-100m/min 18


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
