900mm ATM/POS Thermal Paper Slitting Machine for Thermal Paper POS and ATM Roll
DESCRIPTION

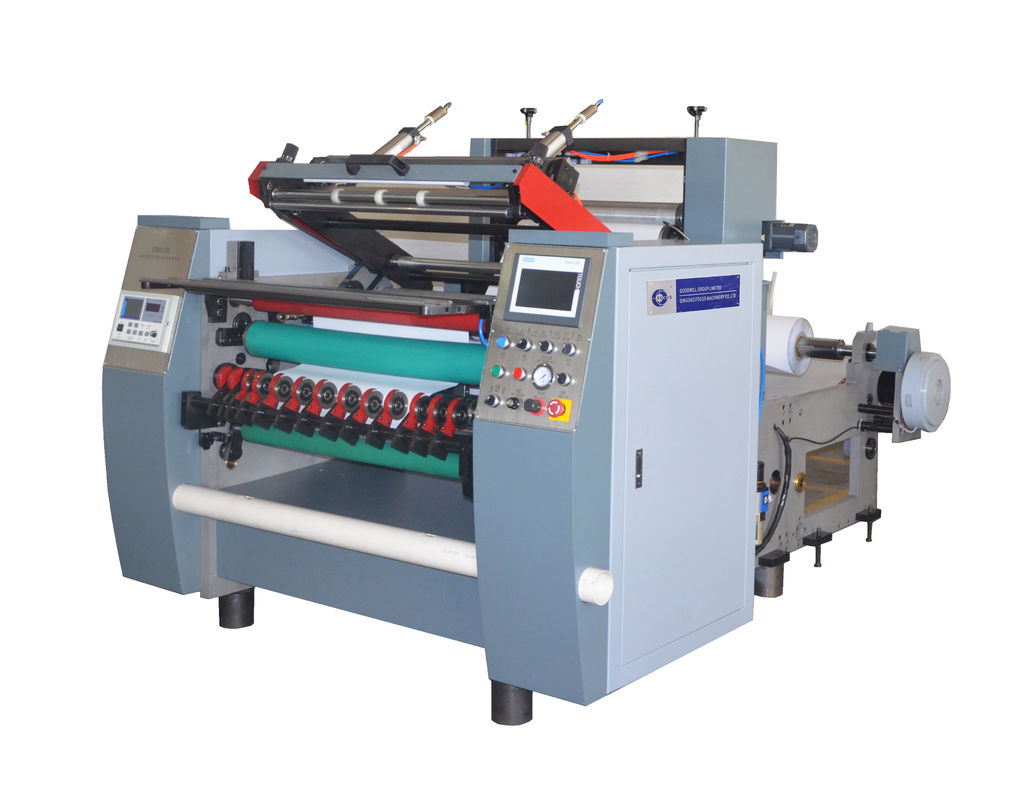

FOCUS brand Thermal paper slitting machine and printing machine is one of the advanced equipment used for slitting and printing thermal paper, cash register paper, ATM Paper and other paper less than 250gsm. It is flexo printing and slitting, automatic paper-cutting, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency conversion speed regulation and full pneumatic operation, accurate cutting, good printing effect and reliable performance.
Technical Data
| Items | Parameters |
| Max. Parent Web Width | 900mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 160mm |
| Frequency Inverter Motor | 2.2Kw |
| Thickness Range | 50-400gsm |
| Max. Machine Speed | 120m/min |
| Overall dimension | 4000*1700*1600mm |
| Weight | 1900kg |
| Voltage | 3 Phase 220V 60HZ or 380V 50HZ |
Adopting surface rewinding system and SIEMENS PLC and touch screen automatic control system. You only need to input the material roll meter, then PLC will give a proper parameters for machine running automatically. All the parameters are displayed on the monitor.
APPLICATION
Thermal Paper POS Roll
Thermal Paper ATM Roll
MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE
Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request
WHY CHOOSE US
This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. This machine of our brand has been exported to more than 50 countries and has a good reputation all over the world.
1. Professional Siemens quality control system
2. Simple and easy to use operation
3. High degree of automation
4. Check key projects
5. More than 20 years experience
6. Double working station
7. Super Calendar
8. High capacity, low consumption
