High-Speed Thermal Paper Roll Slitting Machine for 40-400gsm Materials
-
Highlight
High-Speed Thermal Paper Slitter
,Thermal Paper Roll Slitting Machine
,Slitting Machine for 40-400gsm
-
Max. Parent Web Width900mm
-
Max. Parent Web Diameter1000mm
-
Max. Rewinding Diameter2.2Kw
-
Thickness Range40-400gsm
-
Max. Machine Speed200m/min
-
Overall Dimension1600*1700*1600mm (1 Ply)
-
Weight1900kg
-
Voltage3 Phase 220V 60HZ Or 380V 50HZ
-
Machine TypeFlexo Letterpress Printing Machine
-
Overall Dimension4000*1700*1600mm
-
Power Supply220V/50Hz
-
Max. Unwinding Diameter1000mm
-
Cutting Accuracy±0.1mm
-
Rewind Diameter160mm
-
Slitting Accuracy±0.1mm
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM25PSM0412001
-
Minimum Order Quantity1
High-Speed Thermal Paper Roll Slitting Machine for 40-400gsm Materials
| Attribute | Value |
|---|---|
| Max. Parent Web Width | 900mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 2.2Kw |
| Thickness Range | 40-400gsm |
| Max. Machine Speed | 200m/min |
| Overall dimension (1 Ply) | 1600*1700*1600mm |
| Weight | 1900kg |
| Voltage | 3 Phase 220V 60HZ or 380V 50HZ |
| Machine Type | Flexo Letterpress Printing Machine |
| Cutting Accuracy | ±0.1mm |
| Slitting Accuracy | ±0.1mm |

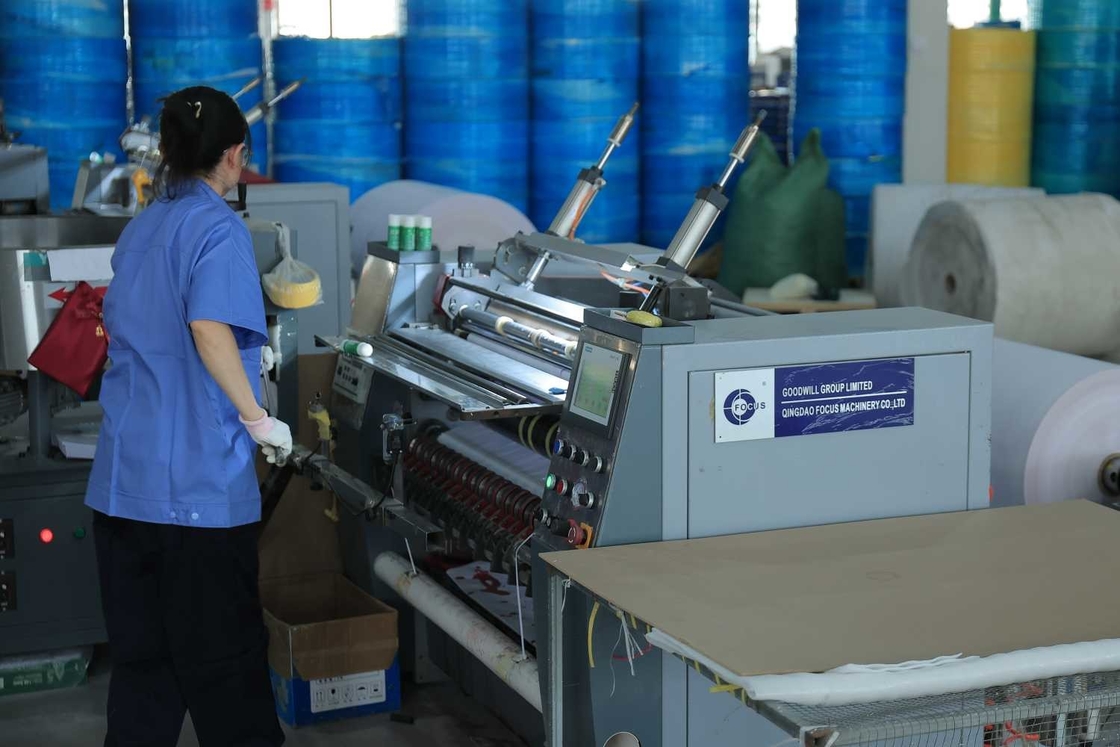

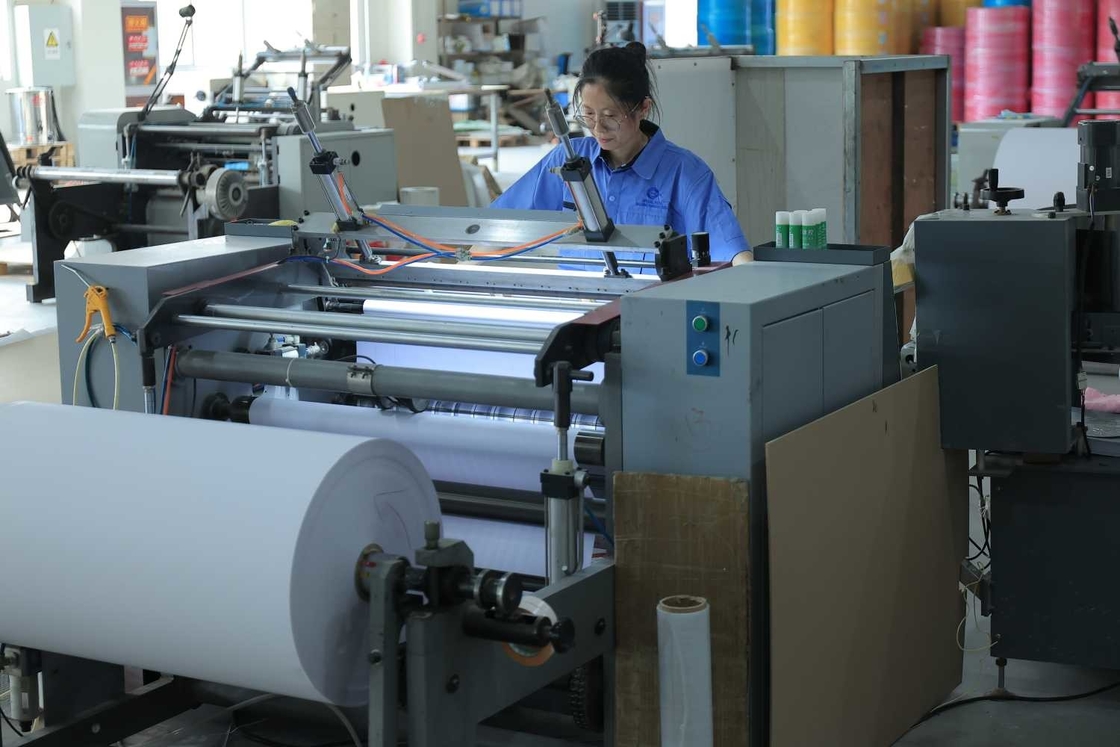

The FOCUS brand thermal paper slitting machine is an advanced piece of equipment designed for precision slitting of various paper types including thermal paper, NCR paper, fax paper, cash register paper, ATM paper, and self-adhesive labels up to 250gsm. This versatile machine can handle one, two, or three layers of small paper rolls, with primary applications in thermal and NCR paper processing.
Engineered for ease of operation and high automation, the machine comes with factory-preset parameters. Operators simply need to input the desired speed and tension, after which the system automatically controls the entire operation. This intelligent design has made it a popular choice in markets worldwide.
Founded in the 1990s, Qingdao FOCUS MACHINERY Co., Ltd specializes in manufacturing paper machines and providing complete production lines for the paper industry. With leading technologies, extensive experience, and specialized know-how, we meet diverse requirements and deliver turnkey projects.
As a subsidiary of Goodwill Group Limited (founded in the UK), we have established over 30 successful production lines and exported machinery worldwide to South America, Asia, Africa, and Europe. Our commitment to quality and demonstration of capability led to the establishment of our own paper factory 15 years ago, equipped with machines and production lines we designed and manufactured, allowing customers to witness our technology in action and evaluate paper quality firsthand.
Our products are sold all over the world, you can rest assured.
