Thermal Paper Slitting Machine for NCR, Fax, and ATM Paper Rolls
-
Highlight
Thermal paper roll slitter
,NCR paper slitting machine
,ATM paper roll cutter
-
Max. Parent Web Width900mm
-
Max. Parent Web Diameter1000mm
-
Max. Rewinding Diameter2.2Kw
-
Thickness Range40-400gsm
-
Max. Machine Speed200m/min
-
Overall Dimension1600*1700*1600mm (1 Ply)
-
Weight1900kg
-
Voltage3 Phase 220V 60HZ Or 380V 50HZ
-
Machine TypeFlexo Letterpress Printing Machine
-
Overall Dimension4000*1700*1600mm
-
Power Supply220V/50Hz
-
Max. Unwinding Diameter1000mm
-
Cutting Accuracy±0.1mm
-
Rewind Diameter160mm
-
Slitting Accuracy±0.1mm
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM25PSM0412001
-
Minimum Order Quantity1
Thermal Paper Slitting Machine for NCR, Fax, and ATM Paper Rolls
| Attribute | Value |
|---|---|
| Max. Parent Web Width | 900mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 2.2Kw |
| Thickness Range | 40-400gsm |
| Max. Machine Speed | 200m/min |
| Overall dimension | 1600*1700*1600mm (1 Ply) |
| Weight | 1900kg |
| Voltage | 3 Phase 220V 60HZ or 380V 50HZ |
| Machine Type | Flexo Letterpress Printing Machine |
| Cutting Accuracy | ±0.1mm |
| Slitting Accuracy | ±0.1mm |

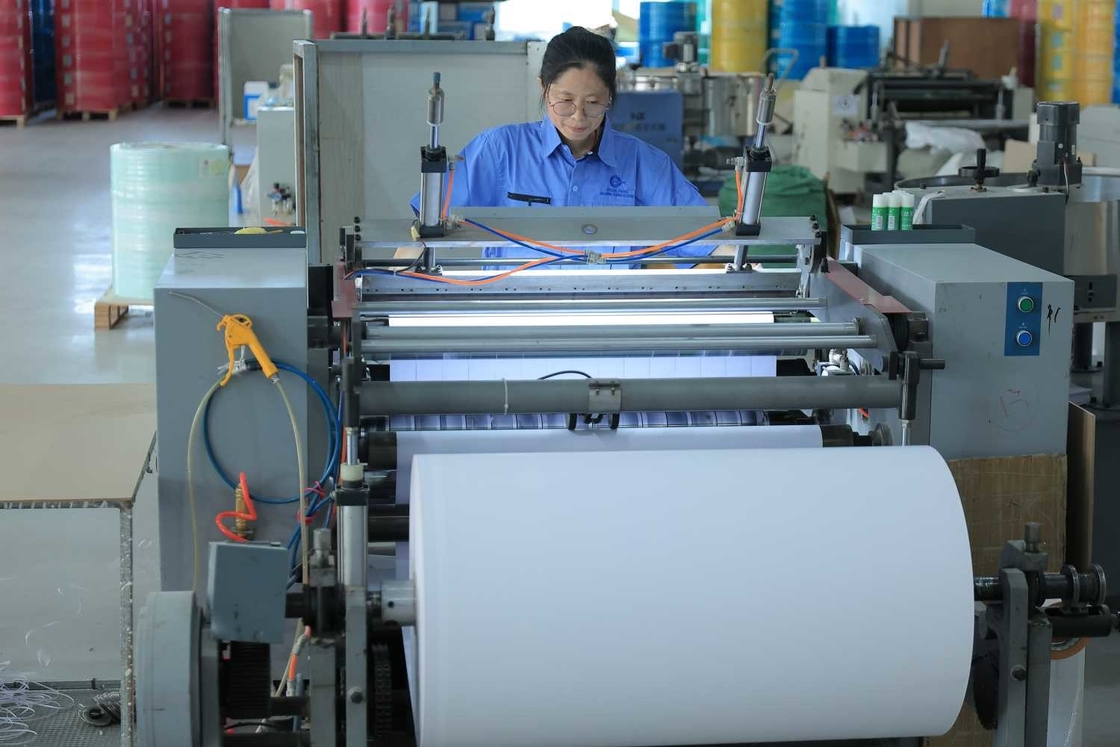

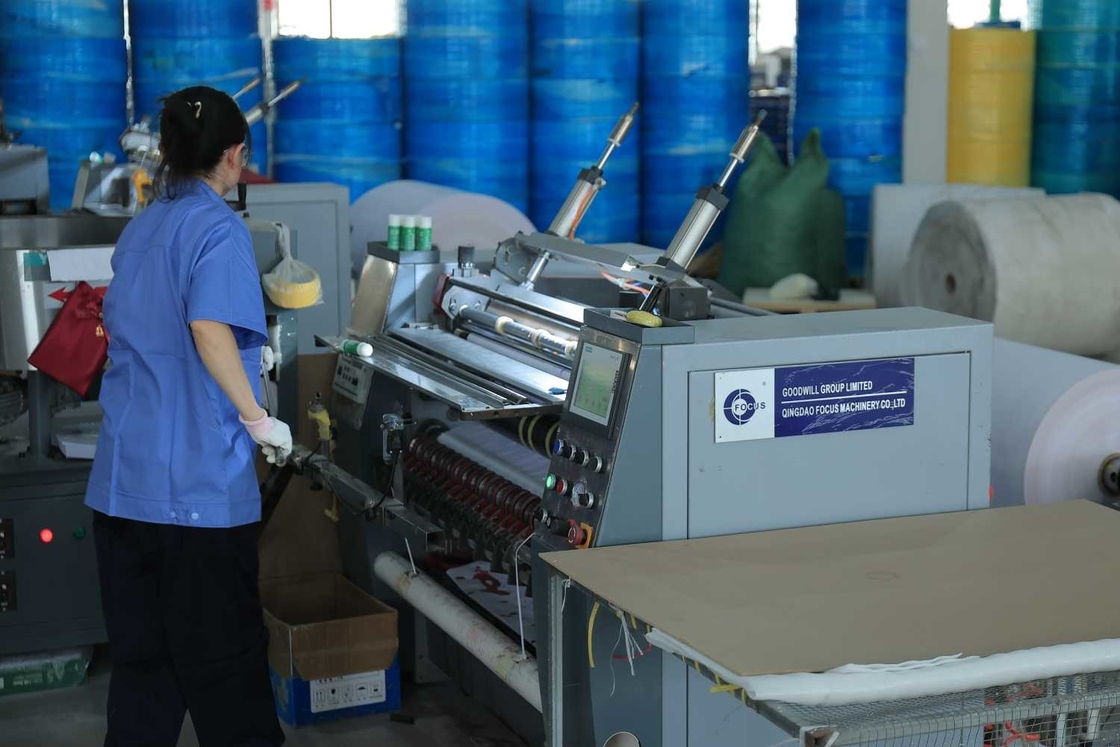

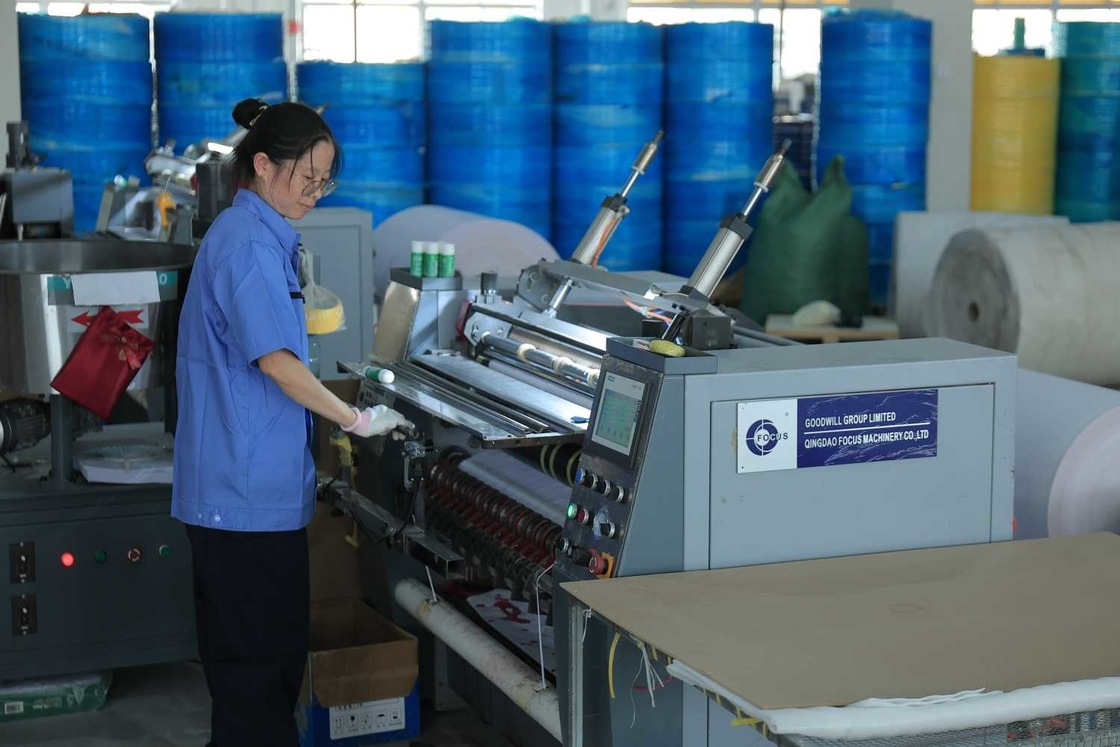

FOCUS thermal paper slitting machine is a cutting-edge device for slitting thermal paper, NCR paper, fax paper, cash register paper, ATM paper, self-adhesive labels, and similar papers up to 250gsm. It can slit one, two, or three layers of small rolls, especially thermal paper and NCR paper rolls.
Featuring a simple operation interface and high automation, users need only to set speed and tension. Once entered, the machine will automatically adjust and control the entire process. All parameters are adjusted to the best condition before leaving the factory.
| Item | Specification |
|---|---|
| Max. Parent Web Width | 900mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 200mm |
| Frequency Inverter Motor | 2.2Kw |
| Thickness Range | 40-400gsm |
| Max. Machine Speed | 200m/min |
| Overall dimension | 1600*1700*1600mm (1 Ply) |
| Weight | 1900kg |
| Voltage | 3 Phase 220V 60HZ or 380V 50HZ |
Qingdao FOCUS MACHINERY Co., Ltd, founded in 1990s, was dedicated to manufacture paper machines and provide production line for paper industry.
Based on leading technologies, experiences and knowhow, we could meet a variety of requirements and offer turn key projects. We are also one of the subsidiary companies of Goodwill Group Limited who was founded in U.K.
Since we built more than 30 successful production lines and exporting lots of machines in South America, Asia, Africa, Europe, etc., more customers desired to visit us personally, not only check capacity but also to see our machines how to work and paper quality made by them, so 15 years ago we built paper factory by machines and production lines we produced and designed.
Our products are sold all over the world, you can rest assured.
