Automatic Thermal Paper Roll Slitting Machine for 1-3 Ply, 40-400gsm
-
Highlight
Automatic thermal paper slitter
,1-3 ply paper slitting machine
,40-400gsm thermal paper cutter
-
Max. Parent Web Width900mm
-
Max. Parent Web Diameter1000mm
-
Max. Rewinding Diameter2.2Kw
-
Thickness Range40-400gsm
-
Max. Machine Speed200m/min
-
Overall Dimension1600*1700*1600mm (1 Ply)
-
Weight1900kg
-
Voltage3 Phase 220V 60HZ Or 380V 50HZ
-
Machine TypeFlexo Letterpress Printing Machine
-
Overall Dimension4000*1700*1600mm
-
Power Supply220V/50Hz
-
Max. Unwinding Diameter1000mm
-
Cutting Accuracy±0.1mm
-
Rewind Diameter160mm
-
Slitting Accuracy±0.1mm
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM25PSM0412001
-
Minimum Order Quantity1
Automatic Thermal Paper Roll Slitting Machine for 1-3 Ply, 40-400gsm
| Attribute | Value |
|---|---|
| Max. Parent Web Width | 900mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 2.2Kw |
| Thickness Range | 40-400gsm |
| Max. Machine Speed | 200m/min |
| Overall dimension (1 Ply) | 1600*1700*1600mm |
| Weight | 1900kg |
| Voltage | 3 Phase 220V 60HZ or 380V 50HZ |
| Machine Type | Flexo Letterpress Printing Machine |
| Overall Dimension | 4000*1700*1600mm |
| Power Supply | 220V/50Hz |
| Max. Unwinding Diameter | 1000mm |
| Cutting Accuracy | ±0.1mm |
| Rewind Diameter | 160mm |
| Slitting Accuracy | ±0.1mm |

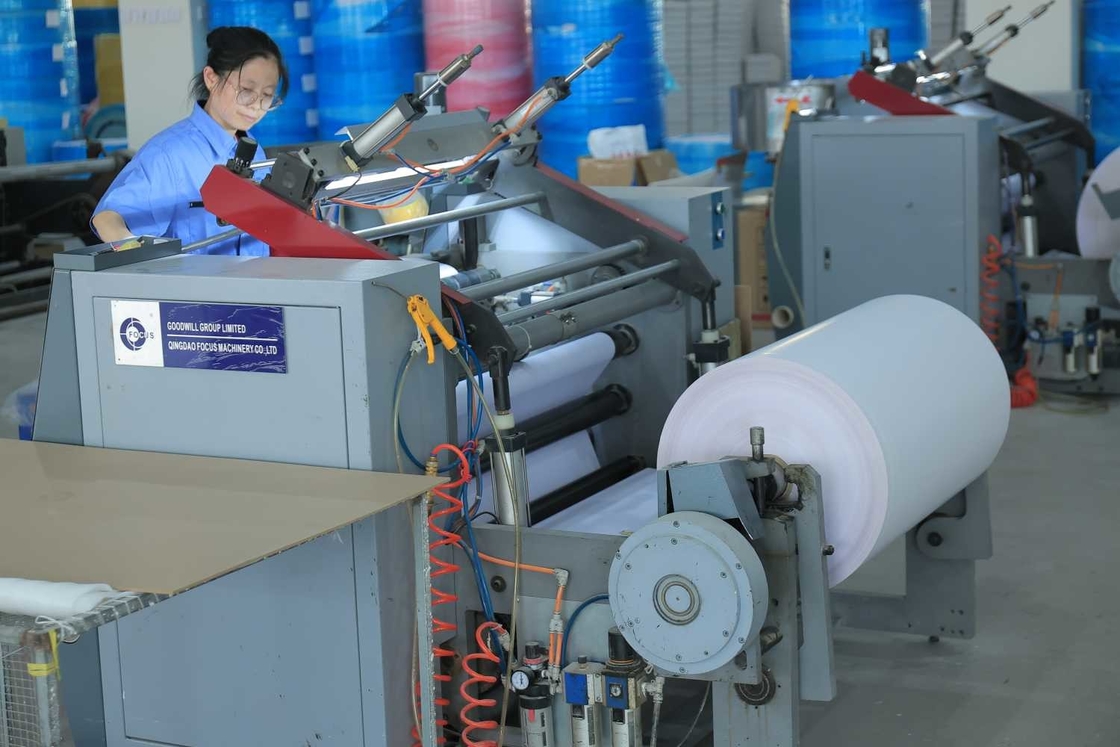

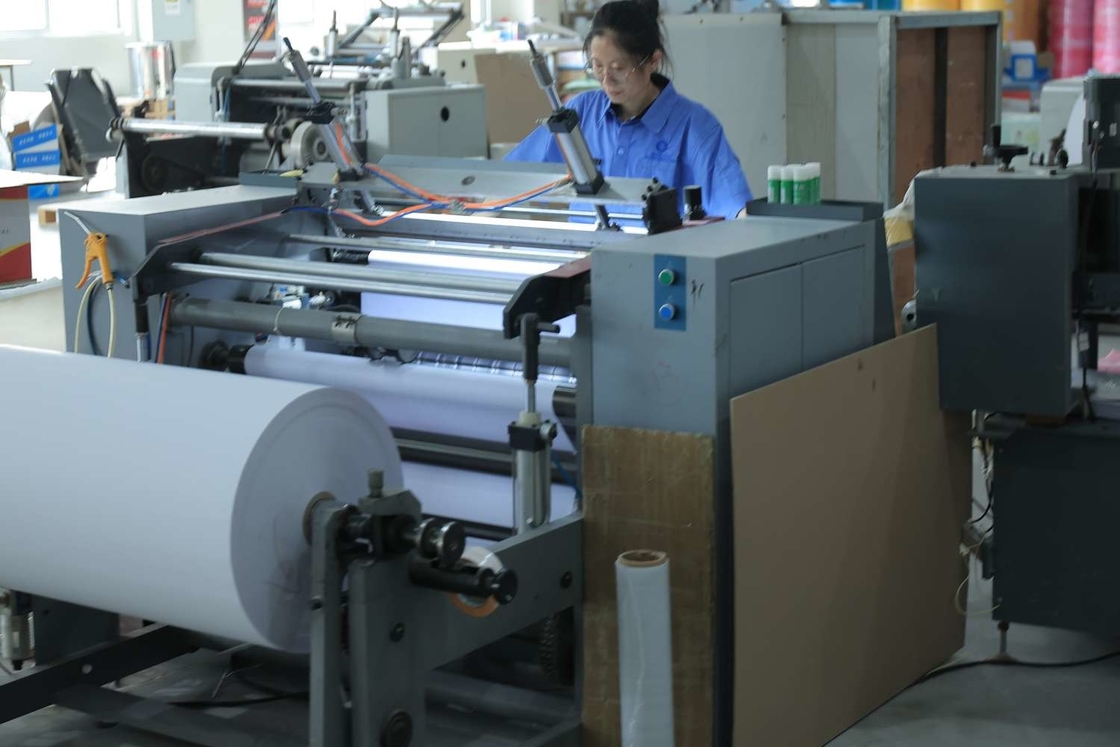

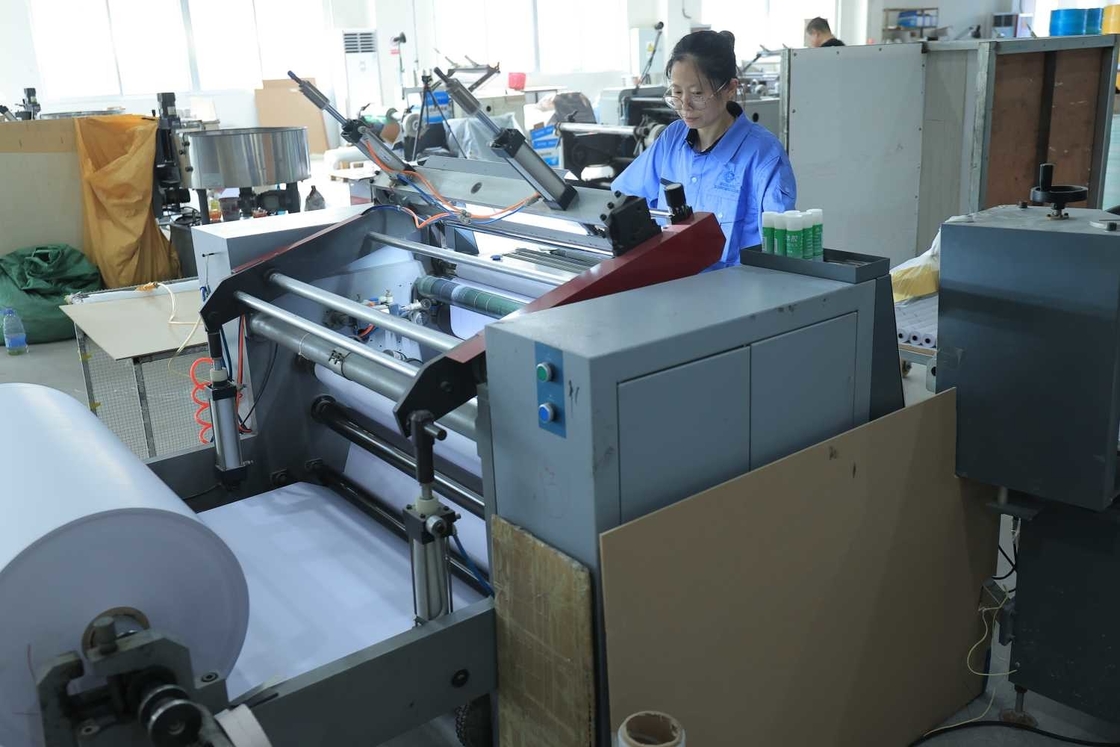

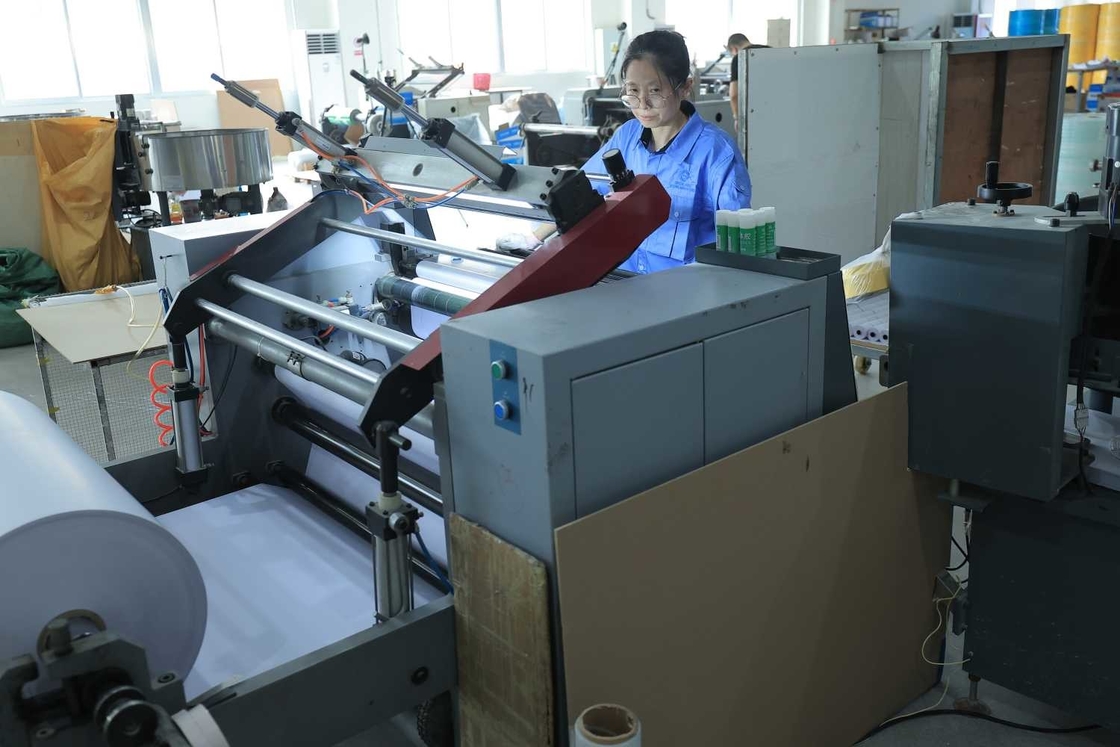

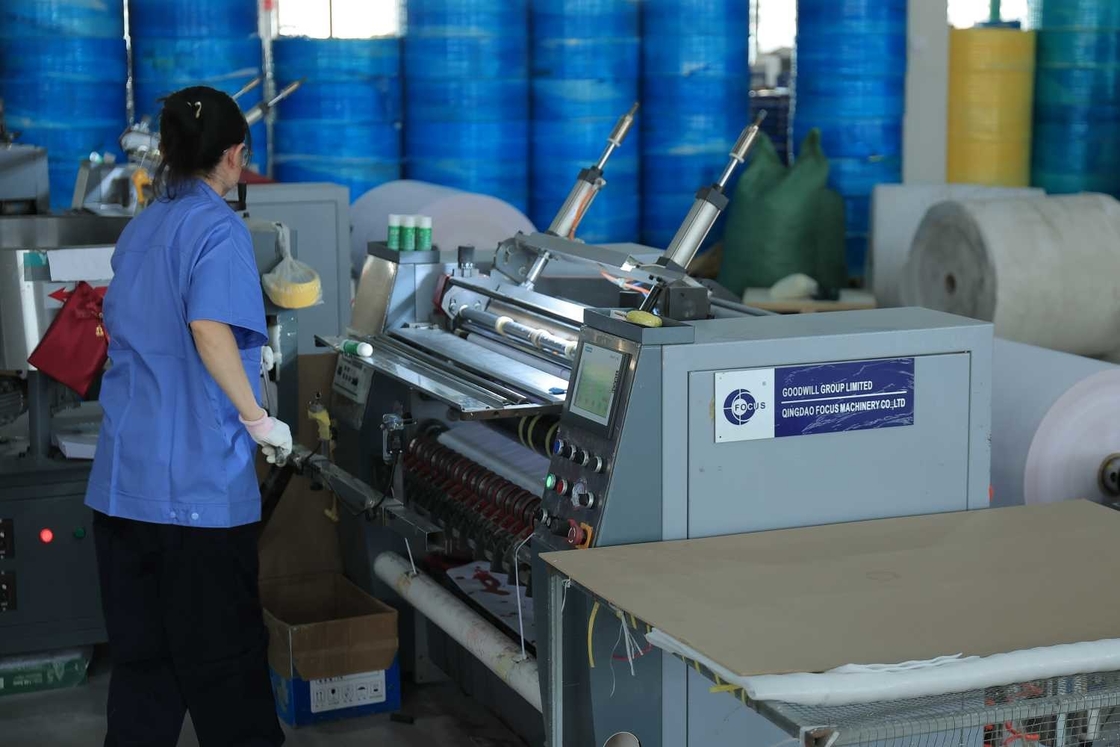

The FOCUS Automated Thermal Paper Slitter is engineered to handle a diverse range of paper materials, including thermal paper, NCR paper, fax paper, ATM paper, and self-adhesive labels. Capable of slitting paper up to 250gsm, this machine excels in producing small rolls of thermal and NCR paper with layers ranging from one to three.
The machine's advanced automation ensures simple operation—operators only need to set the speed and tension, and the system takes care of the rest, delivering precise and efficient slitting every time.
| Item | Parameter |
|---|---|
| Max. Parent Web Width | 900mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 200mm |
| Frequency Inverter Motor | 2.2Kw |
| Thickness Range | 40-400gsm |
| Max. Machine Speed | 200m/min |
| Overall dimension (1 Ply) | 1600*1700*1600mm |
| Weight | 1900kg |
| Voltage | 3 Phase 220V 60HZ or 380V 50HZ |
Founded in the 1990s, Qingdao FOCUS MACHINERY Co., Ltd is dedicated to manufacturing paper machines and providing production lines for the paper industry.
Based on leading technologies, experiences and know-how, we meet a variety of requirements and offer turnkey projects. We are also one of the subsidiary companies of Goodwill Group Limited, which was founded in the UK.
Having built more than 30 successful production lines and exported machines worldwide to South America, Asia, Africa, and Europe, we established our own paper factory 15 years ago to demonstrate our machines' capabilities and the quality of paper they produce.
Our products are sold all over the world, you can rest assured.
