3200mm Three Wire Paper Making Machine 400m/Min Kraft Paper Bag Packaging

3200mm Three Wire Paper Making Machine 400m/Min Kraft Paper Bag Packaging

  • High Light

    3200mm Paper Making Machine

    ,

    Three Wire Paper Making Machine

    ,

    400m/min kraft paper bag sealing machine

  • Name
    Kraft Paper Making Machine
  • Product Type
    Kraft Liner Paper Board
  • GSM
    90-350g
  • Net Paper Width
    3200mm
  • Working Speed
    260-400m/min
  • Design Speed
    450m/min
  • Layout
    2 Floor
  • Capacity
    200 Ton/day
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS, FSC
  • Model Number
    3200mm
  • Minimum Order Quantity
    1 set
  • Price
    10000000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    90-120 working days
  • Payment Terms
    L/C, D/P, T/T, D/A
  • Supply Ability
    5 sets per month

3200mm Three Wire Paper Making Machine 400m/Min Kraft Paper Bag Packaging

The 3200mm Three Wire Kraft Paper Bag Packaging Paper Making Machine



For machine project, we do the turn key contract with our customers. We not only design and produce the machinery but also supply our customer the whole production line. The only thing for you to do is prepare the workshop, the water, the electricity and the steam. And also, we will dispatch the engineers to help you install and commission the production line. Then we will train the your workers to operate the production line. Finally, we will turn over the whole project to you when it normally run.







Part 1.General: technical specification

1.1 Overview

1.2. Main technical specification

1.3. Main process data

1.4. Water, electricity, steam, hydraulic and compressed air requirements

1.5. Paper machine process

Part 2. Main structure of paper machine and supply scope

2.1 Headbox

2.2. Stacking-wire forming department

2.3 Press section

2.4. Drying Section

2.5 Closed gas hood

2.6 Sizing Machine

2.7 Roller mode horizontal drum rewinding section

2.8 Nipco hard Calender section

2.9 QCS system

2.10. Dry wasting paper pulping machine

2.11 Mechanical transmission

2.12 Compressed air system

2.13. Lubrication system

2.14 Press hydraulic system

2.15 Base Section

2.16. Electrical control

Part 3. Supply scope of paper machine

Part 4 Paper machine installation standard

Part 5. List of major outside purchased parts

Part 6. The machine implements standard





Machine parameters



Product Types Kraft liner paper board,corrugated paper.
GSM 90-350g/m2
Net Paper Width 3200mm(Max 3400mm)
Paper Width 3480mm(In the reel machine)
Working Speed 260-400m/min
Design Speed 450m/min
Dynamic Balance Speed 600m/min
Main Bearings Distance 4350mm,4500mm
Driven Function Partial driven,AC converter
Layout 2 floors layout setup,right hand machine



Applicable Industries: Manufacturing Plant
Condition: New
Product Type: Kraft paper making machine
Processing Type: paper machine
Place of Origin: China
Voltage: 380v / 450v
Power: 300kw
Dimension(L*W*H): as design
Warranty: 1 Year
Production Capacity: 20-1000tpd
Machinery Test Report: Provided
Video outgoing-inspection: Provided
After-sales Service Provided: Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Raw material: waste paper or wood pulp
Trimmed Width: 2400-3400mm
Brand FOCUS
Experience: 30 years
Application: for paper manufacturing company
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Peru, Saudi Arabia, Russia, UAE, UK,Bangladesh,
Certification: ISO, BV,CE
Supply Ability 100 Set/Sets per Year

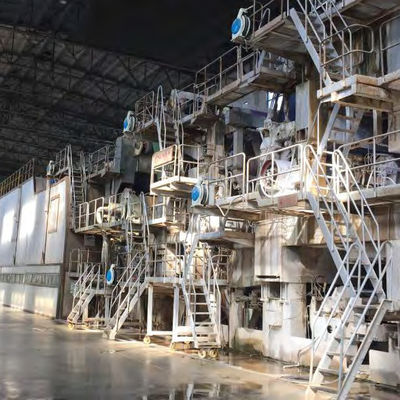

3200mm Three Wire Paper Making Machine 400m/Min Kraft Paper Bag Packaging 03200mm Three Wire Paper Making Machine 400m/Min Kraft Paper Bag Packaging 1
