100% Virgin Wood Pulp 50gsm Carbonless Paper NCR Paper
INTRODUCTION
100% Virgin Wood Pulp 50gsm Carbonless Paper NCR Paper
Carbonless copy paper (CCP), non-carbon copy paper, or NCR paper (No Carbon Required, taken from the initials of its creator, National Cash Register) is a type of coated paper designed to transfer information written on the front onto sheets beneath.
CB (coated back): The back of the base paper was coated with microcapsule.
CFB (coated front & back): The base paper was coated with color developer on front and microcapsule on back.
CF (coated back): The front of the base paper was coated with color developer on front.
Carbonless paper, also known as NCR paper, Non carbon copy paper, self copy paper, auto copy paper etc, is a kind of paper coated by Microcapsule and/or color Developer. It including CB, CFB & CF.
Normally, in a multiple ply NCR documents, the top sheet is CB and bottom sheet is CF, all the other sheets between is CFB.
TECHNICAL DATA
NCR PAPER TECHNOLOGY SPECIFICATION TEST REPORT
| Grades | Blue/Black Image |
|
Regular basis weight (gsm) |
CB white: 55 CFB colored: 50 CF colored: 55 |
|
Basis weight variation |
±5% |
|
Caliper Variation (CD) |
≤5μm for 50GSM or less GSM ≤7µm for 50GSM or greater GSM |
|
Paper Density |
0.70-0.85 g/cm3 |
|
Opacity |
≥65% |
|
Smoothness (CF side) |
≥80s |
|
Whiteness |
≥90% |
|
Thickness |
65μm CB 60μm CFB 65μm CF |
|
Chromatic deviation |
≤2.0% (coated side for tinted grades) |
|
Curls |
≤12 mm |
|
Imaging Sensitivity (6 ply prints) |
ΔE≥40% ΔD≥40% |
|
Surface strength (medium viscosity printing ink) |
≥0.55 m/s (printing side) |
|
Light resistance (residual ΔE after 144 hrs) |
≥50% |
|
Friction resistance (Δ E) |
≤5% |
|
TSI (MD) |
≥60 N.m/g |
|
Surface PH |
6.0-9.0 |
|
Moisture on delivery |
6.5% ± 2.0% |
HOW CARBONLESS PAPER WORKS?
When writing on the top of multiple ply NCR documents, the pressure from the writing instrument causes the microcapsules (on the back of CB & CFB) break, the contains will react with the developer (on the front of CFB & CF) and finally realize auto copy.
APPLICATION
Carbonless paper is widely used in multiple ply documents such as banking note, ways bills, commercial invoices, stock list, order list, courier way bill, air/ocean way bill, commercial book, pos roll etc.

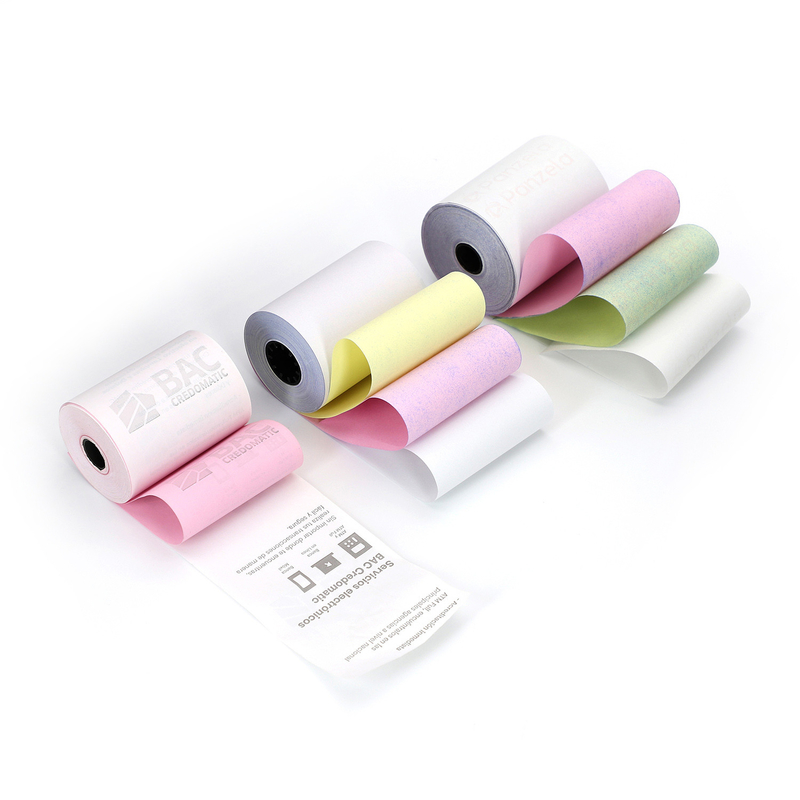

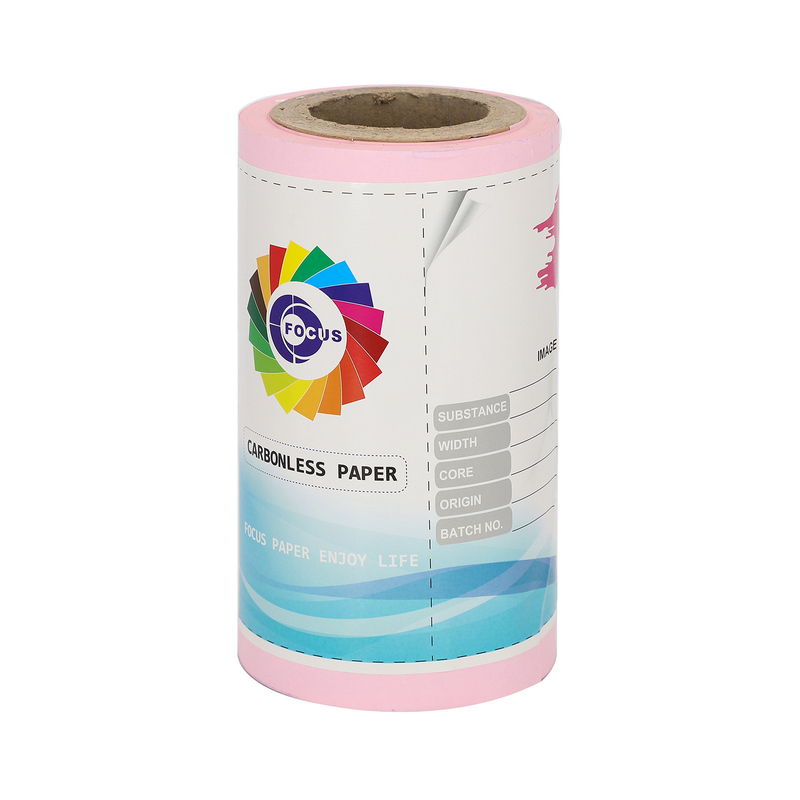

| Roll | |
| Base gsm | CB 55gsm, CFB 50gsm, CF 55gsm |
| Image | Black/Blue |
| Color | White/Pink/Yellow/Blue Green |
| Core Size | 76mm |
| Paper Width | Customized (241,305,482,457,600mm, etc) |
| Regular Length | 6000m/12000m |

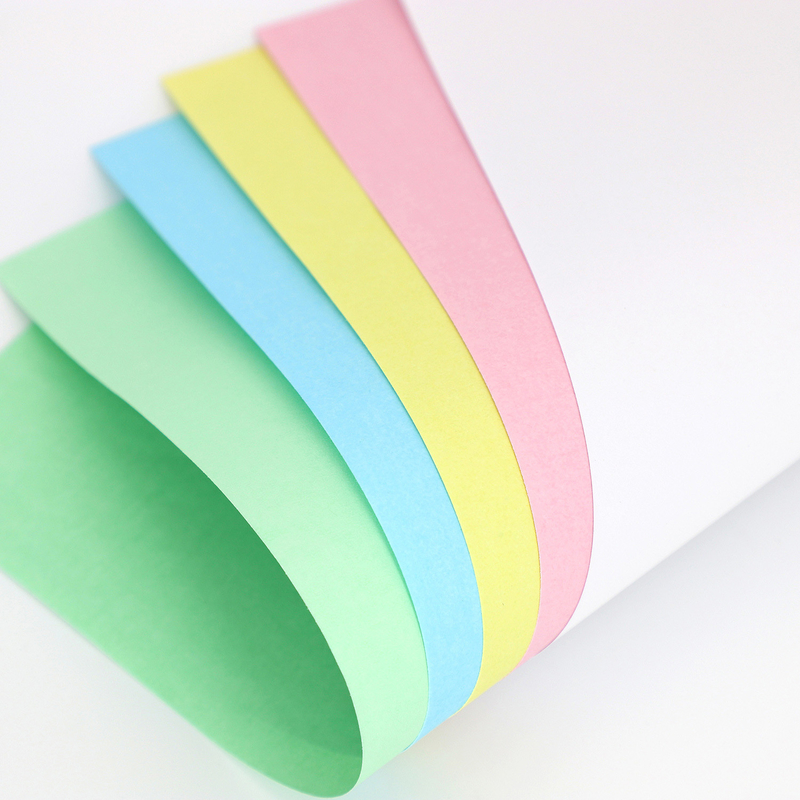

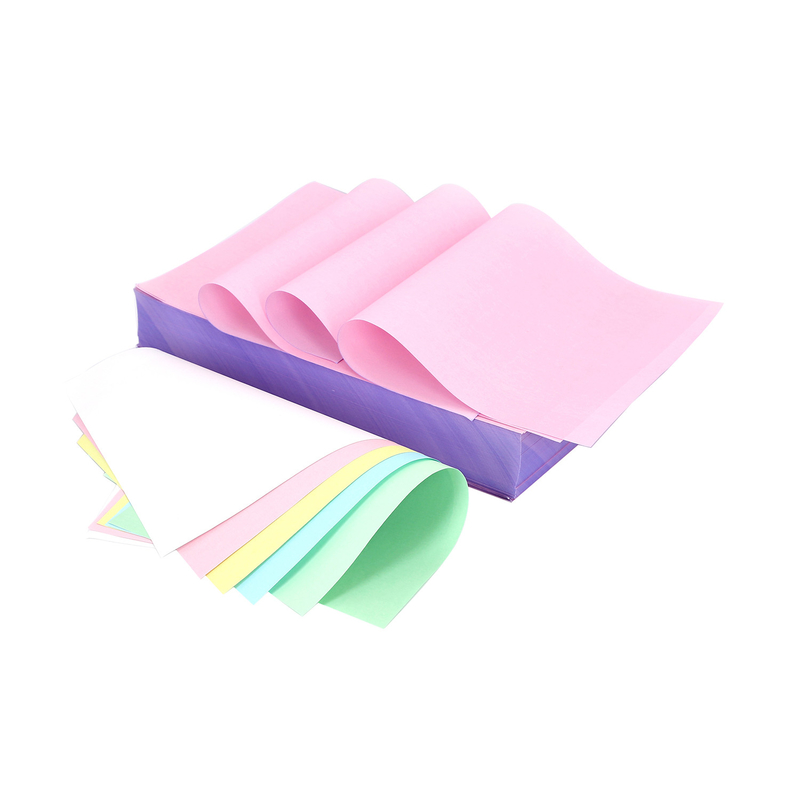

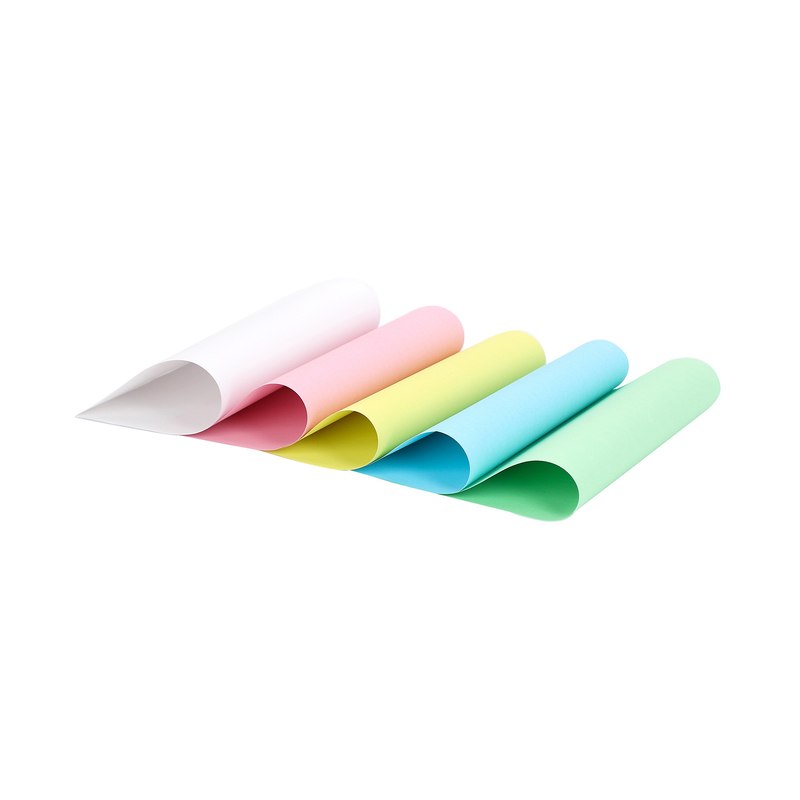

| Sheet | |
| Base gsm | CB 55gsm, CFB 50gsm, CF 55gsm |
| Image | Black/Blue |
| Color | White/Pink/Yellow/Blue Green |
| Regular Size |
Customized (61x86,70x100,65x100cm,69x89cm,67x87cm,65x92cm,72x92cm, etc) |
| Commercial Bill | |
| Base gsm | CB 55gsm, CFB 50gsm, CF 55gsm |
| Image | Black/Blue |
| Color | White/Pink/Yellow/Blue Green |
| Regular Size |
Customized (9.5*11 inches, 8.5*11 inches, etc) |
WHY CHOOSE US
1.) High quality
01: 100% virgin wood pulp.
02: Clear & Sharp Imaging - 5 copies by handwriting , 7 copies by machine printing
03: High smoothness up to 80s which is friendly to your printer heads.
04: Good stiffness
05: Professional quality control system
05: 5-7 years image life will meet your various requirements.
06:More than 10 years carbonless Paper manufacture experience
COMPANY INFORMATION
HOW IS CARBONLESS PAPER PRODUCED
PACKAGING AND LOADING OF OUR CARBONLESS PAPER
CUSTOMER FEEDBACK OF OUR CARBONLESS PAPER
CERTIFICATE OF OUR CARBONLESS PAPER
SGS, BV, FSC, ISO
FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper machine every year all over the world to meet and service clients face to face.
Our products are sold all over the world, you can rest assured.
