2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001

  • High Light

    2500mm thermal paper coating machine

    ,

    Unwinding Frame thermal paper coating machine

    ,

    paper poly coating machine ISO9001

  • Certification
    CE, ISO9001, BV, ISO
  • Machine Width
    2500mm
  • Project
    Turn Key Project
  • Condition
    Totally New
  • Size
    120000*8000*7000
  • Weight
    5 Tons
  • Finished Product
    Thermal & NCR Paper
  • Warranty
    2 Year
  • Packing
    Wooden Box
  • After-sale Service
    Engineers Available
  • Voltage
    380V, 220V
  • Speed
    400m/min
  • Function
    Paper Coating, Chemical Coating
  • Rewind Diameter
    2500MM
  • Unwinding Diameter
    1300mm
  • Service
    Engineers Available
  • Product Name
    Paper Coating Machine
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Model Number
    2500mm
  • Minimum Order Quantity
    1 set
  • Price
    900000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    60-90 working days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    10 sets per month

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001

Double Working Position Unwinding Frame 2500mm Coating Machine


DESCRIPTION



Double Working Position Unwinding Frame 2500mm Coating Machine



Double working position unwinding frame

Air knife coater – single side hot air drying (12m length oven)

Leveling dryer

Scraper coater

Single side hot air drying (8m length oven)

Double roller for water coating of back side

Gloss calender finishing

Cooling roller leveling (2 roller)

Horizontal rewinding



TECHNICAL DATA



Items Parameters
Max. Parent Web Width 2500mm
Max. Parent Web Diameter 2300mm
Max. Rewinding Diameter 2000mm
Compress air pressure 0.6MPa
Base paper weight Range 40-250gsm
Max. Machine Speed 400m/min
Overall dimension 120000*8000*7000mm
Weight 5000kg
Voltage 220V, 380V

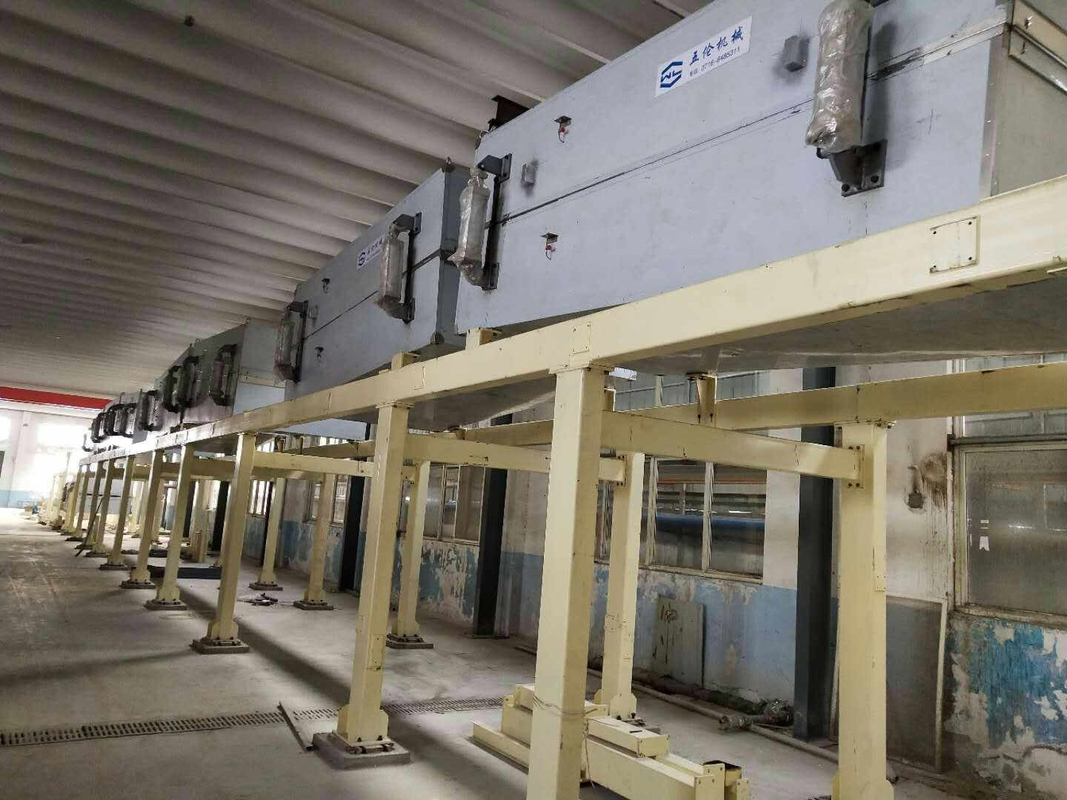

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 0

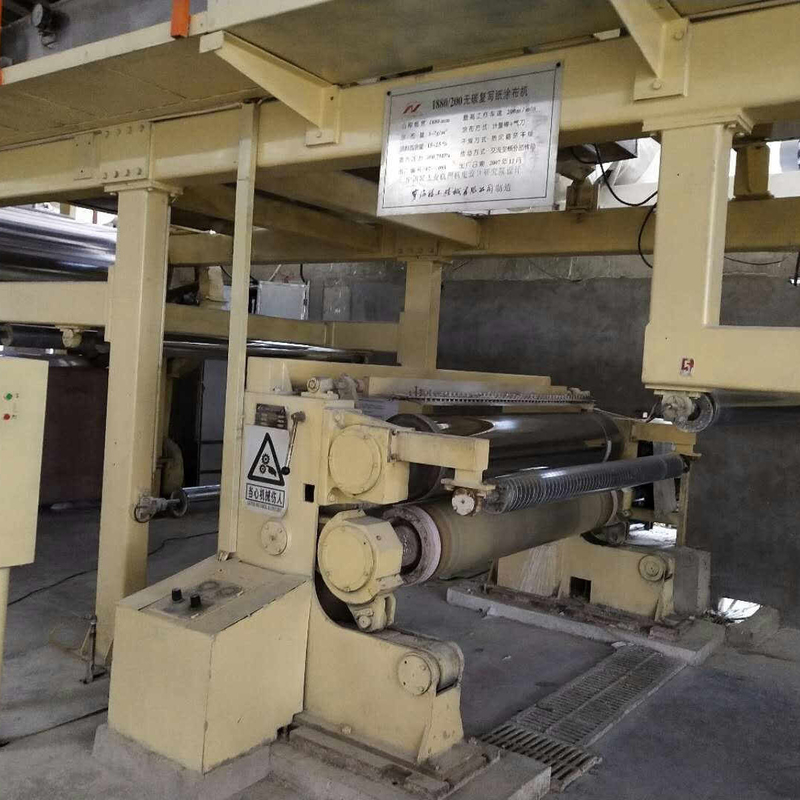

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 12500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 22500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 3

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 4
2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 5

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 62500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 7

MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE

Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 8

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 9

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 10




2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 11
2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 12

COMPANY INFORMATION
2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 13

SUCCESSFUL MACHINE PROJECTS

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 142500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 15



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 16
2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 17

CUSTOMER FEEDBACK

2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 18

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
2500mm Unwinding Frame Thermal Paper Poly Coating Machine ISO9001 19


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
