1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line

  • High Light

    1400mm Paper Coating Machine

    ,

    Double Side Paper Coating Machine

    ,

    0.6MPa NCR Paper Production Line

  • Certification
    CE, ISO9001, BV, ISO
  • Machine Width
    1400mm
  • Project
    Turn Key Project
  • Condition
    New
  • Size
    27000*4000*7000
  • Weight
    5 Tons
  • Finished Product
    Carbonless Paper
  • Warranty
    2 Years
  • Packing
    Wooden Box
  • After-sale Service
    Engineers Available
  • Voltage
    380V, 220V
  • Speed
    230m/min
  • Function
    Paper Coating, Chemical Coating
  • Rewind Diameter
    1150MM
  • Unwinding Diameter
    1000mm
  • Service
    Engineers Available
  • Product Name
    Carbonless Paper Coating Machine
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Model Number
    1400mm
  • Minimum Order Quantity
    1 set
  • Price
    500000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    60-90 working days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    10 sets per month

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line

FOCUS Brand 1400mm Double Side Coating NCR Paper Production Line





DESCRIPTION



FOCUS Brand 1400mm Double Side Coating NCR Paper Production Line



The drying system adopts the double-deck structure, it can effectively reduce the length of the paper that without support. This structure can successfully reduce the waste of base paper that results from unwinding and reeling, reduce the running resistance and the probability of base paper rupture that results from the tensile. The whole production has the advantages of compact form, simplicity of operation, less easily damaged parts and high yield etc.



TECHNICAL DATA



Items Parameters
Max. Parent Web Width 1400mm
Max. Parent Web Diameter 1150mm
Max. Rewinding Diameter 1100mm
Compress air pressure 0.6MPa
Base paper weight Range 40-250gsm
Max. Machine Speed 230m/min
Overall dimension 27000*4000*7000mm
Weight 5000kg
Voltage 220V, 380V




GENERAL STRUCTURE

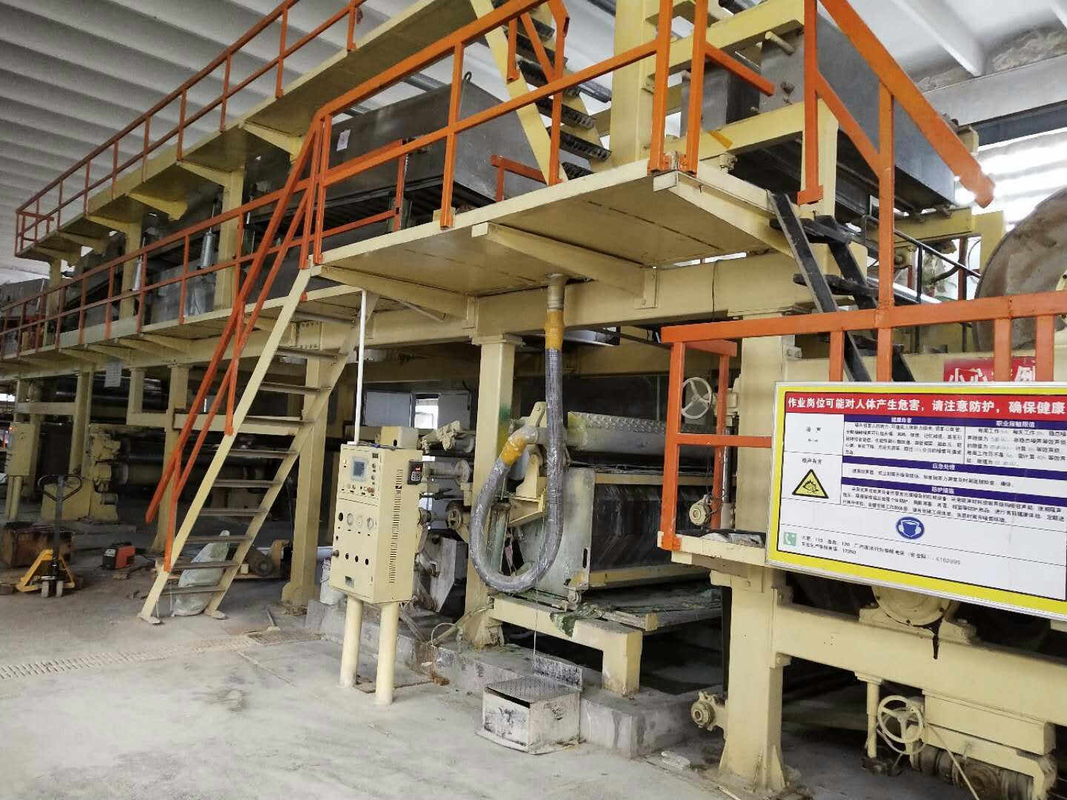

Double working position roll-over unwinding frame ( Automatic splicing device)→ No.1 Blade Combined measuring rod coater→hot air dry system (4mx3)→ Draw roll →1# Two roll calender→2# Blade Combined measuring rod coater→hot air dry system (4mx4)→ Draw roll→2# Two roll calender →3# Blade Combined measuring rod coater→ hot air dry system(4mx3)→Back water coater→Hot air dry system (4mx1) →φ1500 finishing cylinder (3 pieces)→Cold water roll→3# Two roll calendar→ Automatic splicing device→ Double working position turn over rewinding frame (automatic correction)

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 0









APPLICATION

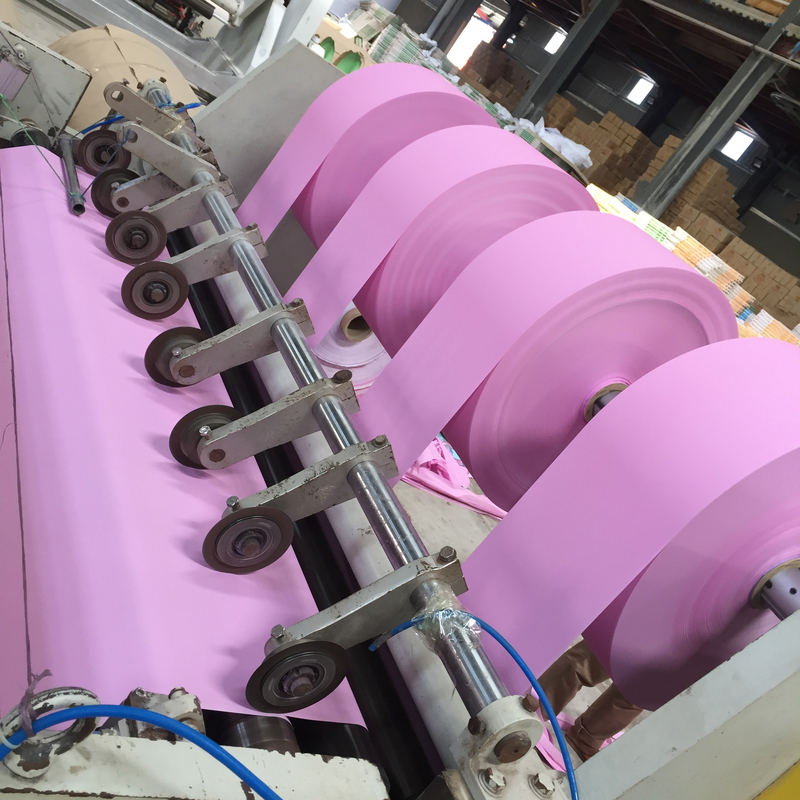

Thermal paper after coating

Thermal Paper Jumbo Roll

Thermal Paper POS Roll

Thermal Paper Label Roll

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 11400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 21400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 3

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 4
1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 5

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 61400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 7


The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 8

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 9

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 10




WHY CHOOSE US



1.) Professional Siemens quality control system

2.) Simple operation

3.) High degree of automation

4.) Turn key projects

5.) More than 20 years experience

6) Double working station

7) Super Calendar

8) High capacity, low consumption


1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 11
1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 12

COMPANY INFORMATION
1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 13

SUCCESSFUL MACHINE PROJECTS

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 141400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 15



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 16
1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 17

CUSTOMER FEEDBACK

1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 18
CERTIFICATE
1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 19

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
1400mm Double Side Paper Coating Machine 0.6MPa NCR Paper Production Line 20


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
