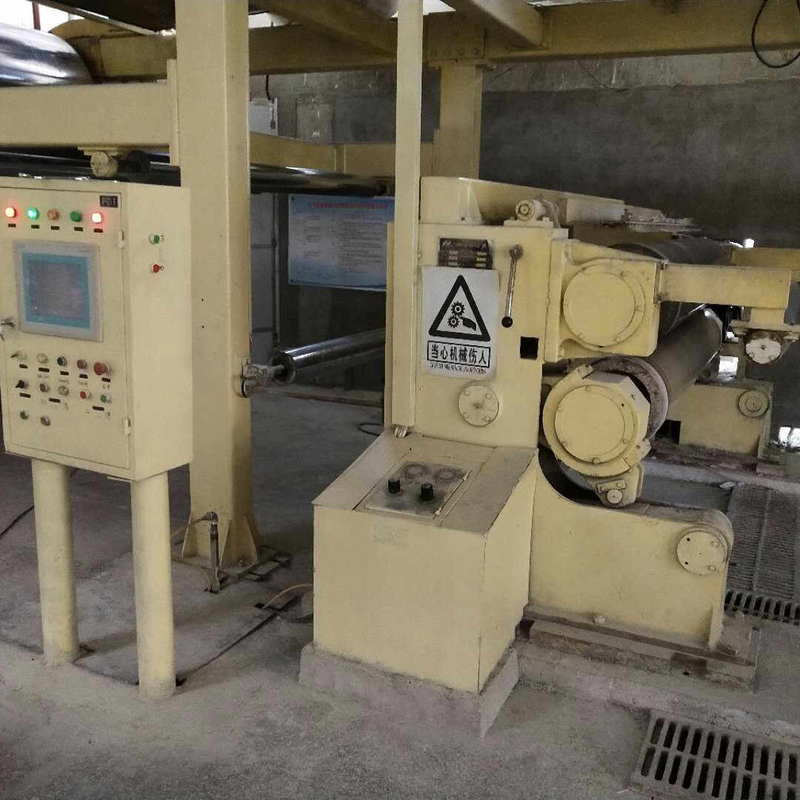

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll

  • High Light

    1092mm Paper Coating Machine 200gsm

    ,

    200gsm carbonles Paper Coating Machine sgs

    ,

    200gsm thermal paper roll machines

  • Certification
    CE, ISO9001, BV, ISO
  • Machine Width
    1092mm
  • Project
    Turn Key Project
  • Condition
    New
  • Size
    27620*4970*7060
  • Weight
    5 Tons
  • Finished Product
    NCR Paper
  • Warranty
    1 Year
  • Packing
    Wooden Box
  • After-sale Service
    Engineers Available
  • Voltage
    380V, 220V
  • Speed
    300m/min
  • Function
    Paper Coating, Chemical Coating
  • Rewind Diameter
    1150MM
  • Unwinding Diameter
    1200mm
  • Service
    Engineers Available
  • Product Name
    Double Side Coating Carbonless Paper Machine
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Model Number
    1092mm
  • Minimum Order Quantity
    1 set
  • Price
    500000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    60-90 working days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    10 sets per month

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll

FOCUS 1092mm Double side coating carbonless paper production line





DESCRIPTION



FOCUS 1092mm Double side coating carbonless paper production line





FOCUS brand 1092mm double side coating carbonless paper production line can achieve all the coating from base paper to final products in one time. The main structure are as following: double working position unwinding frame → air knife coater →hot air oven dryer → leveling dryer (single cylinder) → two rolls calender → air knife coater → hot air oven dryer → leveling dryer (four cylinder) →Automatic correction reeler.



TECHNICAL DATA



Items Parameters
Max. Parent Web Width 1092mm
Max. Parent Web Diameter 1150mm
Max. Rewinding Diameter 1200mm
Compress air pressure 0.6MPa
Base paper weight Range 40-250gsm
Max. Machine Speed 300m/min
Overall dimension 27620*4970*7060mm
Weight 5000kg
Voltage 220V, 380V




GENERAL STRUCTURE

Double working position roll-over unwinding frame ( Automatic splicing device)→ No.1 Blade Combined measuring rod coater→hot air dry system (4mx3)→ Draw roll →1# Two roll calender→2# Blade Combined measuring rod coater→hot air dry system (4mx4)→ Draw roll→2# Two roll calender →3# Blade Combined measuring rod coater→ hot air dry system(4mx3)→Back water coater→Hot air dry system (4mx1) →φ1500 finishing cylinder (3 pieces)→Cold water roll→3# Two roll calendar→ Automatic splicing device→ Double working position turn over rewinding frame (automatic correction)

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 0









1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 11092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 2

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 3
1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 4

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 51092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 6

MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE

Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 7

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 8

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 9




WHY CHOOSE US



1.) Professional Siemens quality control system

2.) Simple operation

3.) High degree of automation

4.) Turn key projects

5.) More than 20 years experience

6) Double working station

7) Super Calendar

8) High capacity, low consumption


1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 10
1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 11

COMPANY INFORMATION
1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 12

SUCCESSFUL MACHINE PROJECTS

1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 131092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 14



1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 15
1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 16


CERTIFICATE
1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 17

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
1092mm Carbonles Paper Coating Machine Double Side 200gsm Thermal Paper Roll 18


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
