310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine

  • High Light

    310m/min thermal roll slitting machine

    ,

    1400mm thermal roll slitting machine

    ,

    250gsm paper roll manufacturing machine

  • Certification
    CE, ISO9001, BV, ISO
  • Machine Width
    1400mm
  • Project
    Turn Key Project
  • Condition
    New
  • Size
    70000*6000*7000
  • Weight
    5 Tons
  • Finished Product
    Thermal Paper
  • Warranty
    1 Year
  • Packing
    Wooden Box
  • After-sale Service
    Engineers Available
  • Voltage
    380V, 220V
  • Speed
    310m/min
  • Function
    Paper Coating, Chemical Coating
  • Rewind Diameter
    1300MM
  • Unwinding Diameter
    1400mm
  • Service
    Engineers Available
  • Product Name
    Thermal Paper Coating Machine
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Model Number
    1400mm
  • Minimum Order Quantity
    1 set
  • Price
    900000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    60-90 working days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    10 sets per month

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine

FOUCS Brand 1400mm Thermal Paper Double-side Coating Machine





DESCRIPTION



FOUCS Brand 1400mm Thermal Paper Double-side Coating Machine



Paper-unwinding stand using hydraulic twin-roll paper-unwinding stand , equip with automatic splicer , replacement raw paper roll no need stop machine , provides efficiency and reduce paper damage probability. Drying system using double - sided blow drying box . paper uniformity be heated . avoid since uneven heating paper deformation , effect of paper quality . Calender machine : after coating , paper get in calender machine , maximum extent improve paper gloss and smoothness . paper gloss average 65-85% , after calender machine , can improve to 90-95%. Paper reeling machine using horizontal paper reeling machine , high speed , high quality roll paper . Drive system using electric motor drive , speed control by frequency variation , speed accuracy , high stability. Electrical control using electric cabinet and pneumatic valve , easy to operation and use.



TECHNICAL DATA



Items Parameters
Max. Parent Web Width 1400mm
Max. Parent Web Diameter 1300mm
Max. Rewinding Diameter 1400mm
Compress air pressure 0.6MPa
Base paper weight Range 40-250gsm
Max. Machine Speed 310m/min
Overall dimension 70000*6000*7000mm
Weight 5000kg
Voltage 220V, 380V




GENERAL STRUCTURE

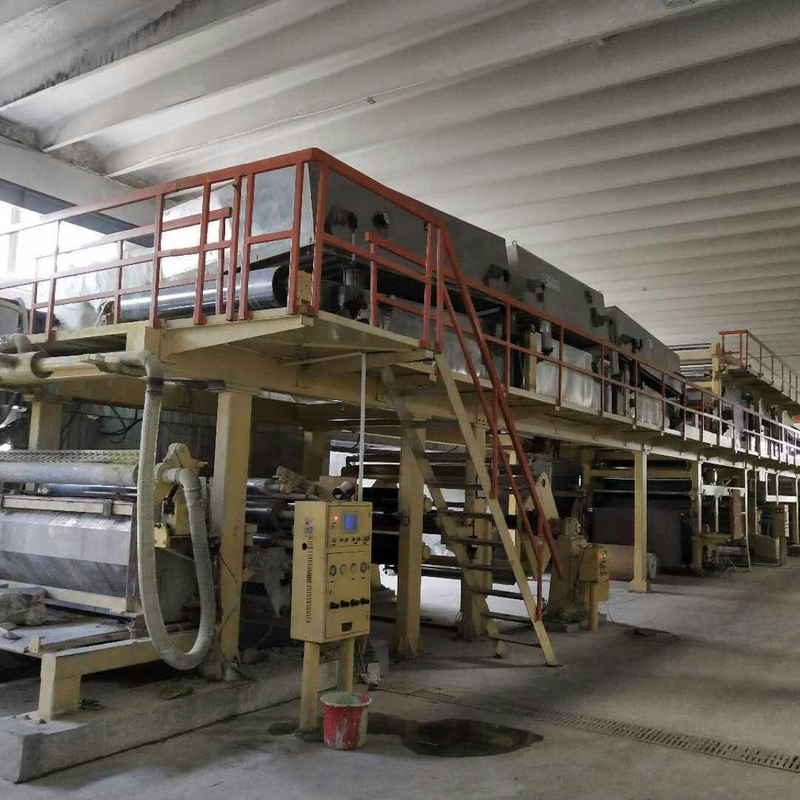

Double working position roll-over unwinding frame ( Automatic splicing device)→ No.1 Blade Combined measuring rod coater→hot air dry system (4mx3)→ Draw roll →1# Two roll calender→2# Blade Combined measuring rod coater→hot air dry system (4mx4)→ Draw roll→2# Two roll calender →3# Blade Combined measuring rod coater→ hot air dry system(4mx3)→Back water coater→Hot air dry system (4mx1) →φ1500 finishing cylinder (3 pieces)→Cold water roll→3# Two roll calendar→ Automatic splicing device→ Double working position turn over rewinding frame (automatic correction)

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 0









APPLICATION

Thermal paper after coating

Thermal Paper Jumbo Roll

Thermal Paper POS Roll

Thermal Paper Label Roll

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 1310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 2310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 3

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 4
310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 5

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 6

MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE

Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 7

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 8

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 9




WHY CHOOSE US



1.) Professional Siemens quality control system

2.) Simple operation

3.) High degree of automation

4.) Turn key projects

5.) More than 20 years experience

6) Double working station

7) Super Calendar

8) High capacity, low consumption


310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 10


COMPANY INFORMATION
310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 11

SUCCESSFUL MACHINE PROJECTS

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 12310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 13



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 14
310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 15

CUSTOMER FEEDBACK

310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 16
CERTIFICATE
310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 17

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
310m/Min 1400mm Thermal Roll Slitting Machine 250gsm Paper Roll Manufacturing Machine 18


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
