Rotary Automatic Label Die Cutting Machine Adhesive Sticker Label Laser Die Cutter

Rotary Automatic Label Die Cutting Machine Adhesive Sticker Label Laser Die Cutter

  • High Light

    Rotary Label Die Cutting Machine

    ,

    Automatic Label Die Cutting Machine

    ,

    70m/min label laser die cutter

  • Name
    Rotary Automatic Adhesive Sticker Label Die Cutting Machine
  • Warranty
    1 Year
  • Voltage
    380V, 220V
  • Speed
    70m/min
  • Machine Weight
    1200kg
  • Condition
    New
  • Service
    Engineers Available
  • Function
    Roll To Roll
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS, FSC
  • Model Number
    320mm
  • Minimum Order Quantity
    1 set
  • Price
    22000usd
  • Packaging Details
    wooden box
  • Delivery Time
    30-45 working days
  • Payment Terms
    L/C, T/T, D/A, D/P
  • Supply Ability
    50 sets per month

Rotary Automatic Label Die Cutting Machine Adhesive Sticker Label Laser Die Cutter

Rotary Automatic Adhesive Sticker Label Die Cutting Machine



The rotary label die cutting machine is equipped with high-precision register and die-cutting phase adjustment with high die-cutting precision and die-cutting technology, which achieves breakthroughs in die-cutting indentation and concave-convex imprinting technology. It has been widely used in various printing and packaging enterprises, realizing the one-time completion of web printing, die-cutting, waste discharge and rewinding.





Model 320Y 420Y
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm(7" - 18,5") 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m 1.57mx1.12mx1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ



Machine Features:
Rotary die-cutting machine is a new type of slitting machine with die-cutting function, it has a high-precision circular die-cutting system. This machine is suitable for blank self-adhesive labels. Die cutting and slitting can be done at one time. It has functions such as automatic meter counting, automatic shutdown, and photoelectric eye correction. This machine is characterized by compact structure, high speed, high efficiency, simple operation and stable operation.



Standard Configuration

Slitting device

One 3-inch unwinding air shaft Two 3-inch rewinding air shafts

Counting/meter counter

Two photoelectric eyes for deviation correction

8 round knives

One magnetic powder brake, two clutches





Product Application

This machine is used for self-adhesive, label, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials of die cutting and slitting and it is most widely uesd in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.



Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

Detailed drawing:

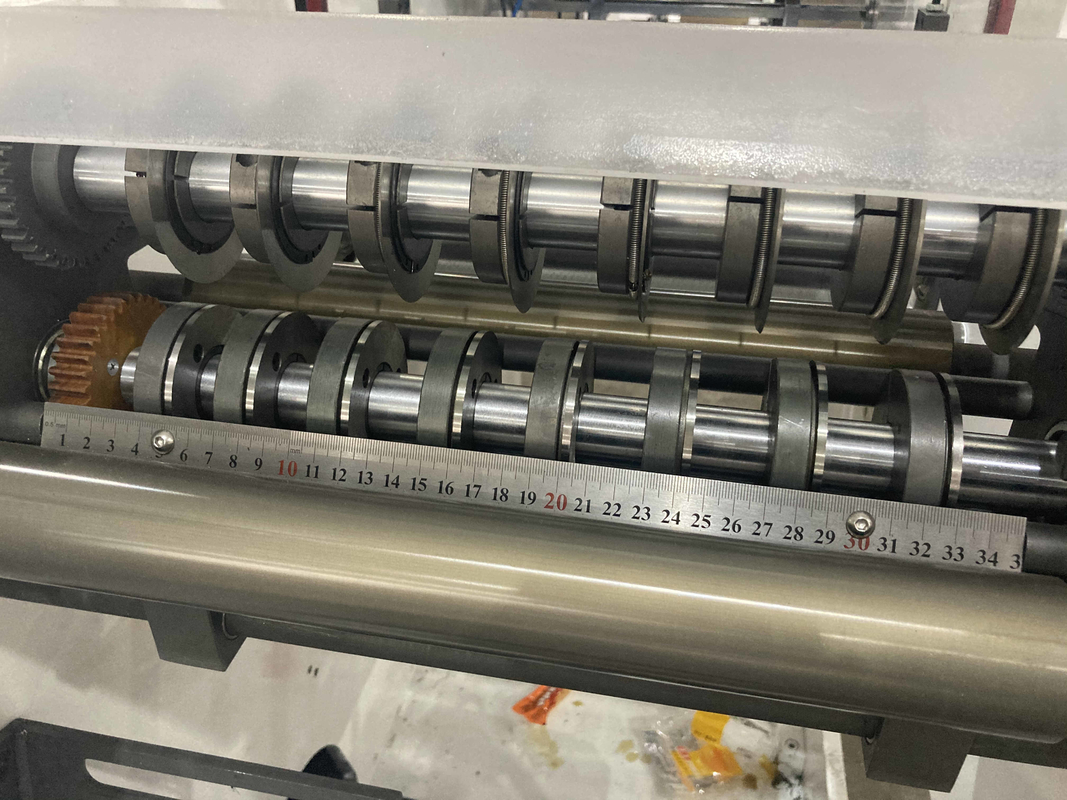

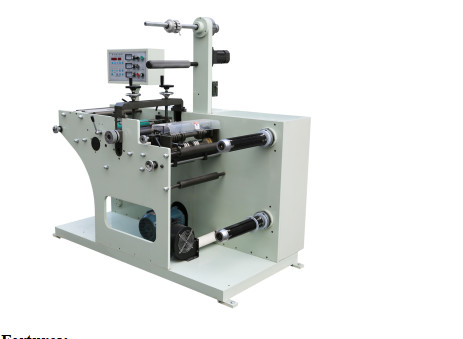

Rotary Automatic Label Die Cutting Machine Adhesive Sticker Label Laser Die Cutter 0Rotary Automatic Label Die Cutting Machine Adhesive Sticker Label Laser Die Cutter 1

Rotary Automatic Label Die Cutting Machine Adhesive Sticker Label Laser Die Cutter 2Rotary Automatic Label Die Cutting Machine Adhesive Sticker Label Laser Die Cutter 3Rotary Automatic Label Die Cutting Machine Adhesive Sticker Label Laser Die Cutter 4Rotary Automatic Label Die Cutting Machine Adhesive Sticker Label Laser Die Cutter 5
