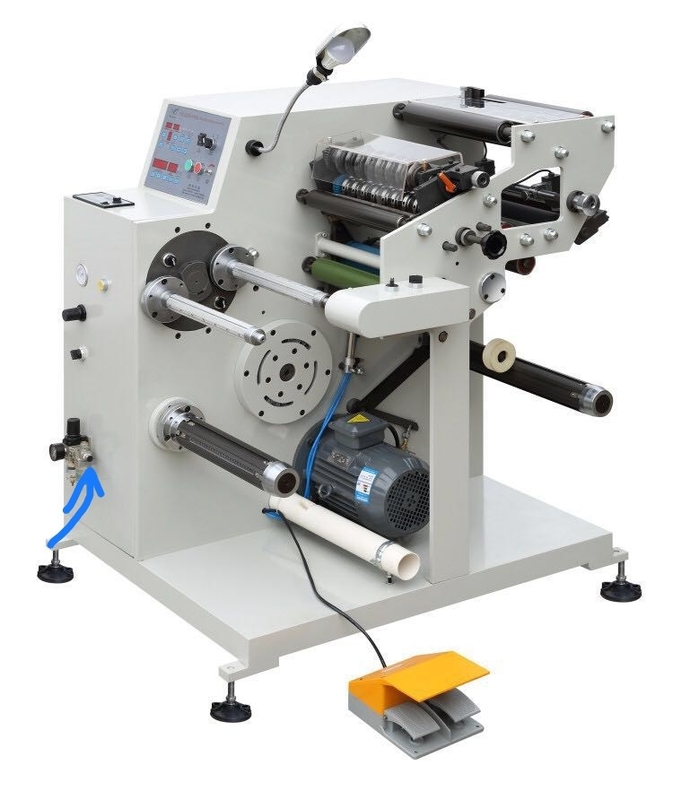

1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter

1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter

  • Highlight

    1200kg Label Die Cutting Machine

    ,

    70m/min Label Die Cutting Machine

    ,

    70m/min rotary label die cutter

  • Name
    FOCUS Brand Automatic 320mm Rotary Thermal Paper Label Die Cutting Machine
  • Warranty
    1 Year
  • Voltage
    380V
  • Speed
    80m/min
  • Machine Weight
    1200kg
  • Condition
    New
  • Service
    Engineers Available
  • Function
    Roll To Roll
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS, FSC
  • Model Number
    320mm
  • Minimum Order Quantity
    1 set
  • Price
    23000usd
  • Packaging Details
    wooden box
  • Delivery Time
    30-45 working days
  • Payment Terms
    L/C, T/T, D/A, D/P
  • Supply Ability
    50 sets per month

1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter

FOCUS Brand Automatic 320mm Rotary Thermal Paper Label Die Cutting Machine


Standard configuration:
· One slitting station
· With 1 pc 3" unwinding shaft 2 pcs 3" rewinding shafts
· With meter/number counter
· With two photoelectric eyes
· With 8 pcs rotary knife
· One magnetic brake, two magnetic clutches




Model 320mm
Die cutting speed 70m/min
Working width 0-320mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m
Machine weight 1200kgs
Voltage 220V 50HZ


Machine Features:
Rotary die-cutting machine is a new type of slitting machine with die-cutting function, it has a high-precision circular die-cutting system. This machine is suitable for blank self-adhesive labels. Die cutting and slitting can be done at one time. It has functions such as automatic meter counting, automatic shutdown, and photoelectric eye correction. This machine is characterized by compact structure, high speed, high efficiency, simple operation and stable operation.

Standard Configuration
Slitting device
One 3-inch unwinding air shaft Two 3-inch rewinding air shafts
Counting/meter counter
Two photoelectric eyes for deviation correction
8 round knives
One magnetic powder brake, two clutches


Product Application
This machine is used for self-adhesive, label, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials of die cutting and slitting and it is most widely uesd in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.
Detailed drawing:
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 01200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 1
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 21200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 31200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 41200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 5

Application
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 61200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 7
MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE

Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request

1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 8
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 9
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 10

1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 11
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 12
COMPANY INFORMATION
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 13

SUCCESSFUL MACHINE PROJECTS
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 141200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 15

THERMAL PAPER COATING MACHINE PRODUCTION PROCESS
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 16
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 17

CUSTOMER FEEDBACK
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 18
FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
1200kg 500mm Label Die Cutting Machine 70m/Min Rotary Label Die Cutter 19
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
