420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine

420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine

  • High Light

    420mm Label Die Cutting Machine

    ,

    thermal paper Label Die Cutting Machine

    ,

    die cut vinyl sticker machine ODM

  • Name
    FOCUS Brand Automatic 420mm Rotary Thermal Paper Label Die Cutting Machine
  • Warranty
    1 Year
  • Voltage
    380V, 60HZ
  • Speed
    80m/min
  • Machine Weight
    1500kg
  • Condition
    New
  • Service
    Online Service
  • Function
    Roll To Roll
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS, FSC
  • Model Number
    420mm
  • Minimum Order Quantity
    1 set
  • Price
    23500usd
  • Packaging Details
    wooden box
  • Delivery Time
    30-45 working days
  • Payment Terms
    L/C, T/T, D/A, D/P
  • Supply Ability
    50 sets per month

420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine

FOCUS Brand Automatic 420mm Rotary Thermal Paper Label Die Cutting Machine



Die-cutting machines are mainly divided into three types: round pressing, round pressing and flat pressing according to the different imprinting forms. According to the form of template placement, it can be divided into vertical and horizontal. There are two kinds of manual and automatic according to the degree of automation.



At present, most of the advanced die-cutting equipment is developing towards the fully automatic combination of printing and die-cutting. The circular-pressing-circle automatic die-cutting machine and the printing machinery are connected into an automatic production line. This production line consists of four main parts, namely the material part, printing part, die-cutting part, sending part, etc.




Model 420mm
Die cutting speed 80m/min
Working width 0-420mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m
Machine weight 1500kgs
Voltage 380V 60HZ


Machine Features:
420mm Rotary die-cutting machine is a new type of slitting machine with die-cutting function, it has a high-precision circular die-cutting system. This machine is suitable for blank self-adhesive labels. Die cutting and slitting can be done at one time. It has functions such as automatic meter counting, automatic shutdown, and photoelectric eye correction. This machine is characterized by compact structure, high speed, high efficiency, simple operation and stable operation.

Standard Configuration
Slitting device
One 3-inch unwinding air shaft Two 3-inch rewinding air shafts
Counting/meter counter
Two photoelectric eyes for deviation correction
8 round knives
One magnetic powder brake, two clutches


Product Application
This machine is used for self-adhesive, label, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials of die cutting and slitting and it is most widely uesd in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

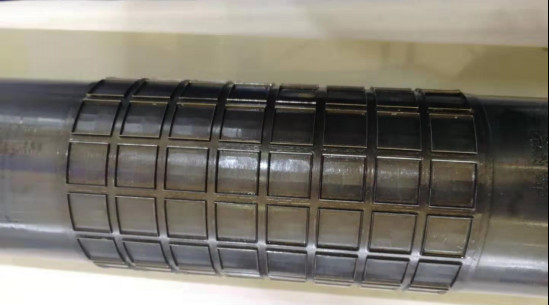

Detailed drawing:

420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 0


420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 1
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 2420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 3

Application
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 4
MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE

Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request

420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 5
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 6
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 7

420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 8
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 9
COMPANY INFORMATION
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 10

SUCCESSFUL MACHINE PROJECTS
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 11420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 12

THERMAL PAPER COATING MACHINE PRODUCTION PROCESS
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 13
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 14

CUSTOMER FEEDBACK
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 15
FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine 16
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
