Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging

Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging

  • High Light

    Three Wire cylinder mold paper machine

    ,

    3200mm cylinder mold paper machine

    ,

    paper craft bag making 455m/min

  • Product Type
    Paper Board Of Kraft Liner
  • GSM
    80-355g
  • Net Paper Width
    3200mm( Max 3400mm )
  • Working Speed
    240-410m/min
  • Design Speed
    455m/min
  • Layout
    2 Floor
  • Capacity
    201 Ton/day
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS
  • Model Number
    3200
  • Minimum Order Quantity
    1 set
  • Price
    10000000 usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    5 sets per month
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    1 sets per month

Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging

FOCUS Fully Automatic 3200mm Three Wire Kraft Paper Bag Packaging Paper Making Machine

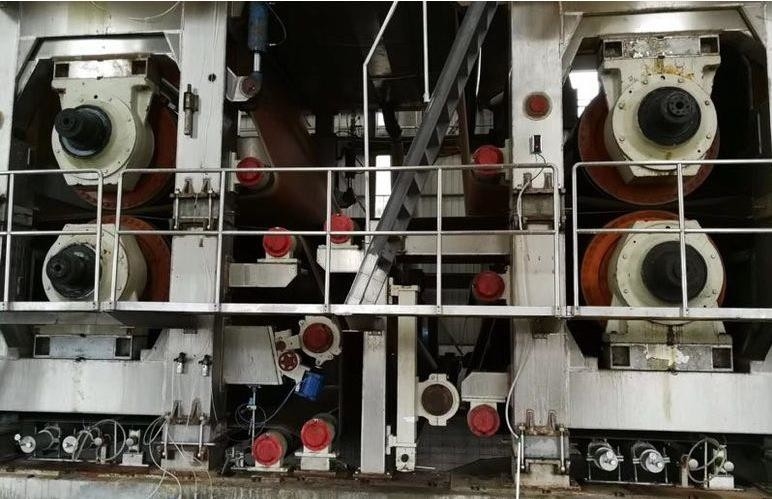

This machine is used for making 150-180g/m2 paper. It adopts air-cushioned headbox. The forming part adopts the form of three fourdrinier nets. The press part adopts one vacuum suction, one vacuum press and two blind hole presses. The press part adopts hydraulic pressure and Pneumatic pressurization system, the drying section adopts a drying cylinder with good ventilation performance directly connected to the frame, and the paper machine adopts a closed hood and a fully digitally controlled AC variable frequency sub-transmission scheme.



Technical Data



Product Types Kraft liner paper board,corrugated paper.
GSM 90-350g/m2

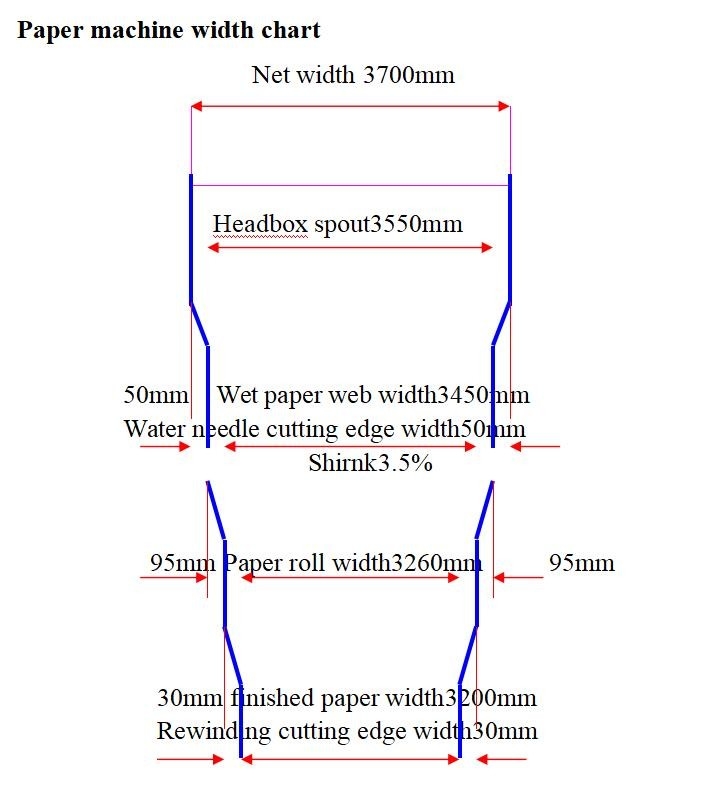

Net Paper Width 3200mm(Max 3400mm)
Paper Width 3480mm(In the reel machine)
Working Speed 260-400m/min
Design Speed 450m/min
Dynamic Balance Speed 600m/min
Main Bearings Distance 4350mm,4500mm
Driven Function Partial driven,AC converter
Layout 2 floors layout setup,right hand machine



Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 0Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 1

Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 2





































































Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 3



Packaging Details


Wooden box



Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 4Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 5





Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 6

Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 7


Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 8

COMPANY INFORMATION
Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 9

SUCCESSFUL MACHINE PROJECTS

Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 10Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 11



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 12



Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 13

CUSTOMER FEEDBACK

Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 14
CERTIFICATE
Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 15

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
Three Wire 3200mm Cylinder Mold Paper Machine Paper Craft Bag Making Packaging 16


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
