Rotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut Unit
-
Highlight
Rotary label die cutting machine
,Automatic adhesive label slitter
,High-precision die cut unit
-
Die Cutting Speed70m/min
-
Working Width0-420mm
-
Maximum Unwinding Diameter500mm
-
Maximum Winding Diameter480mm
-
Die Cut Length178-470mm(7" - 18,5")
-
Machine Size1.57mx1.02mx1.61m
-
Machine Weight1800kgs
-
Voltage220V 50HZ
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM-320&FM-420
-
Minimum Order Quantity1
-
Price8500
-
Packaging DetailsSea-Worthy Wooden Case
-
Delivery Time30-50 days
-
Payment TermsL/C, T/T
Rotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut Unit
Rotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut Unit
Key Specifications
Die cutting speed
70m/min
Working width
0-420mm
Maximum unwinding diameter
500mm
Maximum winding diameter
480mm
Die Cut Length
178-470mm (7" - 18.5")
Machine size
1.57m x 1.02m x 1.61m
Machine weight
1800kgs
Voltage
220V 50HZ
Product Overview
This precision processing equipment specializes in fixed length cutting and rewinding of roll label materials. Through integrated production line design, it seamlessly connects printing, molding, waste separation, and finished product winding processes, working with an intelligent control interface for efficient and convenient production operations.
Key Features
- High-precision circular die-cutting system
- Suitable for blank self-adhesive labels
- Simultaneous die cutting and slitting capability
- Automatic meter counting with shutdown function and photoelectric eye correction
- Compact structure with fast speed, high efficiency, simple operation and stable performance
Technical Specifications
| Model | FM-320 | FM-420 |
|---|---|---|
| Die cutting speed | 70m/min | 70m/min |
| Working width | 0-320mm | 0-420mm |
| Maximum unwinding diameter | 500mm | 500mm |
| Maximum winding diameter | 480mm | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") | 178-470mm (7" - 18.5") |
| Machine size | 1.57m x 1.02m x 1.61m | 1.57m x 1.12m x 1.61m |
| Machine weight | 1200kgs | 1800kgs |
| Voltage | 220V 50HZ | 220V 50HZ |
Standard Configuration
- Slitting device
- One 3-inch unwinding air shaft
- Two 3-inch rewinding air shafts
- Counting/meter counter
- Two photoelectric eyes for deviation correction
- 8 round knives
- One magnetic powder brake and two clutches
Applications
Ideal for die-cutting and slitting of self-adhesive labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

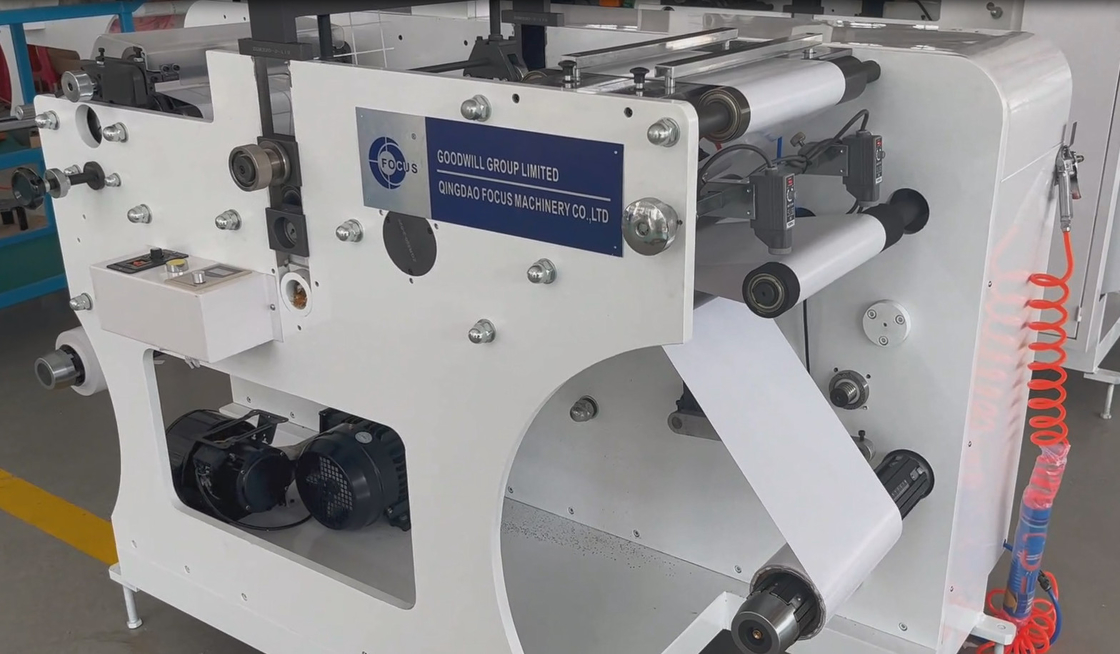

Product Images
