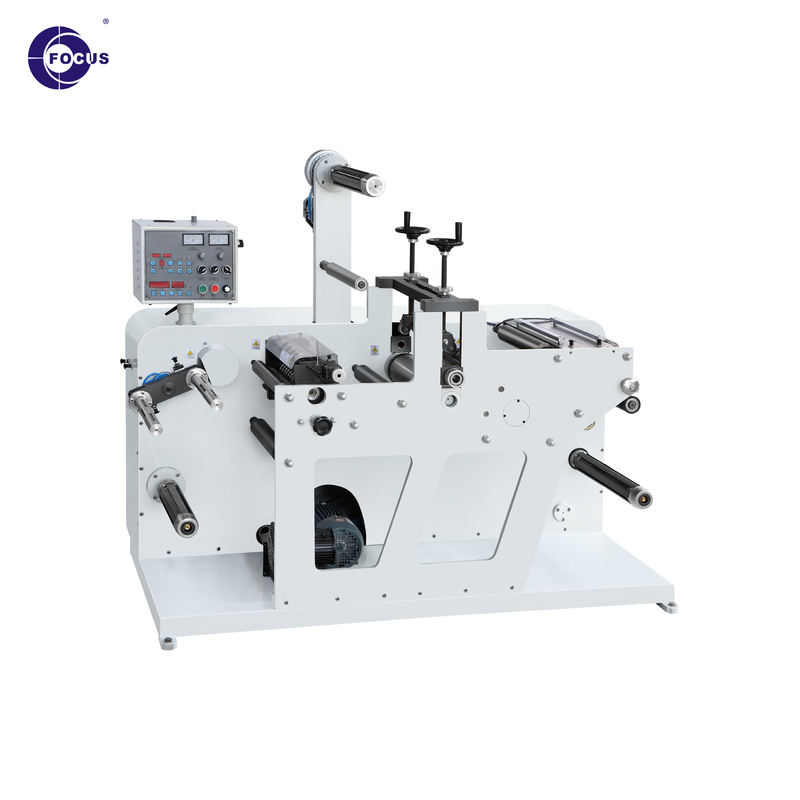

FP-320 High Speed Label Die Cutting And Slitting Machine

FP-320 High Speed Label Die Cutting And Slitting Machine

  • High Light

    Label Die Cutting Slitting Machine

    ,

    2.2kw Label Die Cutting Machine

    ,

    Servo Motor Label Slitting Machine

  • Color
    White
  • Computerized
    Yes
  • Drivers
    Servo Motor
  • Key Selling Points
    Automatic
  • Machinery Name
    FP-320
  • Function
    2.2kw
  • Production Capacity
    Label Cutting
  • Raw Material
    Stainless Steel
  • Dimension(L*W*H)
    1700*1000*1800mm
  • Finished Products
    Label
  • Applicable
    Manufacturing Plant, Printing Shops, Other
  • Place of Origin
    CHINA
  • Brand Name
    FOCUS
  • Model Number
    FP-320
  • Minimum Order Quantity
    1 set
  • Price
    $ 25000, set
  • Delivery Time
    30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    200 set/sets per Month

FP-320 High Speed Label Die Cutting And Slitting Machine



FP-320 High Speed Label Die Cutting and Slitting Machine







  Procduct Description

FP-320 High Speed Label Die Cutting And Slitting Machine 0



The round to round die-cutting technology is equipped with high-precision register and die-cutting phase adjustment with high die-cutting precision and die-cutting technology, achieving breakthroughs in die-cutting indentation and concave-convex imprinting technology.It has been widely used in various printing and packaging enterprises, realizing the one-time completion of web printing, die-cutting, waste discharge and rewinding.







  Machine Feature



1. Hob die-cutting machine is a new type of slitting machine with die-cutting function, it has a high-precision circular die-cutting system.

2. Suitable for blank self-adhesive labels.

3. Die cutting and slitting can be done at one time.

4. Automatic meter counting, automatic shutdown, photoelectric eye correction and other functions.

5. The whole machine is compact in structure, fast in speed, high in efficiency, simple in operation and stable in operation.







  Technical Parameter



Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm(7" - 18,5") 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m 1.57mx1.12mx1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ







  Standard Conflguration

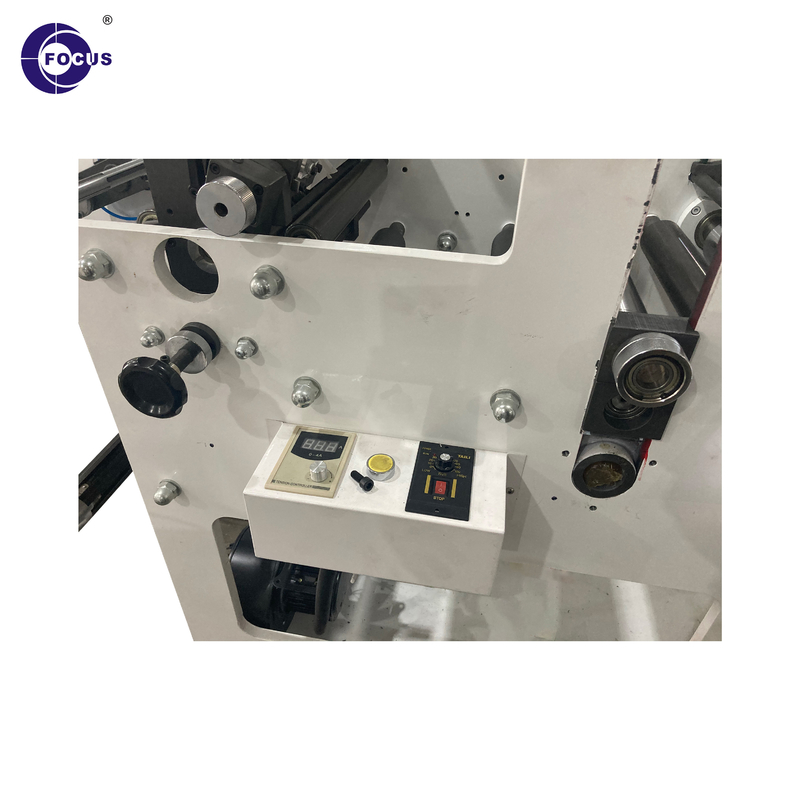

FP-320 High Speed Label Die Cutting And Slitting Machine 1



  Packaging & Shipping

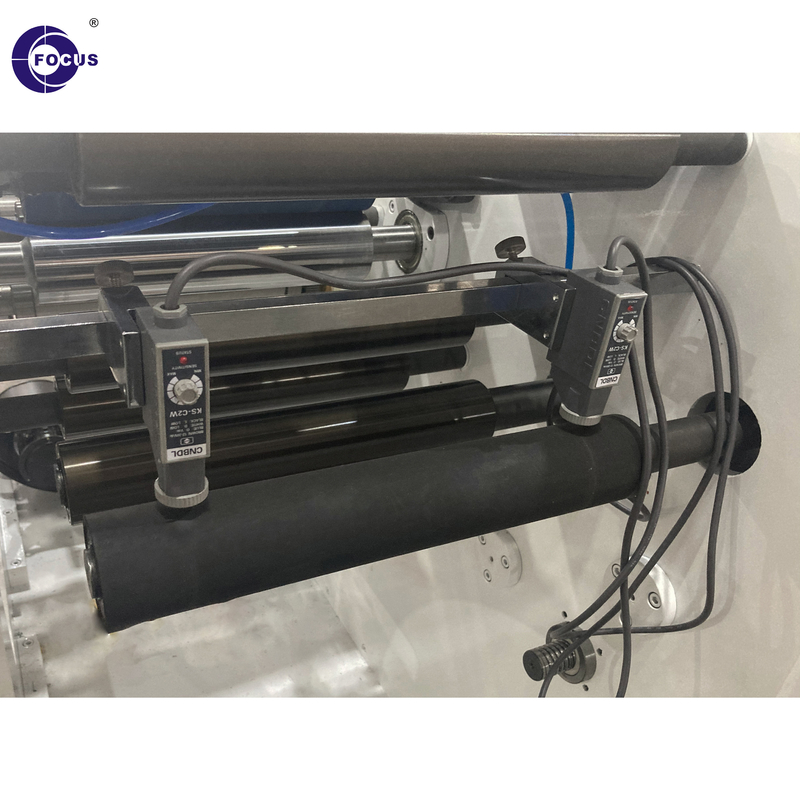

FP-320 High Speed Label Die Cutting And Slitting Machine 2FP-320 High Speed Label Die Cutting And Slitting Machine 3

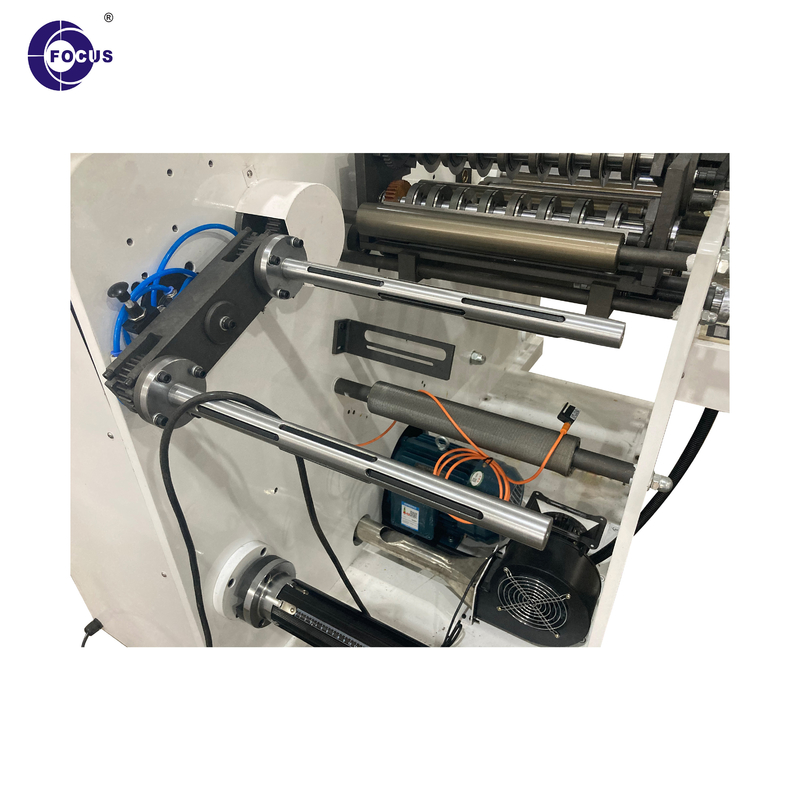

FP-320 High Speed Label Die Cutting And Slitting Machine 4
