Automatic Roll Label Die Cutting Slitting Machine for Self-Adhesive Labels
-
Highlight
Automatic label die cutting machine
,Roll label slitting machine
,Self-adhesive label cutter
-
Die Cutting Speed70m/min
-
Working Width0-420mm
-
Maximum Unwinding Diameter500mm
-
Maximum Winding Diameter480mm
-
Die Cut Length178-470mm(7" - 18,5")
-
Machine Size1.57mx1.02mx1.61m
-
Machine Weight1800kgs
-
Voltage220V 50HZ
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM-320&FM-420
-
Minimum Order Quantity1
-
Price8500
-
Packaging DetailsSea-Worthy Wooden Case
-
Delivery Time30-50 days
-
Payment TermsL/C, T/T
Automatic Roll Label Die Cutting Slitting Machine for Self-Adhesive Labels
Automatic Roll Label Die Cutting Slitting Machine for Self-Adhesive Labels
Product Specifications
| Attribute | Value |
|---|---|
| Die cutting speed | 70m/min |
| Working width | 0-420mm |
| Maximum unwinding diameter | 500mm |
| Maximum winding diameter | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") |
| Machine size | 1.57m × 1.02m × 1.61m |
| Machine weight | 1800kgs |
| Voltage | 220V 50HZ |
Product Overview
In the deep processing of label paper, this die-cutting machine can accurately cut and mold large rolls of raw materials. The entire system can continuously complete printing processing, shape die-cutting, waste removal, and finished product rewinding, with automation control for a simple and efficient operating experience.
Key Features
- High-precision circular die-cutting system
- Suitable for blank self-adhesive labels
- Die cutting and slitting can be done simultaneously
- Automatic meter counting, automatic shutdown, photoelectric eye correction
- Compact structure, fast speed, high efficiency, simple operation and stable performance
Technical Parameters
| Model | FM-320 | FM-420 |
|---|---|---|
| Die cutting speed | 70m/min | 70m/min |
| Working width | 0-320mm | 0-420mm |
| Maximum unwinding diameter | 500mm | 500mm |
| Maximum winding diameter | 480mm | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") | 178-470mm (7" - 18.5") |
| Machine size | 1.57m × 1.02m × 1.61m | 1.57m × 1.12m × 1.61m |
| Machine weight | 1200kgs | 1800kgs |
| Voltage | 220V 50HZ | 220V 50HZ |
Standard Configuration
- Slitting device
- One 3-inch unwinding air shaft
- Two 3-inch rewinding air shafts
- Counting/meter counter
- Two photoelectric eyes for deviation correction
- 8 round knives
- One magnetic powder brake, two clutches
Applications
Suitable for die-cutting and slitting of self-adhesive labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.
Product Images

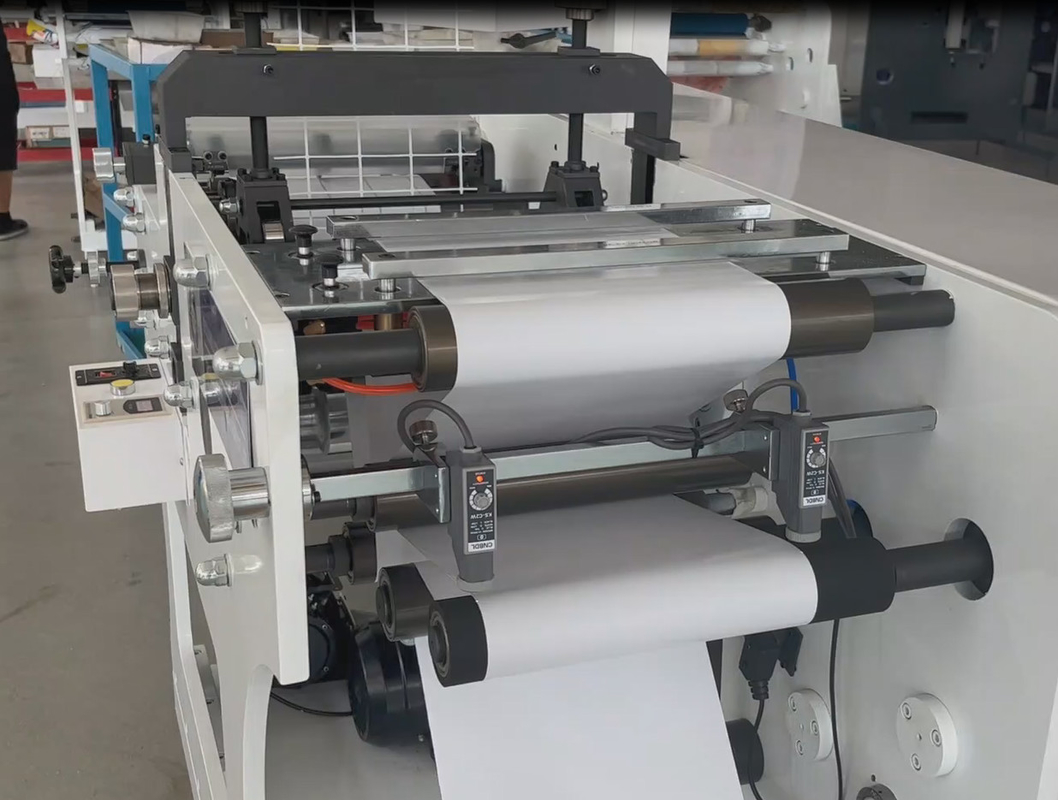

Die-cutting platform (die-cutting knives are not included in the price)
