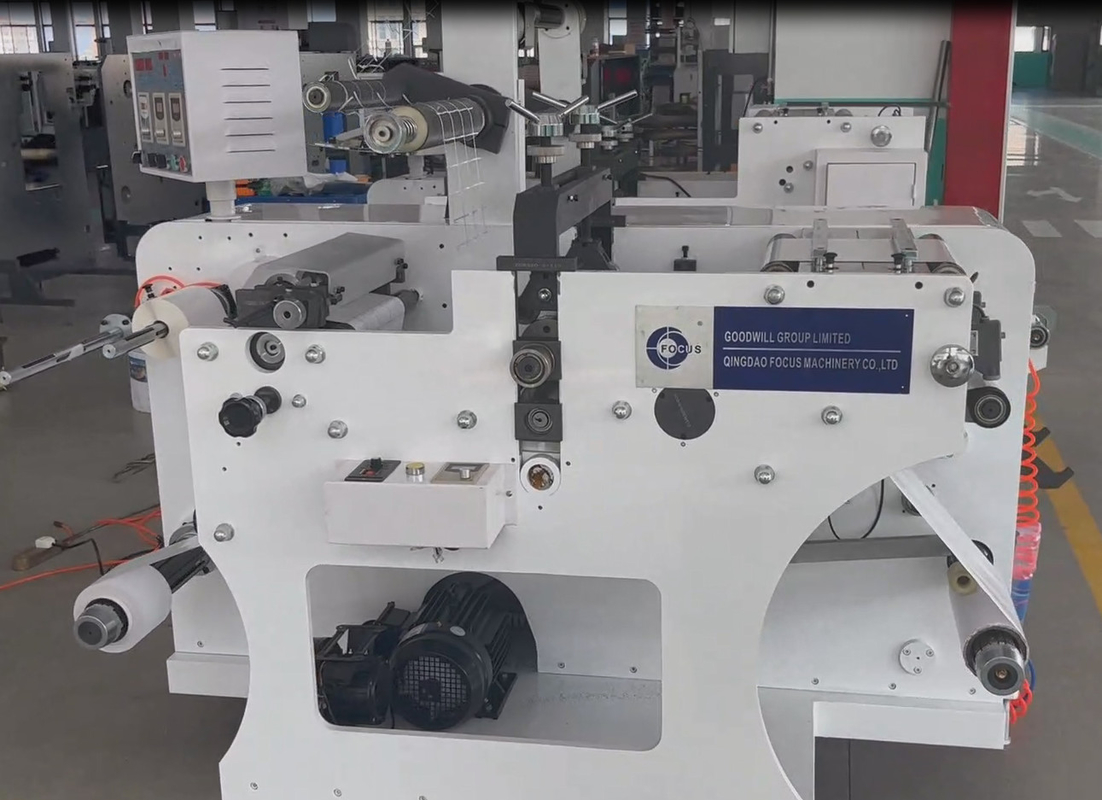

High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min
-
Highlight
High Precision Label Die Cutting Machine
,Adhesive Labels Slitting Machine
,70m/min Die Cutting Machine
-
Die Cutting Speed70m/min
-
Working Width0-420mm
-
Maximum Unwinding Diameter500mm
-
Maximum Winding Diameter480mm
-
Die Cut Length178-470mm(7" - 18,5")
-
Machine Size1.57mx1.02mx1.61m
-
Machine Weight1800kgs
-
Voltage220V 50HZ
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM-320&FM-420
-
Minimum Order Quantity1
-
Price8500
-
Packaging DetailsSea-Worthy Wooden Case
-
Delivery Time30-50 days
-
Payment TermsL/C, T/T
High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min
| Attribute | Value |
|---|---|
| Die cutting speed | 70m/min |
| Working width | 0-420mm |
| Maximum unwinding diameter | 500mm |
| Maximum winding diameter | 480mm |
| Die Cut Length | 178-470mm(7" - 18,5") |
| Machine size | 1.57mx1.02mx1.61m |
| Machine weight | 1800kgs |
| Voltage | 220V 50HZ |
The die-cutting system developed specifically for the label manufacturing industry mainly handles the cutting and packaging of large-sized roll paper. It innovatively integrates printing, forming, waste cleaning, winding and other processes, and is equipped with an automatic control system that combines ease of use and high production capacity.
- High-precision circular die-cutting system
- Suitable for blank self-adhesive labels
- Die cutting and slitting can be done at same time
- Automatic meter counting, automatic shutdown, photoelectric eye correction
- Compact structure, fast speed, high efficiency, simple operation and stable operation
| Model | FM-320 | FM-420 |
|---|---|---|
| Die cutting speed | 70m/min | 70m/min |
| Working width | 0-320mm | 0-420mm |
| Maximum unwinding diameter | 500mm | 500mm |
| Maximum winding diameter | 480mm | 480mm |
| Die Cut Length | 178-470mm(7" - 18,5") | 178-470mm(7" - 18,5") |
| Machine size | 1.57mx1.02mx1.61m | 1.57mx1.12mx1.61m |
| Machine weight | 1200kgs | 1800kgs |
| Voltage | 220V 50HZ | 220V 50HZ |
- Slitting device
- One 3-inch unwinding air shaft
- Two 3-inch rewinding air shafts
- Counting/meter counter
- Two photoelectric eyes for deviation correction
- 8 round knives
- One magnetic powder brake, two clutches
Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.
Die-cutting platform (die-cutting knives are not included in the price):
Our products are sold all over the world, you can rest assured.
