Thermal Transfer Paper Sticker Roll Kiss Cut Die Cutting Machine for Labels
-
Highlight
Thermal transfer sticker Die Cutting Machine
,Kiss cut label machine
,label maker Die Cutting Machine
-
Die Cutting Speed70m/min
-
Working Width0-420mm
-
Maximum Unwinding Diameter500mm
-
Maximum Winding Diameter480mm
-
Die Cut Length178-470mm(7" - 18,5")
-
Machine Size1.57mx1.02mx1.61m
-
Machine Weight1800kgs
-
Voltage220V 50HZ
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM-320&FM-420
-
Minimum Order Quantity1
-
Price8500
-
Packaging DetailsSea-Worthy Wooden Case
-
Delivery Time30-50 days
-
Payment TermsL/C,T/T
Thermal Transfer Paper Sticker Roll Kiss Cut Die Cutting Machine for Labels
Thermal Transfer Paper Sticker Roll Kiss Cut Die Cutting Machine for Labels
Key Specifications
| Attribute | Value |
|---|---|
| Die cutting speed | 70m/min |
| Working width | 0-420mm |
| Maximum unwinding diameter | 500mm |
| Maximum winding diameter | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") |
| Machine size | 1.57m x 1.02m x 1.61m |
| Machine weight | 1800kgs |
| Voltage | 220V 50HZ |
Product Overview
This specialized die-cutting machine revolutionizes label production by integrating printing, die-cutting, waste disposal, and rewinding into a continuous automated process. The intelligent control system ensures efficient, stable operation for high-volume label manufacturing.
Key Features
- High-precision circular die-cutting system for accurate label production
- Optimized for blank self-adhesive labels and various roll materials
- Simultaneous die-cutting and slitting capability
- Automated functions including meter counting, shutdown, and photoelectric eye correction
- Compact industrial design with fast operation speed and simple controls
Technical Parameters
| Model | FM-320 | FM-420 |
|---|---|---|
| Die cutting speed | 70m/min | 70m/min |
| Working width | 0-320mm | 0-420mm |
| Maximum unwinding diameter | 500mm | 500mm |
| Maximum winding diameter | 480mm | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") | 178-470mm (7" - 18.5") |
| Machine size | 1.57m x 1.02m x 1.61m | 1.57m x 1.12m x 1.61m |
| Machine weight | 1200kgs | 1800kgs |
| Voltage | 220V 50HZ | 220V 50HZ |
Standard Configuration
- Slitting device
- One 3-inch unwinding air shaft + Two 3-inch rewinding air shafts
- Counting/meter counter
- Two photoelectric eyes for deviation correction
- 8 round knives
- One magnetic powder brake and two clutches
Applications
Ideal for processing self-adhesive labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper/aluminum foil, and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, and plastic industries.

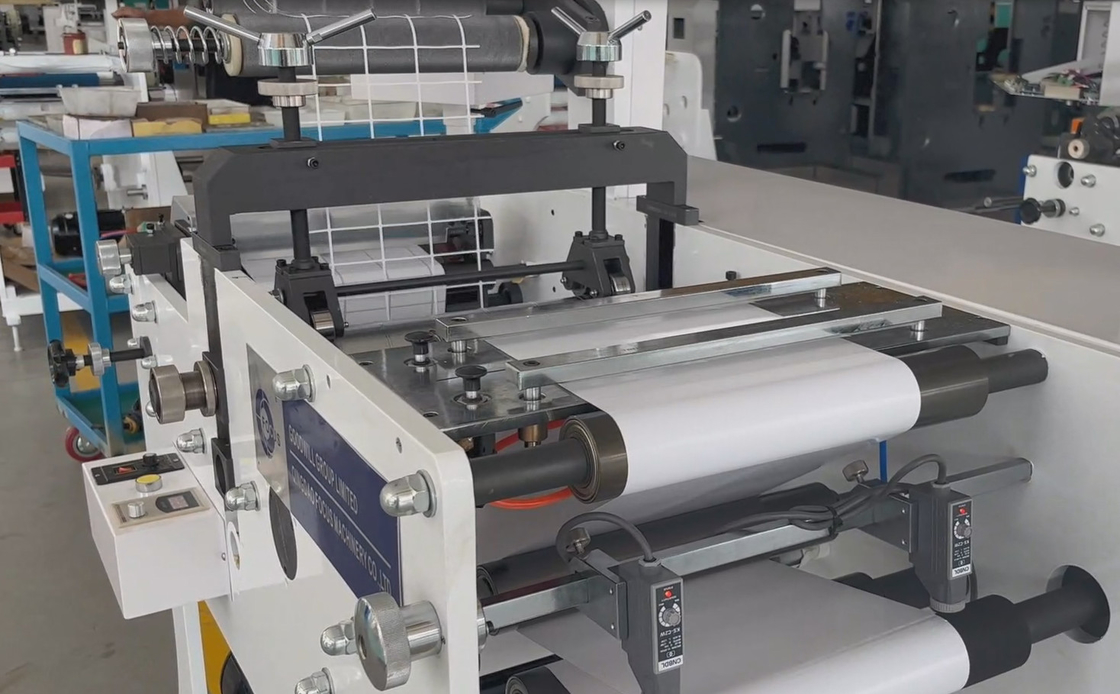

Product Images
