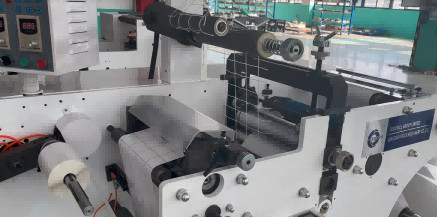

Automatic Paper Slitting Rewinding Machine with Rotary Die Cutting for Labels
-
Highlight
Automatic paper slitting machine
,Rotary die cutting machine
,Label rewinding machine
-
Die Cutting Speed70m/min
-
Working Width0-420mm
-
Maximum Unwinding Diameter500mm
-
Maximum Winding Diameter480mm
-
Die Cut Length178-470mm(7" - 18,5")
-
Machine Size1.57mx1.02mx1.61m
-
Machine Weight1800kgs
-
Voltage220V 50HZ
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM-320&FM-420
-
Minimum Order Quantity1
-
Price8500
-
Packaging DetailsSea-Worthy Wooden Case
-
Delivery Time30-50 days
-
Payment TermsL/C, T/T
Automatic Paper Slitting Rewinding Machine with Rotary Die Cutting for Labels
Automatic Paper Slitting Rewinding Machine with Rotary Die Cutting for Labels
Product Specifications
| Attribute | Value |
|---|---|
| Die cutting speed | 70m/min |
| Working width | 0-420mm |
| Maximum unwinding diameter | 500mm |
| Maximum winding diameter | 480mm |
| Die Cut Length | 178-470mm(7" - 18,5") |
| Machine size | 1.57mx1.02mx1.61m |
| Machine weight | 1800kgs |
| Voltage | 220V 50HZ |
Product Overview
The die cutting machine is professional paper processing equipment which is used to process blank label roll, covering functions such as unwinding, die-cutting, slitting, and rewinding. It ensures precise cutting of paper and is suitable for industries such as packaging and printing, assisting in efficient and low-cost production.
Key Features
- High-precision circular die-cutting system
- Suitable for blank self-adhesive labels
- Die cutting and slitting can be done at the same time
- Automatic meter counting, automatic shutdown, photoelectric eye correction
- Compact structure, fast speed, high efficiency, simple and stable operation
Technical Parameters
| Model | FM-320 | FM-420 |
|---|---|---|
| Die cutting speed | 70m/min | 70m/min |
| Working width | 0-320mm | 0-420mm |
| Maximum unwinding diameter | 500mm | 500mm |
| Maximum winding diameter | 480mm | 480mm |
| Die Cut Length | 178-470mm(7" - 18,5") | 178-470mm(7" - 18,5") |
| Machine size | 1.57mx1.02mx1.61m | 1.57mx1.12mx1.61m |
| Machine weight | 1200kgs | 1800kgs |
| Voltage | 220V 50HZ | 220V 50HZ |
Standard Configuration
- Slitting device
- One 3-inch unwinding air shaft
- Two 3-inch rewinding air shafts
- Counting/meter counter
- Two photoelectric eyes for deviation correction
- 8 round knives
- One magnetic powder brake, two clutches
Applications
Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.
Product Images
