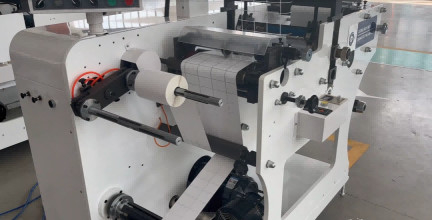

Fully Automatic Rotary Die Cutting and Slitting Machine for Self-Adhesive Labels
-
Highlight
Fully Automatic Label Die Cutting Machine
,Rotary Die Cutting Machine for Labels
,Self-Adhesive Label Slitting Machine
-
Die Cutting Speed70m/min
-
Working Width0-420mm
-
Maximum Unwinding Diameter500mm
-
Maximum Winding Diameter480mm
-
Die Cut Length178-470mm(7" - 18,5")
-
Machine Size1.57mx1.02mx1.61m
-
Machine Weight1800kgs
-
Voltage220V 50HZ
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM-320&FM-420
-
Minimum Order Quantity1
-
Price8500
-
Packaging DetailsSea-Worthy Wooden Case
-
Delivery Time30-50 days
-
Payment TermsL/C, T/T
Fully Automatic Rotary Die Cutting and Slitting Machine for Self-Adhesive Labels
| Attribute | Value |
|---|---|
| Die cutting speed | 70m/min |
| Working width | 0-420mm |
| Maximum unwinding diameter | 500mm |
| Maximum winding diameter | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") |
| Machine size | 1.57m x 1.02m x 1.61m |
| Machine weight | 1800kgs |
| Voltage | 220V 50HZ |
The high-precision rotary die-cutting and slitting machine is designed specifically for the self-adhesive label industry, capable of completing die-cutting, laminating (optional), and longitudinal cutting processes in one operation. Equipped with intelligent counting, automatic shutdown, and photoelectric correction system, this machine features streamlined structure, efficient and stable operation, user-friendly controls, and excellent cutting accuracy.
- High-precision circular die-cutting system
- Suitable for blank self-adhesive labels
- Simultaneous die cutting and slitting capability
- Automatic meter counting, automatic shutdown, and photoelectric eye correction
- Compact structure with fast speed, high efficiency, simple operation, and stable performance
| Model | FM-320 | FM-420 |
|---|---|---|
| Die cutting speed | 70m/min | 70m/min |
| Working width | 0-320mm | 0-420mm |
| Maximum unwinding diameter | 500mm | 500mm |
| Maximum winding diameter | 480mm | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") | 178-470mm (7" - 18.5") |
| Machine size | 1.57m x 1.02m x 1.61m | 1.57m x 1.12m x 1.61m |
| Machine weight | 1200kgs | 1800kgs |
| Voltage | 220V 50HZ | 220V 50HZ |
- Slitting device
- One 3-inch unwinding air shaft
- Two 3-inch rewinding air shafts
- Counting/meter counter
- Two photoelectric eyes for deviation correction
- 8 round knives
- One magnetic powder brake, two clutches
Suitable for die-cutting and slitting of self-adhesive labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.
Our products are sold all over the world, you can rest assured.
