Modern Double Round Knife Die Cutting Machine for Adhesive Labels

Modern Double Round Knife Die Cutting Machine for Adhesive Labels

  • Highlight

    Double round die cutting machine

    ,

    Adhesive label cutting machine

    ,

    Modern label die cutter

  • Die Cutting Speed
    70m/min
  • Working Width
    0-420mm
  • Maximum Unwinding Diameter
    500mm
  • Maximum Winding Diameter
    480mm
  • Die Cut Length
    178-470mm(7" - 18,5")
  • Machine Size
    1.57mx1.02mx1.61m
  • Machine Weight
    1800kgs
  • Voltage
    220V 50HZ
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS, FSC,ISO
  • Model Number
    FM-320&FM-420
  • Minimum Order Quantity
    1
  • Price
    8500
  • Packaging Details
    Sea-Worthy Wooden Case
  • Delivery Time
    30-50 days
  • Payment Terms
    L/C, T/T

Modern Double Round Knife Die Cutting Machine for Adhesive Labels

Modern Double Round Knife Die Cutting Machine for Adhesive Labels
Key Specifications
Attribute Value
Die cutting speed 70m/min
Working width 0-420mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m
Machine weight 1800kgs
Voltage 220V 50HZ
Product Overview

This rotary die-cutting and slitting machine is specially customized for adhesive label materials, combining precision rotary die-cutting technology with synchronous processing of die-cutting, lamination (optional), and longitudinal cutting. The machine features automatic counting, photoelectric correction, and intelligent shutdown functions in a compact structure that delivers fast cutting speed, high accuracy, and strong stability.

Key Features
  • High-precision circular die-cutting system
  • Designed for blank self-adhesive labels
  • Simultaneous die cutting and slitting capability
  • Automatic meter counting, shutdown, and photoelectric eye correction
  • Compact structure with fast operation, high efficiency, and stable performance
Technical Specifications
Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm (7" - 18.5") 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m 1.57m x 1.12m x 1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ
Standard Configuration
  • Slitting device
  • One 3-inch unwinding air shaft and two 3-inch rewinding air shafts
  • Counting/meter counter
  • Two photoelectric eyes for deviation correction
  • 8 round knives
  • One magnetic powder brake and two clutches
Applications

Ideal for die-cutting and slitting of self-adhesive labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

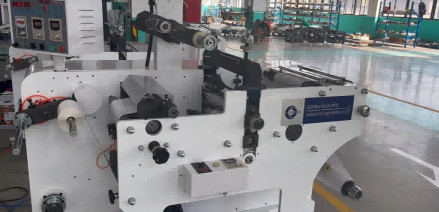

Product Images
