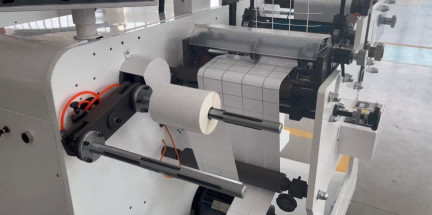

Automatic Wave Label Rotary Die Cutting Machine with Turret Rewind
-
Highlight
Automatic label die cutting machine
,Rotary die cutting machine
,Turret rewind label cutter
-
Die Cutting Speed70m/min
-
Working Width0-420mm
-
Maximum Unwinding Diameter500mm
-
Maximum Winding Diameter480mm
-
Die Cut Length178-470mm(7" - 18,5")
-
Machine Size1.57mx1.02mx1.61m
-
Machine Weight1800kgs
-
Voltage220V 50HZ
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM-320&FM-420
-
Minimum Order Quantity1
-
Price8500
-
Packaging DetailsSea-Worthy Wooden Case
-
Delivery Time30-50 days
-
Payment TermsL/C, T/T
Automatic Wave Label Rotary Die Cutting Machine with Turret Rewind
| Attribute | Value |
|---|---|
| Die cutting speed | 70m/min |
| Working width | 0-420mm |
| Maximum unwinding diameter | 500mm |
| Maximum winding diameter | 480mm |
| Die Cut Length | 178-470mm(7" - 18,5") |
| Machine size | 1.57mx1.02mx1.61m |
| Machine weight | 1800kgs |
| Voltage | 220V 50HZ |
Efficient rotary die-cutting and slitting machine, equipped with advanced rotary die-cutting system, suitable for integrated processing of die-cutting, laminating (optional) and longitudinal cutting of adhesive label materials. Built in automatic metering, photoconductive positive and shutdown control, compact design, smooth operation, simple operation and precise cutting effect.
- High-precision circular die-cutting system
- Suitable for blank self-adhesive labels
- Die cutting and slitting can be done at same time
- Automatic meter counting, automatic shutdown, photoelectric eye correction
- Compact structure, fast speed, high efficiency, simple operation and stable operation
| Model | FM-320 | FM-420 |
|---|---|---|
| Die cutting speed | 70m/min | 70m/min |
| Working width | 0-320mm | 0-420mm |
| Maximum unwinding diameter | 500mm | 500mm |
| Maximum winding diameter | 480mm | 480mm |
| Die Cut Length | 178-470mm(7" - 18,5") | 178-470mm(7" - 18,5") |
| Machine size | 1.57mx1.02mx1.61m | 1.57mx1.12mx1.61m |
| Machine weight | 1200kgs | 1800kgs |
| Voltage | 220V 50HZ | 220V 50HZ |
- Slitting device
- One 3-inch unwinding air shaft Two 3-inch rewinding air shafts
- Counting/meter counter
- Two photoelectric eyes for deviation correction
- 8 round knives
- One magnetic powder brake, two clutches
Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.
Our products are sold all over the world, you can rest assured.
