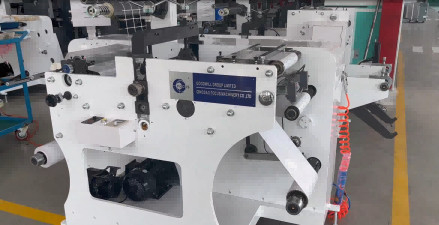

High-Precision Rotary Die Cutting Machine for Self-Adhesive Labels
-
Highlight
Rotary die cutting machine
,Precision label cutting machine
,Self-adhesive label cutter
-
Die Cutting Speed70m/min
-
Working Width0-420mm
-
Maximum Unwinding Diameter500mm
-
Maximum Winding Diameter480mm
-
Die Cut Length178-470mm(7" - 18,5")
-
Machine Size1.57mx1.02mx1.61m
-
Machine Weight1800kgs
-
Voltage220V 50HZ
-
Place of OriginChina
-
Brand NameFOCUS
-
CertificationSGS, FSC，ISO
-
Model NumberFM-320&FM-420
-
Minimum Order Quantity1
-
Price8500
-
Packaging DetailsSea-Worthy Wooden Case
-
Delivery Time30-50 days
-
Payment TermsL/C, T/T
High-Precision Rotary Die Cutting Machine for Self-Adhesive Labels
| Attribute | Value |
|---|---|
| Die cutting speed | 70m/min |
| Working width | 0-420mm |
| Maximum unwinding diameter | 500mm |
| Maximum winding diameter | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") |
| Machine size | 1.57m x 1.02m x 1.61m |
| Machine weight | 1800kgs |
| Voltage | 220V 50HZ |
This high-precision label die-cutting machine is designed specifically for the self-adhesive label industry, integrating die-cutting, slitting, and rewinding functions. The equipment adopts rotary die-cutting technology, which can achieve a cutting accuracy of ±0.1mm and support continuous die-cutting operations. Equipped with an intelligent correction system and touch screen control interface, it is easy to operate and has excellent stability.
- High-precision circular die-cutting system
- Designed for blank self-adhesive labels
- Die cutting and slitting can be done simultaneously
- Automatic meter counting, automatic shutdown, photoelectric eye correction
- Compact structure, fast speed, high efficiency, simple and stable operation
| Model | FM-320 | FM-420 |
|---|---|---|
| Die cutting speed | 70m/min | 70m/min |
| Working width | 0-320mm | 0-420mm |
| Maximum unwinding diameter | 500mm | 500mm |
| Maximum winding diameter | 480mm | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") | 178-470mm (7" - 18.5") |
| Machine size | 1.57m x 1.02m x 1.61m | 1.57m x 1.12m x 1.61m |
| Machine weight | 1200kgs | 1800kgs |
| Voltage | 220V 50HZ | 220V 50HZ |
- Slitting device
- One 3-inch unwinding air shaft
- Two 3-inch rewinding air shafts
- Counting/meter counter
- Two photoelectric eyes for deviation correction
- 8 round knives
- One magnetic powder brake, two clutches
Suitable for die-cutting and slitting of self-adhesive labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.
Our products are sold all over the world, you can rest assured.
