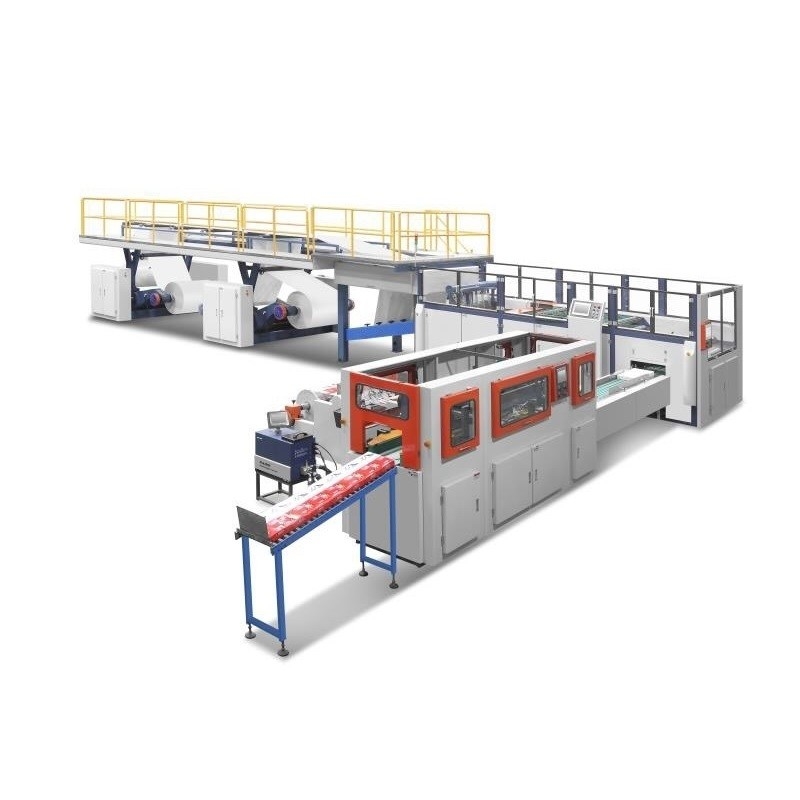

5rolls 5cuts A4-35 Model Hight Speed Copy Paper Roll Slititng Machine
This machine is designed for horizontal and vertical cutting paper rolling materials to A4, A3, A2,and other sizes etc .Equipment dimensions: length 20000 (mm) × width 2960 (mm) × height 2100 (mm); Paper grade: advanced copy paper, advanced writing paper, advanced double offset paper and other advanced papers. Paper weight range: 60-100g/m2×5 sheets; Paper cutting conditions: 1. The speed remains unchanged 2. The paper shaft cannot be broken 3. Qualified paper is required
Technical Data
| Main parameter |
| Working width: gross width: 1056mm; net width: 1050mm |
| Number of cuts: 5 rolls and 5 cuts—A4 short side 210mm |
| Paper shaft diameter: max1200mm; min400mm |
| Paper core diameter: 3″(76.2mm) and 6″(152.4mm) |
| Paper grade: advanced copy paper, advanced writing paper, advanced double offset paper and other advanced papers. Paper weight range: 60-100g/m2×5 sheets |
| Cutting length: The cutting machine is designed to process A4 paper, and its cutting length is 297mm on the long side of A4 paper. |
| Ream paper count: 0-500 pages, |
| Ream paper height (max) 65mm |
| Design speed: max 375m/min |
| 775 times/min |
| Weekly discharge of paper: 8/min |
| Production speed: 200-260m/min (depending on different paper) |
| Cutting times: 650 times/min |
| Ream paper discharge weekly: 6-7 times/min (28-35 reams/min) |
| Paper cutting load: (max) 400g/m2 (4x100g/m2) |
| Paper cutting accuracy: allowable error ±0.2mm |
| Paper cutting conditions: 1. The speed remains unchanged 2. The paper shaft cannot be broken 3. Qualified paper is required |
| Drive: AC variable frequency stepless speed regulation |
| Main power supply: 3-phase 4-wire 380V 50HZ |
| Control voltage: 220V AC/22V DC |
| Installed capacity: (approm) 25KW |
| Compressed air consumption: (approm) 300NL/min |
| Compressed air pressure: 0.6-0.8 mpa |
| Equipment dimensions: length 20000 (mm) × width 2960 (mm) × height 2100 (mm) |
| Total weight: 19T |
Packaging Details
The package is wooden box normally.
