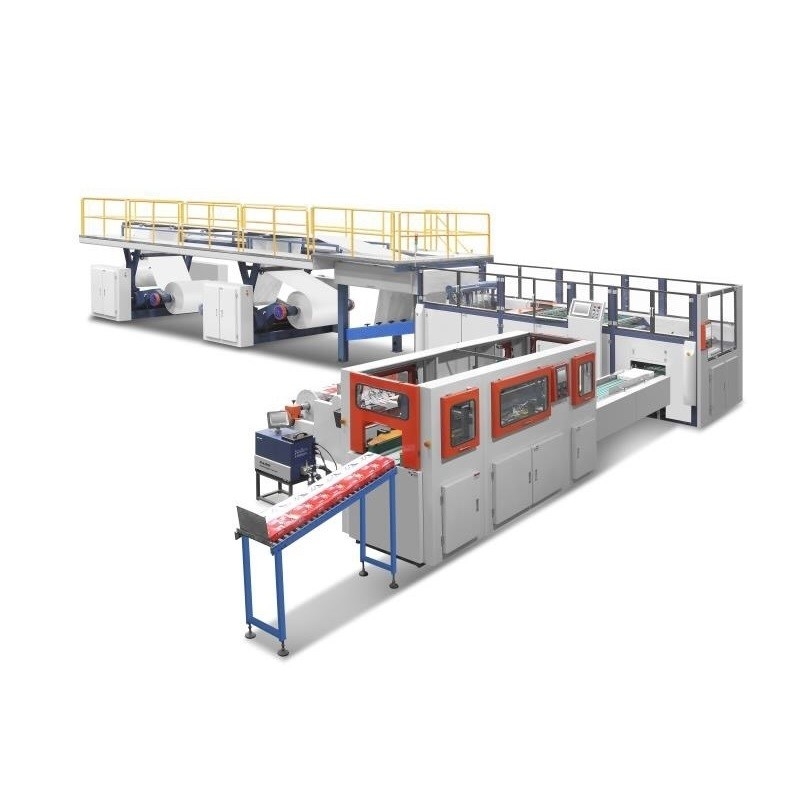

400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine

400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine

  • High Light

    400mm paper roll packing machine

    ,

    Automatic A4 paper roll packing machine

    ,

    25KW thermal paper roll slitting machine

  • Number Of Cuts
    5 Rolls And 5 Cuts—A4 Short Side 210mm
  • Paper Shaft Diameter
    Min400mm; Max1200mm;
  • Paper Core Diameter
    3″(76.2mm) And 6″(152.4mm)
  • Cutting Length
    The Cutting Machine Is Designed To Process A4 Paper, And Its Cutting Length Is 297mm On The Long Side Of A4 Paper
  • Paper Grade
    Advanced Copy Paper, Advanced Writing Paper, Advanced Double Offset Paper And Other Advanced Papers. Paper Weight Range: 60-100g/m2×5 Sheets
  • Ream Paper Count
    0-500 Pages
  • Ream Paper Height
    (max) 65mm
  • Design Speed
    Max 375m/min
  • Production Speed
    200-260m/min (depending On Different Paper)
  • Cutting Times
    650 Times/min
  • Ream Paper Discharge Weekly
    6 Times/min (28-35 Reams/min)
  • Paper Cutting Load
    (max) 400g/m2 (4x100g/m2)
  • Paper Cutting Accuracy
    Allowable Error ±0.2mm
  • Paper Cutting Conditions
    1. The Speed Remains Unchanged 2. The Paper Shaft Cannot Be Broken 3. Qualified Paper Is Required
  • Drive
    AC Variable Frequency Stepless Speed Regulation
  • Main Power Supply
    3-phase 4-wire 380V 50HZ
  • Control Voltage
    220V AC/22V DC
  • Installed Capacity
    (approm) 25KW
  • Compressed Air Consumption
    (approm) 300NL/min
  • Compressed Air Pressure
    0.6-0.8 Mpa
  • Equipment Dimensions
    Length 20000 (mm) × Width 2960 (mm) × Height 2100 (mm)
  • Total Weight
    18T
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS
  • Model Number
    A4-35 model
  • Minimum Order Quantity
    1 set
  • Price
    1600000 usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    20-50 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    1 sets per month

400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine

Automatic A4-35 Model Hight Speed Copy Paper Roll Slititng Machine Packing machine



1. Usage:

This machine is specialist for horizontal and vertical cutting paper rolling materials to A4, A3, A2,and other sizes etc .

2. Performance and Characteristics

1) Adopts pneumatic automatic materials loading system with much easy operation and convenience.

2) Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal

cutting and vertical cutting at one time

3) It adopts servo motor for controlling constant-length cutting.

4) It adopts PLC control, contact screen operation.

5) It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas

together, it has the function of easy operation, high precision, good stability, low noise.

6) This machine has the function of the frequency converter timing device, automatic counting, stop working

by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste.

7) It has the functions of high-precision of cutting, high speed,etc. pneumatic structure combined with

computer control be adopted for transmission section , making it become much more steady operation.

8) It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system.





Technical Data

Main parameter
Working width: gross width: 1056mm; net width: 1050mm
Number of cuts: 5 rolls and 5 cuts—A4 short side 210mm
Paper shaft diameter: max1200mm; min400mm
Paper core diameter: 3″(76.2mm) and 6″(152.4mm)
Paper grade: advanced copy paper, advanced writing paper, advanced double offset paper and other advanced papers. Paper weight range: 60-100g/m2×5 sheets
Cutting length: The cutting machine is designed to process A4 paper, and its cutting length is 297mm on the long side of A4 paper.
Ream paper count: 0-500 pages,
Ream paper height (max) 65mm
Design speed: max 375m/min
775 times/min
Weekly discharge of paper: 8/min
Production speed: 200-260m/min (depending on different paper)
Cutting times: 650 times/min
Ream paper discharge weekly: 6-7 times/min (28-35 reams/min)
Paper cutting load: (max) 400g/m2 (4x100g/m2)
Paper cutting accuracy: allowable error ±0.2mm
Paper cutting conditions: 1. The speed remains unchanged 2. The paper shaft cannot be broken 3. Qualified paper is required
Drive: AC variable frequency stepless speed regulation
Main power supply: 3-phase 4-wire 380V 50HZ
Control voltage: 220V AC/22V DC
Installed capacity: (approm) 25KW
Compressed air consumption: (approm) 300NL/min
Compressed air pressure: 0.6-0.8 mpa
Equipment dimensions: length 20000 (mm) × width 2960 (mm) × height 2100 (mm)
Total weight: 19T







Online packing machine



Model DTDP-A4-35
Production efficiency 28-35(package/min)
Automatic cross-cutting and Feeding function for roll wrapping paper 28-35(sheets/min)
Packing specifications 210×297×50mm (according to the height of 500 sheets of A4 copy paper)
Outsourcing paper specifications (width × length) 550-560mm×386mm
Copy the original paper into the packaging function Photoelectric eye control, manipulator advancement
Outsourcing paper cutting function Photoelectric eye alignment, cross-cutting up and down
Outsourcing paper conveying function Air feed
Glue function Middle spray glue, both sides spray glue
Bottom folding function Suction tightly, paste
Folding function Front and back folding, top and bottom folding
Integer function Belt compression shaping
Packing six sides ±1.5mm
Packing tight ±1.5mm
Control voltage 220V AC/24V DC
Power supply 380V three-phase four-wire
Motor Power 10.5kw
Glue power 3.7 kw
Compressed air 0.6-0.8mpa
Dimensions 3400×3300×1600mm
Weight 4T
Scope of application The packaging material is a hexahedron wrapped with color-printed adhesive paper




MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE



Packaging Details


The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request

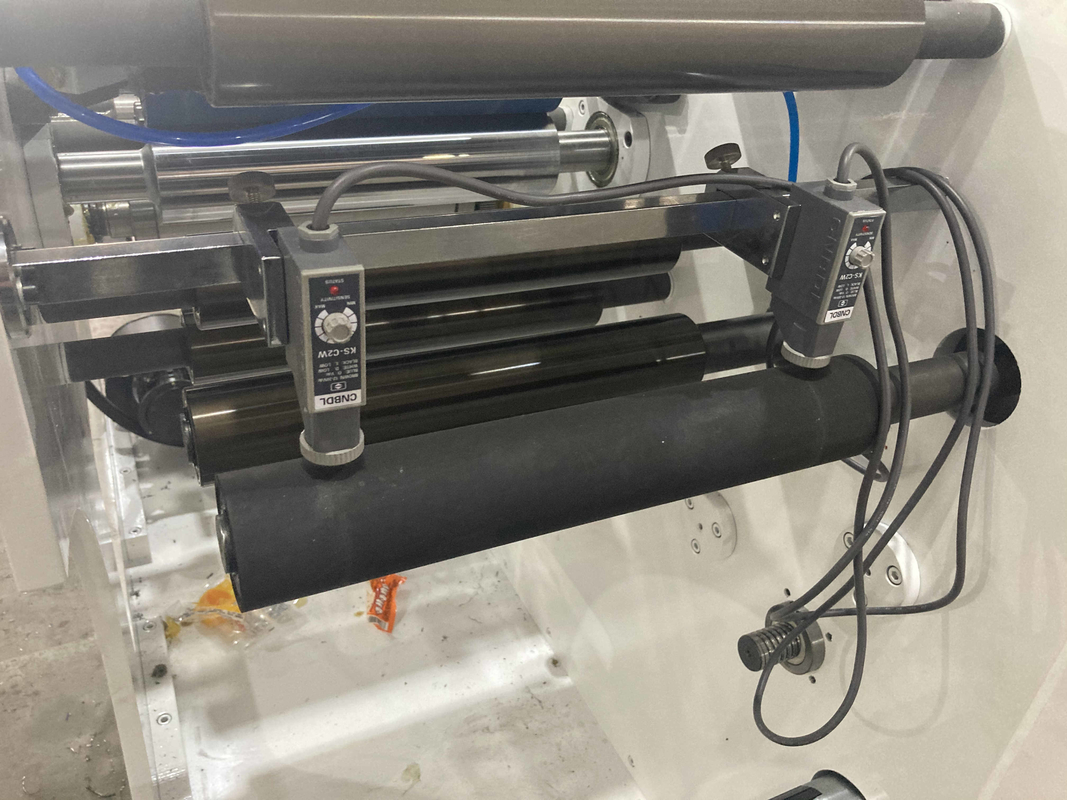

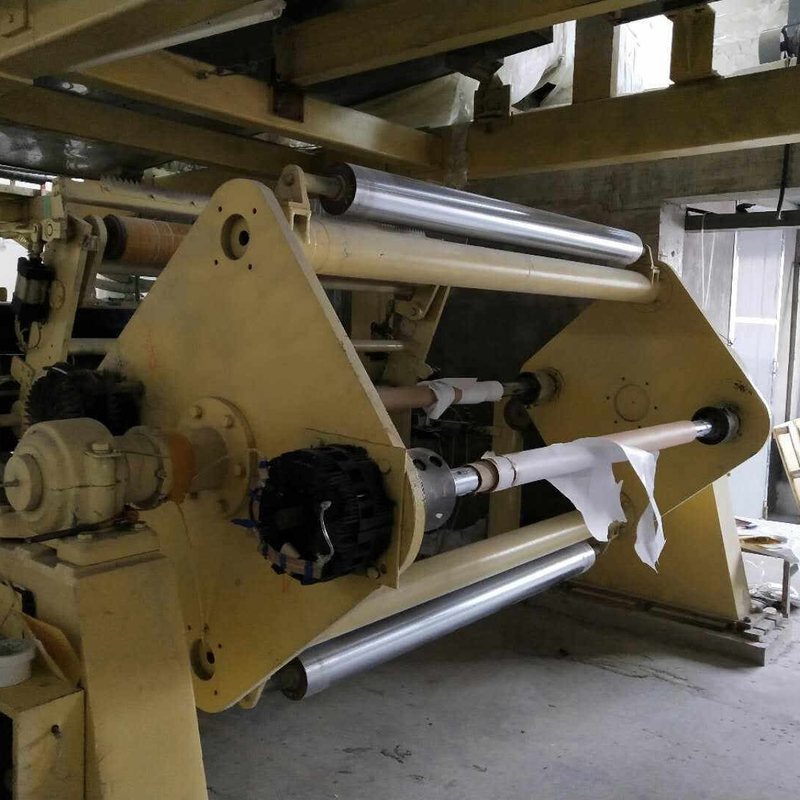

400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 0400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 1

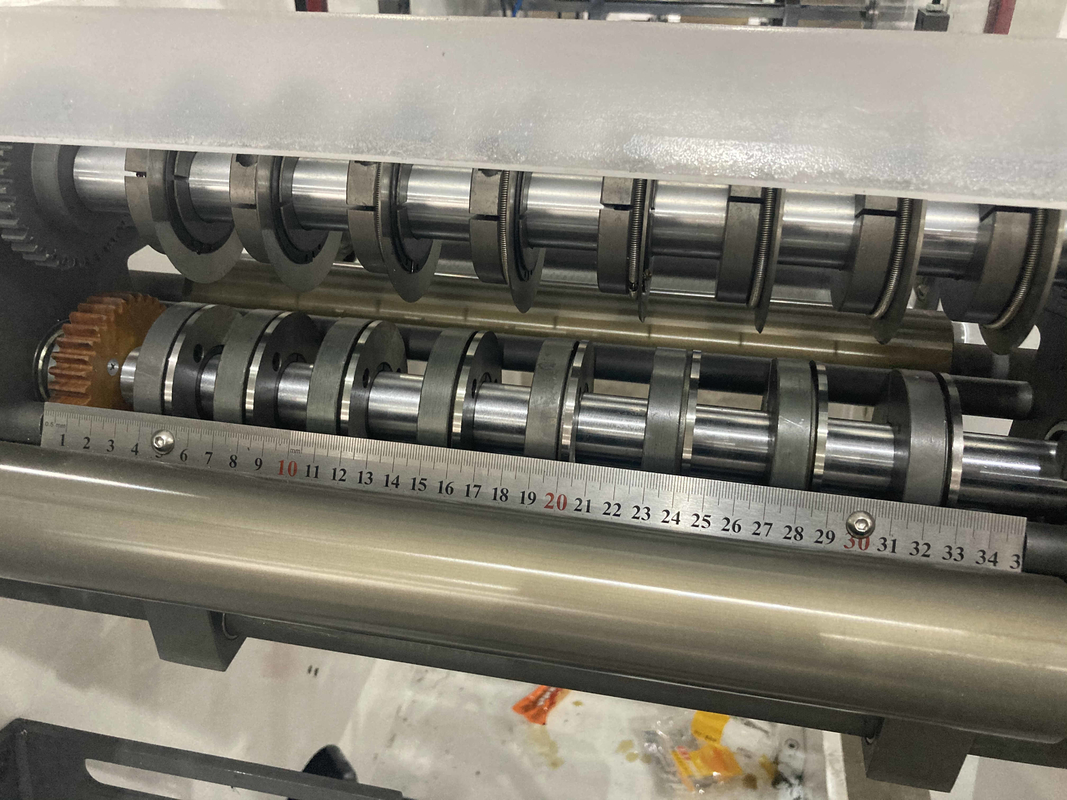

400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 2




WHY CHOOSE US



This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. It becomes more and more popular all over the world.



1.) Professional Siemens quality control system

2.) Simple operation

3.) High degree of automation

4.) Turn key projects

5.) More than 20 years experience

6) Double working station

7) Super Calendar

8) High capacity, low consumption

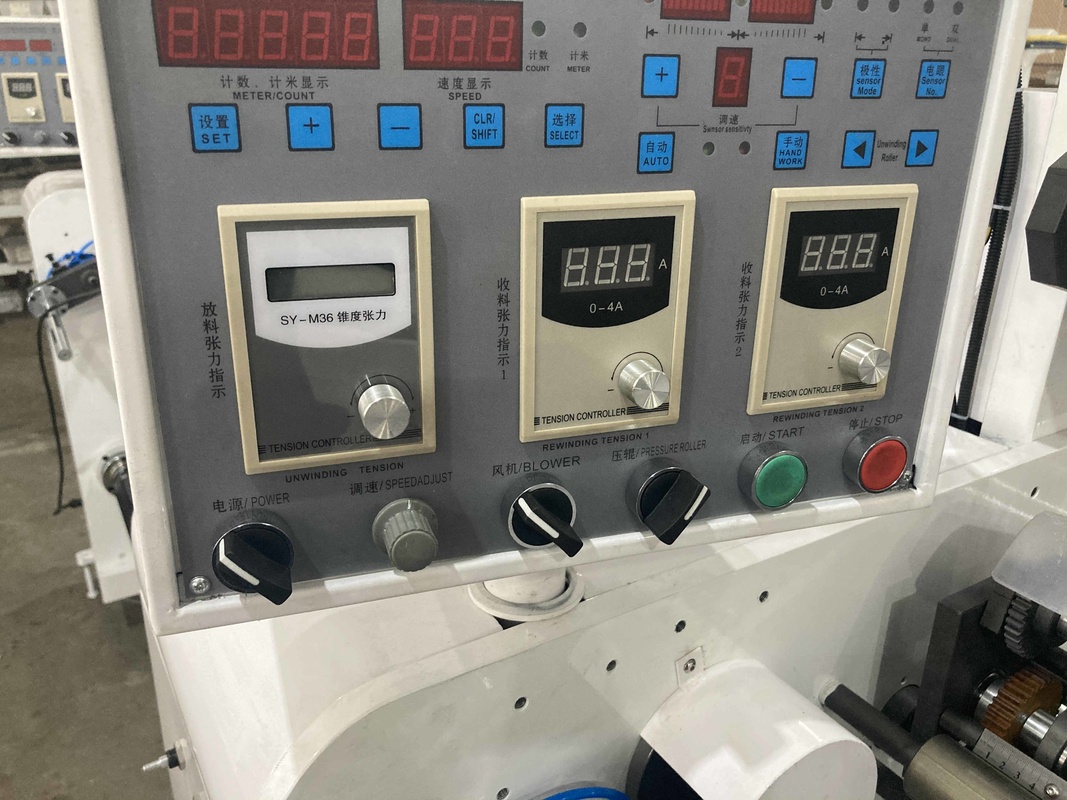

400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 3


400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 4

COMPANY INFORMATION
400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 5

SUCCESSFUL MACHINE PROJECTS

400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 6400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 7



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 8



400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 9

CUSTOMER FEEDBACK

400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 10
CERTIFICATE
400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 11

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
400mm Automatic A4 Thermal Paper Roll Packing Slitting Machine 12


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
