12mm 130mm Paper Converting Machine 6in Core Paper Straw

12mm 130mm Paper Converting Machine 6in Core Paper Straw

  • High Light

    12mm Paper Converting Machine

    ,

    130mm Paper Converting Machine

    ,

    6in core paper straw machines

  • Material
    Food Grade Paper、food Grade Glue
  • Inside Diameter
    Ø 5 Mm – Ø 12mm
  • Thickness
    0.25 –1mm
  • Speed
    1 – 50 M/min, Different Tube Size And Material Quality Lead To Different Speed
  • Cutting Length
    130 Mm – 780 Mm
  • Cutting Knife
    7set
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS
  • Model Number
    LJ-2DXG
  • Minimum Order Quantity
    1 set
  • Price
    50000 usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    20-50 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    5 sets per month

12mm 130mm Paper Converting Machine 6in Core Paper Straw

FOCUS High Speed Numerical Control Production Line For Paper Core Straw Making



Main parts material and instruction

1. Moulds made by From alloy steel;

2. Winding belt is made by durable film base belt;

3. All roller wheel s are made of seamless steel pipe, surface painting with hardening treatment;



Technical Data



Adopt microcomputer set various parameters; Touch screen is convenient adjustment Data.

Adopt Man-machine interface and special operating system, operation more convenient.

Automatic-alarm and machine-stop when bottom-ply is broken; Avoiding glue adheres to mandrel and causing difficult to clear away;

Make some SZ paper reel stand Connected Structures,more stability and reduce the area.

Adopt GT roller glue unit,low request for paper quality, Economic Space Occupation,and can adopt double sides gluing or single side gluing according the paper tube’s compression resistance.

Mandril fixed model adopt three jaw chuck can clamping fastly;

Servo motor controls the moving speed of in-line cutting part, synchronous with

tube production speed;

HMC multi knives cutting unit, with double circular knives cut 6pices small paper tubes by one time,and ensure the length precision of paper tubes,without second amendment.

Equip one conveyor after cutting unit,transport the paper tubes successfully.





Main parameter
Working width: gross width: 1056mm; net width: 1050mm
Number of cuts: 5 rolls and 5 cuts—A4 short side 210mm
Paper shaft diameter: max1200mm; min400mm
Paper core diameter: 3″(76.2mm) and 6″(152.4mm)
Paper grade: advanced copy paper, advanced writing paper, advanced double offset paper and other advanced papers. Paper weight range: 60-100g/m2×5 sheets
Cutting length: The cutting machine is designed to process A4 paper, and its cutting length is 297mm on the long side of A4 paper.
Ream paper count: 0-500 pages,
Ream paper height (max) 65mm
Design speed: max 375m/min
775 times/min
Weekly discharge of paper: 8/min
Production speed: 200-260m/min (depending on different paper)
Cutting times: 650 times/min
Ream paper discharge weekly: 6-7 times/min (28-35 reams/min)
Paper cutting load: (max) 400g/m2 (4x100g/m2)
Paper cutting accuracy: allowable error ±0.2mm
Paper cutting conditions: 1. The speed remains unchanged 2. The paper shaft cannot be broken 3. Qualified paper is required
Drive: AC variable frequency stepless speed regulation
Main power supply: 3-phase 4-wire 380V 50HZ
Control voltage: 220V AC/22V DC
Installed capacity: (approm) 25KW
Compressed air consumption: (approm) 300NL/min
Compressed air pressure: 0.6-0.8 mpa
Equipment dimensions: length 20000 (mm) × width 2960 (mm) × height 2100 (mm)
Total weight: 19T



Packaging Details


The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request

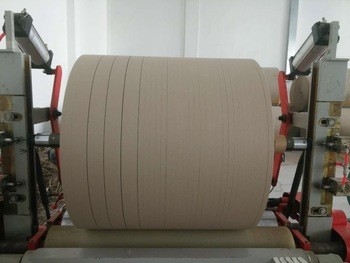

12mm 130mm Paper Converting Machine 6in Core Paper Straw 012mm 130mm Paper Converting Machine 6in Core Paper Straw 1

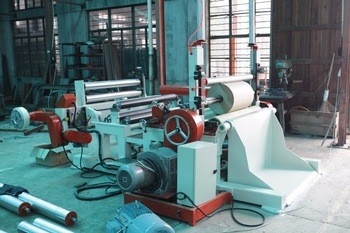

12mm 130mm Paper Converting Machine 6in Core Paper Straw 2




WHY CHOOSE US



This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. It becomes more and more popular all over the world.



1.) Professional Siemens quality control system

2.) Simple operation

3.) High degree of automation

4.) Turn key projects

5.) More than 20 years experience

6) Double working station

7) Super Calendar

8) High capacity, low consumption

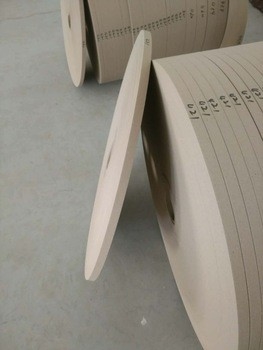

12mm 130mm Paper Converting Machine 6in Core Paper Straw 3

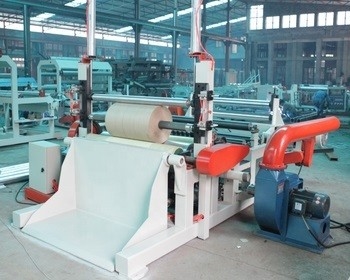

12mm 130mm Paper Converting Machine 6in Core Paper Straw 4

COMPANY INFORMATION
12mm 130mm Paper Converting Machine 6in Core Paper Straw 5

SUCCESSFUL MACHINE PROJECTS

12mm 130mm Paper Converting Machine 6in Core Paper Straw 612mm 130mm Paper Converting Machine 6in Core Paper Straw 7



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

12mm 130mm Paper Converting Machine 6in Core Paper Straw 8



12mm 130mm Paper Converting Machine 6in Core Paper Straw 9

CUSTOMER FEEDBACK

12mm 130mm Paper Converting Machine 6in Core Paper Straw 10
CERTIFICATE
12mm 130mm Paper Converting Machine 6in Core Paper Straw 11

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
12mm 130mm Paper Converting Machine 6in Core Paper Straw 12


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
