Hight Speed Copy Paper Roll Slititng Machine Cutting Machine With On-Line Boxing And Forming Machine
1.Usage:
This machine is specialist for horizontal and vertical cutting paper rolling materials to A4, A3, A2,and other sizes etc .
2.Performance and Characteristics
1)Adopts pneumatic automatic materials loading system with much easy operation and convenience.
2)Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal
cutting and vertical cutting at one time
3)It adopts servo motor for controlling constant-length cutting.
4)It adopts PLC control, contact screen operation.
5)It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas
together, it has the function of easy operation, high precision, good stability, low noise.
6)This machine has the function of the frequency converter timing device, automatic counting, stop working
by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste.
7)It has the functions of high-precision of cutting, high speed,etc. pneumatic structure combined with
computer control be adopted for transmission section , making it become much more steady operation.
8)It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system.
Technical Data
| Main parameter |
| Working width: gross width: 1056mm; net width: 1050mm |
| Number of cuts: 5 rolls and 5 cuts—A4 short side 210mm |
| Paper shaft diameter: max1200mm; min400mm |
| Paper core diameter: 3″(76.2mm) and 6″(152.4mm) |
| Paper grade: advanced copy paper, advanced writing paper, advanced double offset paper and other advanced papers. Paper weight range: 60-100g/m2×5 sheets |
| Cutting length: The cutting machine is designed to process A4 paper, and its cutting length is 297mm on the long side of A4 paper. |
| Ream paper count: 0-500 pages, |
| Ream paper height (max) 65mm |
| Design speed: max 375m/min |
| 775 times/min |
| Weekly discharge of paper: 8/min |
| Production speed: 200-260m/min (depending on different paper) |
| Cutting times: 650 times/min |
| Ream paper discharge weekly: 6-7 times/min (28-35 reams/min) |
| Paper cutting load: (max) 400g/m2 (4x100g/m2) |
| Paper cutting accuracy: allowable error ±0.2mm |
| Paper cutting conditions: 1. The speed remains unchanged 2. The paper shaft cannot be broken 3. Qualified paper is required |
| Drive: AC variable frequency stepless speed regulation |
| Main power supply: 3-phase 4-wire 380V 50HZ |
| Control voltage: 220V AC/22V DC |
| Installed capacity: (approm) 25KW |
| Compressed air consumption: (approm) 300NL/min |
| Compressed air pressure: 0.6-0.8 mpa |
| Equipment dimensions: length 20000 (mm) × width 2960 (mm) × height 2100 (mm) |
| Total weight: 19T |
On-line boxing and forming machine
| Cardboard grade: corrugated board | |||||||
| Design speed: 8-12 boxes/minute | |||||||
| Running speed: 7-8 boxes/minute (5 packages per box calculation) | |||||||
| Worktable height: 700mm-1200 mm | |||||||
| Carton specifications: 395< W <550mm | |||||||
| The highest paper stack: 290mm | |||||||
| Packing number: 4, 5, 8, 10 packs | |||||||
| Forming accuracy tolerance: ±2 (mm) | |||||||
Allowable error of forming slope: ±3 (mm) |

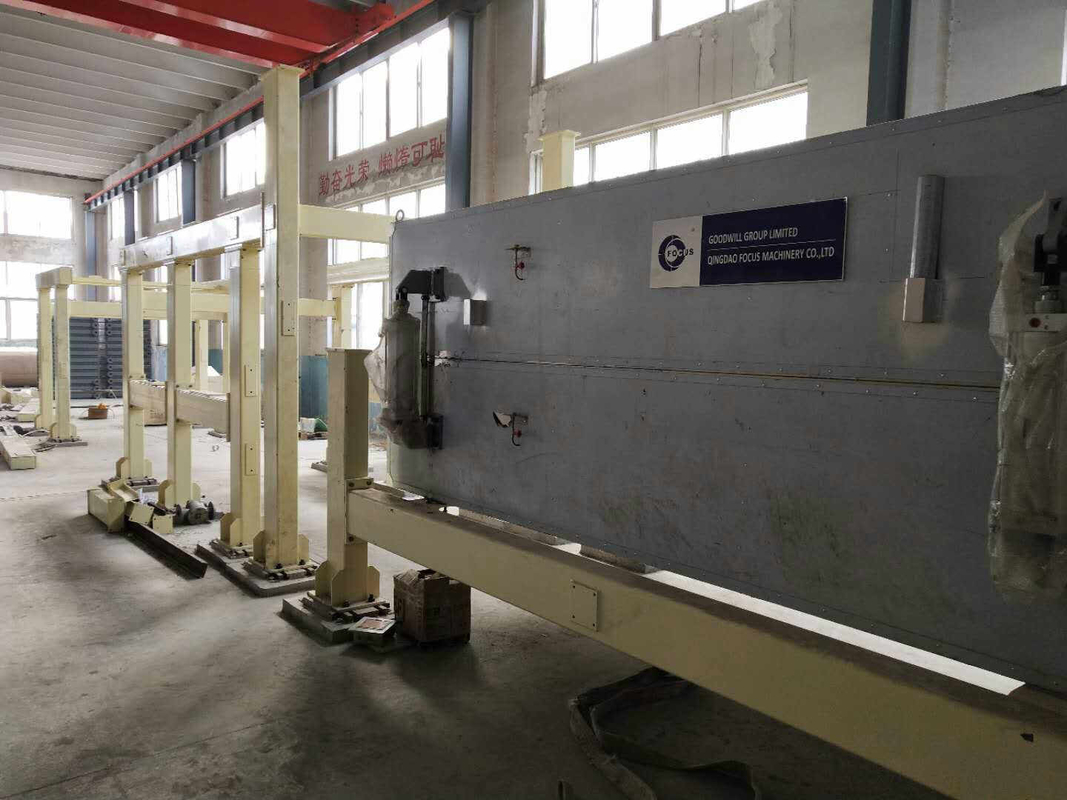

MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE
