1200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine

1200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine

  • High Light

    1200mm paper roll slitter rewinder

    ,

    NCR paper roll slitter rewinder

    ,

    50HZ paper slitting rewinding machine

  • Material To Be Slit
    Carbonless Paper Grades 38-250g/m2
  • Working Width
    ≤1810mm
  • Width Of Roll Face
    1910mm
  • Unwind Dia
    ≤1200 Mm
  • Rewind Dia
    ≤1200 Mm
  • Drive Speed
    ≤428m/min
  • Operating Speed Max ≤400m/min
    Depending On Quality Of Web To Be Slit
  • Slitting Width
    150mm Min – ≤1200mm
  • Slitting Knife
    Shaft Mounted Rotary Knife
  • Unwind Type
    Single Position(with Automatic Web Guide)
  • Rewinding Stations
    2
  • Slit Rolls Dishing
    ≤±0.5 Mm
  • Rewinding Type
    Center Or Surface Winding
  • Power
    380V, 50HZ, 3PH
  • Air
    0.6Mpa MIN, CLEAN, DRY AND OIL FREE
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS
  • Model Number
    FM1850
  • Minimum Order Quantity
    1 set
  • Price
    1500000 usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    20-50 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    1 sets per month

1200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine

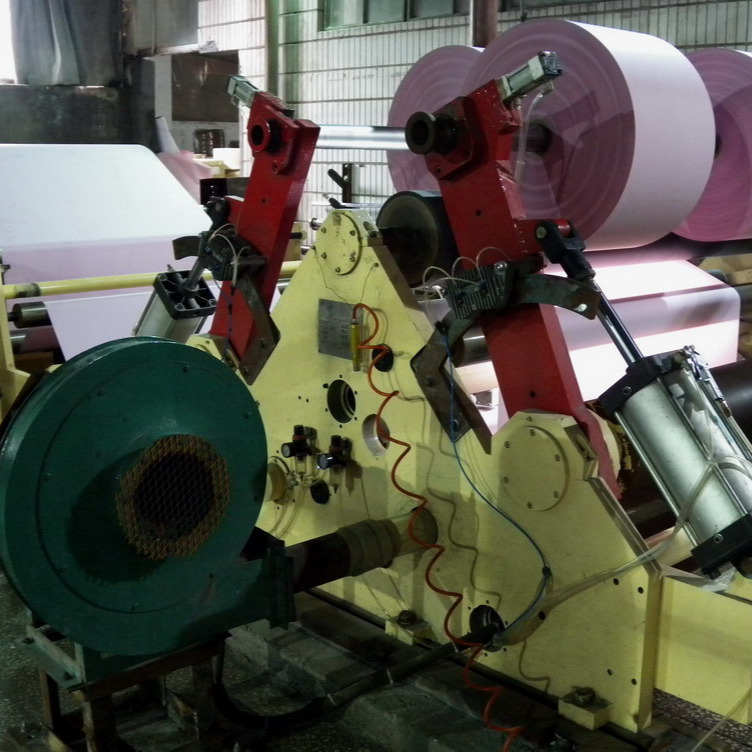

FOCUS FM1850 High Speed 1200mm Max NCR Slitter Rewinder Carbonless Paper Slitter Rewinder





Description of Main Machine Parts



1. Unwind parts
1) Unwind type
Single position with automatic web guide; Unwind shaft: 3” imported air shafts, Qty: 2 pcs; Aluminium Web guide roll made in Ningbo China; Imported Web guide with photo electric sensor, local control box for better jumbo roll centering;

2) Unwind tension control
Use pneumatic brake from Italian RE,SMC E/A converter from Japan, tension sensor and tension controller from Mitsubishi Japan, these together makes closed loop tension control;
Brake size: 1520 N.M, Qty: 1 set.

2. Main Machine parts
1) These components include bottom plate, side walls, the backing roll, main lead roll/rider roll mechanism and drive parts.

2) The web roll, spreader roll, and guide roll, are made of aluminum alloy from Ningbo China dia.120mm, where bigger wrap angle is needed, the roll diameter is 150mm

3) The “S” lead roll is pattern grooved and driven from the main motor through timing belt, where as the backing roll is not driven.

Both the “S” lead roll and the backing roll are PU covered. By choosing the right hardness of the PU cover it is possible to slit CFB paper on this machine without showing any color/imaging.

The Diameter of the backing roll is 270mm.

The backing roll is equipped with a rubber covered rider roll. The function of the rider roll is to hold the paper lead in place during machine stop or threading and to facilitate better threading. The roll is loaded by pneumatic cylinders.

4) Slitting Knife
These components include top and bottom knife shafts, drive gearing, manual knife setting device, top and bottom knives.

The top knife shaft may be axially micro-adjusted by manual knife setting device for engaging the top and bottom knives. Material for top knife is high speed steel and for bottom knife is tool steel. 5 pcs each of top and bottom knives are included.

5) The main motor is inverter controlled three-phase AC motor (11kW-6P) on which is installed Koyo encoder, and the inverter is from YASKAWA Japan. The main motor drives the main lead roll via timing belt.

6) All rolls (driven or non driven rolls, or rubber covered rolls) have been dynamically balance tested.

7) Trim removal by suction blower, blower motor:3 KW

3. Rewind parts
1) Rewinding:
In winding terms, the winding is called "center rewinding" if Rewind shafts are driven. It is “surface winding” if the re-wound paper roll is in contact with the machine roller and the winding is achieved through the friction force.

On the proposed “Center Surface slitter rewinder” it is possible to apply both the "center rewinding" and the "center surface rewinding" techniques.

2) Rewind shafts: 3”imported air shafts, 2 pcs, max load per airshaft is 1500kg.

3) Rewind motors (18.5KW-6P): 2 inverter controlled three-phase AC motors with Koyo encoder, YASKAWA inverter, each rewind shaft is driven from the timing belt by its own motor.

The contact pressure between the machine roller and the rewound paper roll is controlled by means of a P/E proportional valve. The winding tension is taper- controlled, and additionally the contact pressure is proportionally controlled and can be maintained constant irrespective of rewound paper roll diameter.

4) Length count
When the rewind length is getting close to set value, machine will slow down and stop automatically at set length. Reel diameter is calculated and displayed on screen.

5) Different Taper factor for different paper grades for meeting the printing requirement.

6) Rewind shaft stabilization brakes for stabilizing the rewind rolls.

7) Rewound paper rolls are off-loaded from the rewinding stations by an overhead crane to be supplied by the customer.





1200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine 0

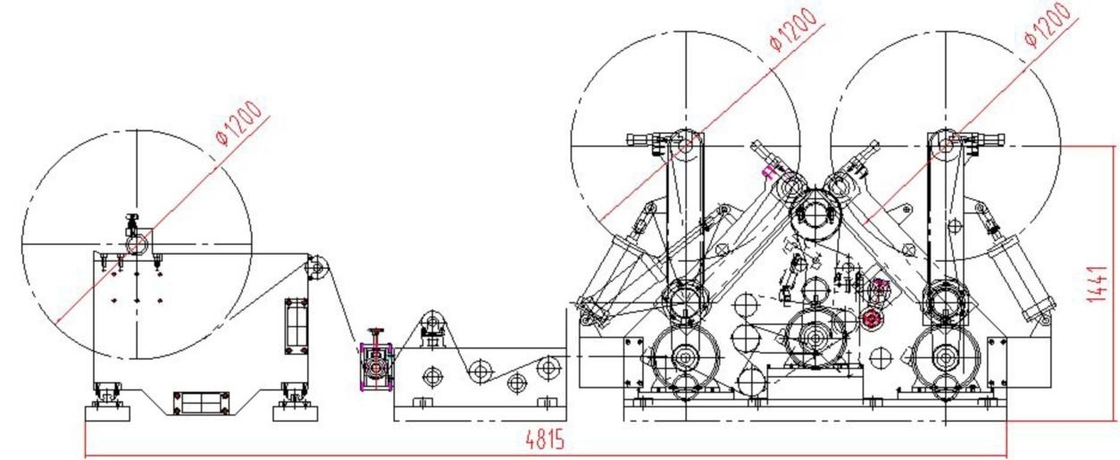

Technical Data

1200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine 1









1200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine 21200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine 3





1200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine 4




1200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine 5
1200mm NCR Paper Roll Slitter Rewinder Carbonless Paper Slitting Rewinding Machine 6
