900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting

900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting

  • High Light

    900mm Paper Converting Machines

    ,

    POS ATM Paper Converting Machine 900mm

    ,

    200m/min thermal paper roll cutting machine

  • Type
    Automatic
  • Product Name
    Slitting Rewinder
  • Size
    1800*1650*1450
  • Weight
    1.5 Tons
  • Application
    ATM Roll, Receipt Roll, Cash Roll
  • Warranty
    1 Year
  • Voltage
    380V, 220V
  • Speed
    200m/min
  • Function
    Paper Roll Slitting
  • Rewind Diameter
    160MM
  • Unwind Diameter
    1000mm
  • Power
    2.2KW
  • After-sales Service
    Engineers Available
  • Place of Origin
    China
  • Brand Name
    FOCUS
  • Certification
    SGS
  • Model Number
    800mm
  • Minimum Order Quantity
    1 set
  • Price
    16000usd per set
  • Packaging Details
    wooden box
  • Delivery Time
    20-30 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 sets per month

900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting

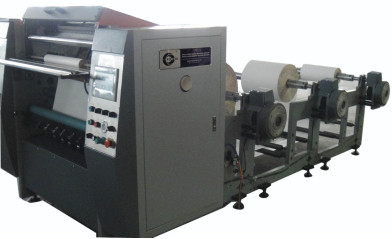

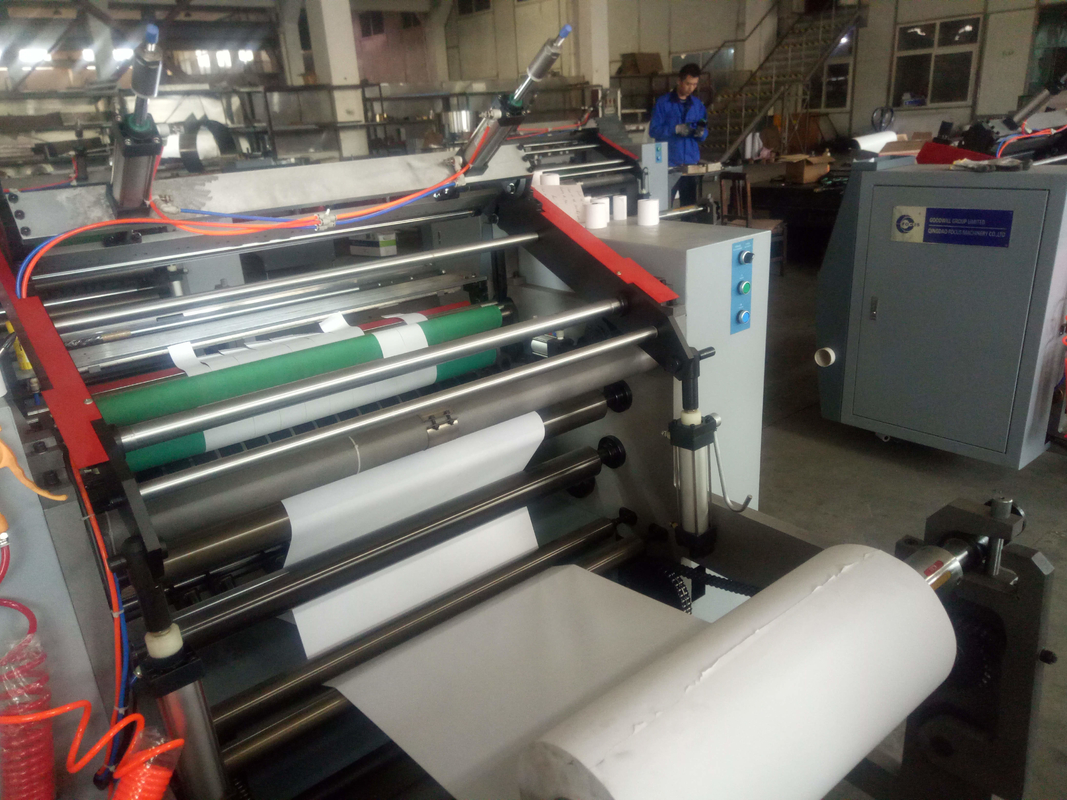

900mm Automatic POS ATM ROLL THERMAL PAPER Slitting Machine



DESCRIPTION



FOCUS brand Thermal paper slitting machine and printing machine is one of the advanced equipment used for slitting and printing thermal paper, cash register paper, ATM Paper and other paper less than 250gsm. It is flexo printing and slitting, automatic paper-cutting, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency conversion speed regulation and full pneumatic operation, accurate cutting, good printing effect and reliable performance.



Cash register paper slitting machine, automatic paper loading and unloading, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency conversion speed regulation and full pneumatic operation, with compact structure and adjustable paper roll tension. It has the advantages of accurate cutting, reliable performance and simple operation. It is suitable for cashier paper, fax paper and ticket slitting, etc. The number of meters to be slit only needs to be set directly on the touch screen.



Technical features:
1. Fast speed, neat slitting end face
2. Brand automatic tension system control, 10kg magnetic powder brake, stable operation
3. Automatic marking device
4. Automatic meter counting, with coded counter, high meter accuracy
5. Imported Siemens complete electrical control system
6. Inflatable shaft and flattening roller to ensure no paper bite
7. Waste air supply and discharge
8. Stepless frequency conversion speed regulation, convenient and flexible
Note: Due to the different reel specifications, the winding diameter is different.





Technical Data



Items

Parameters

Max. Parent Web Width

900mm

Max. Parent Web Diameter

1000mm

Max. Rewinding Diameter

180mm

Min. Slitting Width

30mm

Jumbo Roll Core Diameter

76mm

Core Shaft Diameter

ф8-ф50mm

Thickness Range

50-250gsm

Max. Machine Speed

0-120m/min

Air Pressure

0.6Mpa

Frequency Inverter Motor

380V/50HZ/2.2KW

Overall dimension

2500*1600*1600mm

Weight

1500kg

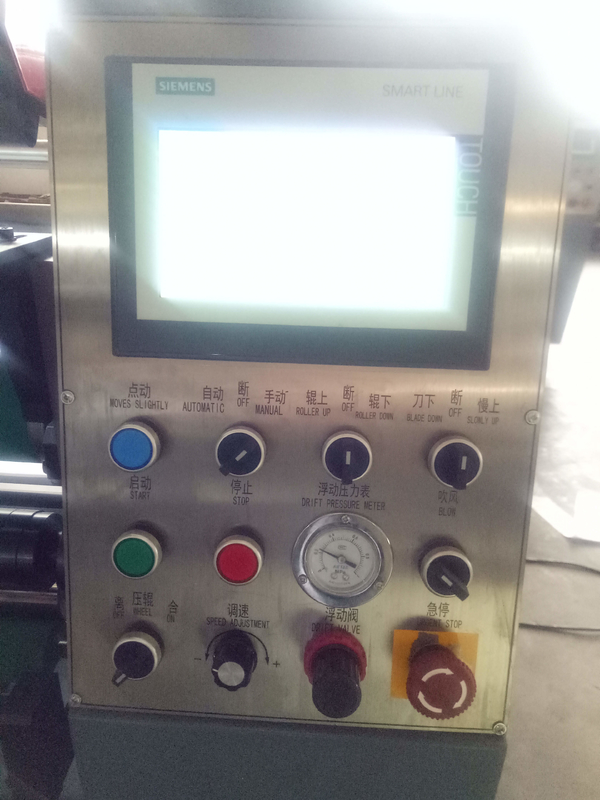

Adopting surface rewinding system and SIEMENS PLC and touch screen automatic control system. You only need to input the material roll meter, then PLC will give a proper parameters for machine running automatically. All the parameters are displayed on the monitor.



900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 0900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 1900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 2









APPLICATION

Thermal Paper POS Roll

Thermal Paper ATM Roll

900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 3



900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 4


900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 5



MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE



Packaging Details


The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request



900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 6900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 7





900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 8




WHY CHOOSE US



This machine has the features of simple operation and high degree of automation. All parameters are adjusted to the best condition before leaving the factory. The only thing you need to do is to input the data of speed and tension, then the whole machine can be automatically and simultaneously controlled. It becomes more and more popular all over the world.



1.) Professional Siemens quality control system

2.) Simple operation

3.) High degree of automation

4.) Turn key projects

5.) More than 20 years experience

6) Double working station

7) Super Calendar

8) High capacity, low consumption





900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 9


900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 10

COMPANY INFORMATION
900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 11

SUCCESSFUL MACHINE PROJECTS

900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 12900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 13



THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 14



900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 15

CUSTOMER FEEDBACK

900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 16
CERTIFICATE
900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 17

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
900mm POS ATM Paper Converting Machine 200m/Min Thermal Paper Roll Cutting 18


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
